Quick Start Guide

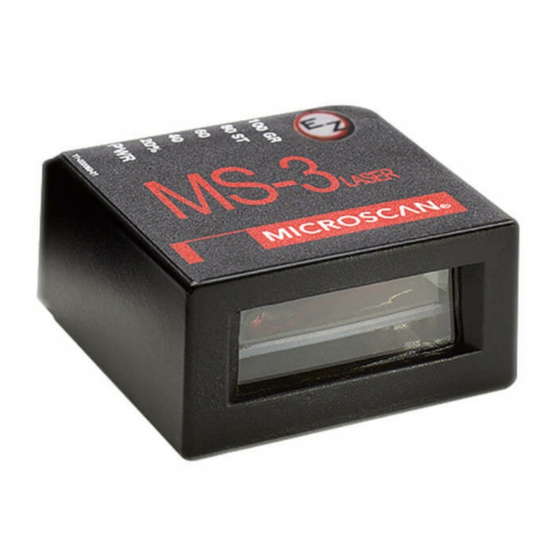

MS-3 Laser Scanner
This guide is designed to get your scanner up and running
quickly. When connected to a host computer with Windows™
operating system (2000 or above), you can use ESP (Easy Setup
Program) to configure and control your MS-3 Laser Scanner. In
addition to ESP, you can send commands to your scanner by
serial command and by the scanners's embedded menus.
For a full explanation of the MS-3's commands and features,
refer to the Help section of ESP or contact your Microscan sales
representative for the MS-3 Laser Scanner User's Manual,
available in digital and print formats.
P/N 83-210027-04 Rev A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Microscan MS-3

Summary of Contents for Microscan MS-3

  • Page 1: Quick Start Guide

    For a full explanation of the MS-3’s commands and features, refer to the Help section of ESP or contact your Microscan sales representative for the MS-3 Laser Scanner User’s Manual, available in digital and print formats.
  • Page 2 Warranty For current warranty information, see: www.microscan.com/warranty. MS-3 Laser Scanner Quick Start Guide...

  • Page 3: Step 1 -Check Required Hardware

    • (4) Host Computer • (5) Null Modem Configuration Cable, 61-300026-01, DB-25 plug to DB-9 socket, 6ft. Hardware Required • (6) Power Supply, 97-100004-05 (120V) or 97-100004-06 (240V) • (7) Object Detector (optional), 99-4400021-03 MS-3 Laser Scanner Quick Start Guide...

  • Page 4: Step 2 -Connect The System

    2. If using your own null modem RS-232 host cable, be certain that the host’s TxD connects to the scanner’s RxD and the scanner’s TxD connects to the host’s RxD. MS-3 Laser Scanner Quick Start Guide...

  • Page 5: Step 3 -Install Esp

    Step 3 —Install ESP ESP Software can be found on the Microscan Tools Drive that is packaged with the MS-3. 1. Follow the prompts to install ESP from the Tools Drive. 2. Click on the ESP icon to run the program.

  • Page 6: Step 4 -Select Scanner Model

    OK. 3. Click when the connect dialog appears. Note: If you need to select another model later, you can find it in App Mode under Model on the menu bar. MS-3 Laser Scanner Quick Start Guide...
  • Page 7 3. If the connection fails, enable a different Com Port, check connections, and try again. Tip: If you do not see the CONNECTED or DISCONNECTED message at the bottom of your dialog, try expanding the ESP window horizontally. MS-3 Laser Scanner Quick Start Guide...

  • Page 8: Step 6 -Position Symbol And Scanner

    3. Pitch the symbol or scanner at a minimum of ±15° to avoid specular reflection (the return of direct, non-diffused light). Skew axis Bar code label Tilt axis Scanner Pitch axis Scan line Symbol/Scanner Positioning MS-3 Laser Scanner Quick Start Guide...

  • Page 9: Step 7 -Test Read Rate

    With this test you can learn the percentage of decodes per images captured by observing the LEDs (20% through 100%) on the top of the MS-3 which are active during a read rate test. If the results are not satisfactory, move on to Step 8 — “Calibrate the Scanner”.

  • Page 10: Step 8 -Calibrate The Scanner

    TEST see two performance LEDs Read rate turn amber to indicate that the performance 100% calibration is in progress. LEDs The scanner will beep once at the end of calibration. Calibration 11-000063-01 MS-3 Laser Scanner Quick Start Guide...
  • Page 11 Step 9 —Save Calibration Settings After calibrating the MS-3, you can save your new settings to be available at power-on. By ESP Caution: If you have settings in the scanner that you have not yet loaded into ESP, the ESP settings will overwrite the scanner’s settings when you save.

  • Page 12: Step 10 -Configure The Scanner

    Note: You can learn the current setting of any parameter by inserting a question mark after the number, as in <K100?>. To see all K commands, send <K?>. MS-3 Laser Scanner Quick Start Guide...
