- Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

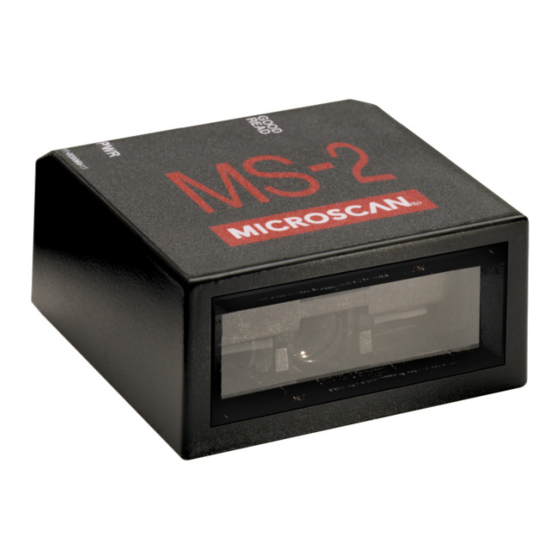

- Page 2 MS-2 CCD Reader U se r’s M a nua l P/N 83-000002 Rev C...
- Page 3 All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.
- Page 4 Limitation of Liability In no event shall Microscan Systems Inc. be liable to you or any third party for any special, incidental, or consequential damages (including, without limitation, indirect, special, punitive, or exemplary damages for loss of business, loss of profits, business interruption, or loss of business information), whether in contract, tort, or otherwise, even if Microscan Systems Inc.
- Page 5 Chapter 4 Read Cycle Read Cycle by ESP ................. 4-2 Read Cycle Serial Commands ..............4-3 MS-2 Read Cycle Overview ..............4-4 Number of Symbols ................. 4-5 Time Between Identical Decodes ............4-6 Trigger Mode ................... 4-7 Continuous Read 1 Output Emulation ............. 4-9 Serial Trigger Character (Delimited)............
- Page 6 Appendix B Electrical Specifications ............A-5 Appendix C Serial Configuration Commands ..........A-6 Appendix D Communications Protocol ............A-9 Appendix E ASCII Table ................A-10 Appendix F Operational Tips ..............A-11 Appendix G Using an External Trigger ..........A-12 Appendix H Glossary of Terms..............A-13 Index MS-2 CCD Reader User’s Manual...
- Page 7 • RS-232 connectivity About This Manual This manual provides complete information on setting up, installing, and configuring the MS-2 CCD Reader. The sections are presented in the order in which a reader might be set up and made ready for operation. Highlighting...
- Page 8 CLASS 1 LED PRODUCT WITH CLASS 1 INTERNAL RADIATION Maximum LED Output: 141.2µW IEC 60825-1:1993+A1:1997+A2:2001 • Viewing the MS-2’s LED output with optical instruments such as magnifiers, eye loupes, or microscopes within a distance of 100 mm could cause serious eye injury. • Maximum LED output: 141.2µW...
- Page 9 Statement of Agency Compliance Statement of Agency Compliance The MS-2 has been tested for compliance with FCC (Federal Communications Commission) regulations and has been found to conform to all applicable FCC Rules and Regulations. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter.
- Page 10 The information provided in this certification notice is correct to the best of Microscan’s knowledge at the date of publication. This notice is not to be considered a warranty or quality specification. Users are responsible for determining the applicability of any RoHS legislation or regulations based on their individual use of the product.
- Page 11 MS-2 CCD Reader User’s Manual...
- Page 12 Step 8 Save Configuration in ESP ....................1-9 This section is designed to get your MS-2 CCD Reader up and running quickly using ESP (Easy Setup Program). Following these steps will allow you to get a sense of the reader’s capabilities and to test symbol decode performance.
- Page 13 USB Hardware Required RS-232 Hardware Item Description Part Number MS-2 CCD Reader FIS-0002-000XG IC-332 Adapter FIS-0001-0035G IB-131 Interface Box 99-000018-01 Power Supply (90-264 VAC, 24VDC, USA/Euro 97-100004-15 plug) Object Detector 99-000017-01 Communication Cable 61-300026-03 RS-232 Hardware Required MS-2 CCD Reader User’s Manual...
- Page 14 • Connect the host cable (6) to the host and to the host port on the IB-131 (3). • Connect the object detector (5) to the IB-131 (3). • Connect the power supply (4) to the IB-131 (3). • Apply power to the reader. RS-232 Hardware Configuration MS-2 CCD Reader User’s Manual...
- Page 15 St e p 3 — I nst a ll ESP Easy Setup Program (ESP) is Microscan’s proprietary setup and testing application. The purpose of ESP is to provide a quick and easy way to set up and configure Microscan readers.
- Page 16 1. Click the button showing the MS-2. 2. Click OK. Note: You can also double-click the MS-2 button to make your selection. 3. Click Yes when this dialog appears: Note: If you need to select another model later, click the Switch Model button near the top of the screen or use Model >...
- Page 17 Connect from the Connect dropdown menu on ESP’s menu toolbar. When the Connection Settings dialog appears, check the Force Connect box and click the Connect button. MS-2 CCD Reader User’s Manual...
- Page 18 • Set up a symbol at the distance you will be using in your application. Refer to the Read Ranges for your MS-2 model (High Density or Low Density) to determine the optimal distance. Note: If you are using an Interleaved 2 of 5 symbol, verify that the number or characters being scanned matches the symbol length enabled for I 2/5 (default is 10 and 6).
- Page 19 From here you can make changes in the tree controls that can be accessed by clicking the buttons on the second row of icons in the ESP window. For further details, see Microscan ESP Help in the dropdown Help menu. MS-2 CCD Reader User’s Manual...
- Page 20 Saving Options • Send, No Save. Changes will be lost when power is re-applied to the reader. • Send and Save. This activates all changes in current memory and saves to the reader for power-on. MS-2 CCD Reader User’s Manual...
- Page 21 Save Configuration in ESP 1-10 MS-2 CCD Reader User’s Manual...
- Page 22 (Communications, Read Cycle, and Symbologies), a Terminal interface, and a Utilities interface. ESP can be used to configure the MS-2 CCD Reader in three main ways: • Tree Controls: Each configuration menu contains a list of all option settings that pertain to that specific element of reader operation.
- Page 23 Autodiscriminate function that automatically enables all symbologies. Enter App Mode to access configuration trees and other setup features. If you are unsure what type of symbology you are using, click Autodiscriminate to enable all symbologies. MS-2 CCD Reader User’s Manual...
- Page 24 Click the Configuration icon to return to full App Mode view from Terminal or Utilities. Note: See the corresponding sections in this manual for specific information on any of the views or modes mentioned above. MS-2 CCD Reader User’s Manual...
- Page 25 ESP and the reader, and ESP and the host hard drive. (Save to Reader) (Receive Reader Settings) Import/Export Import converts the ASCII settings from a text file to ESP configuration settings. Export converts the active ESP configuration settings to an ASCII text file. MS-2 CCD Reader User’s Manual...
- Page 26 To connect to another model, select New Model, choose a new model from the pop-up menu that appears, and click OK. Note: When you save an ESP file, you are saving the settings of all the models defined in that file. MS-2 CCD Reader User’s Manual...
