Calibration
Calibration by Embedded Menu
To calibrate via the embedded Calibration Setup Menu, do the following:
1. Enter Calibration
take a few seconds to generate.
2. Choose your calibration setup option:
Enter 1 to optimize Motor Speed.
Enter 2 to optimize Laser Power.
Enter 3 to optimize Gain Level.
Note: Doing all 3 of the above routines is the equivalent of sending the <@CAL>
serial command or clicking Calibrate in the ESP Calibration display page.
Enter 4 to do laser framing. This is the same as clicking the Auto Frame button
in the Calibration display.
Note: A user can abort calibration at any time by pressing the
terminal. No other keystroke has any effect while in calibration.
3. Wait for the calibration routine to cycle through its settings.
A Calibration in Progress message will be displayed. A new text line will appear
below the menu displaying the progress of the calibration.
MS-3 Laser Scanner User's Manual
9-4
menu by sending an

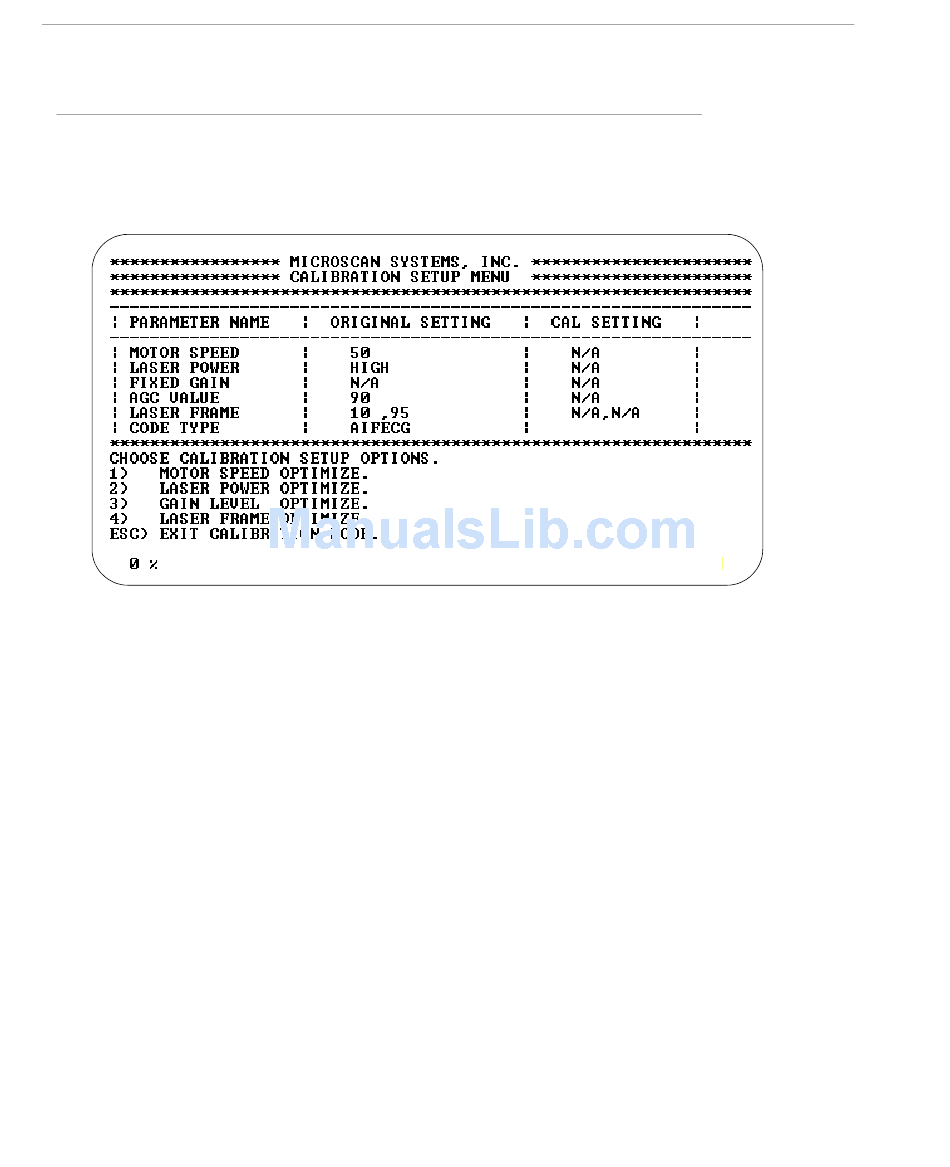

Figure 9-8 Embedded Calibration Setup Menu

<@> command from a terminal. This may
ESC key on the
