Step 7 — Test for Read Rate
With this test you can learn the percentage of decodes per images captured by observ-
ing the LEDs (20% through 100%) on the top of the MS-3 which are active during a
read rate test. If the results are not satisfactory, move on to
on page 1-9.
By ESP
After connecting to the scanner, ESP will open in Easy Setup Mode.
1. Click the Test
2. Follow the instructions in Easy Setup Mode screen.
3. To end the Read Rate test, click the
By the Test Button
1. Press and hold the
on the MS-3 until you hear one
beep and see one LED momen-
tarily turn amber. This will signal
the beginning of the read rate
1
routine.
2. To end the read rate test press
the TEST button and quickly
release.
1. This assumes that the default functions of the test button have not been re-programmed.
MS-3 Laser Scanner User's Manual
1-8
button in Easy Setup Mode to begin the read rate test.
TEST button
"Calibrate the Reader"
Stop button.

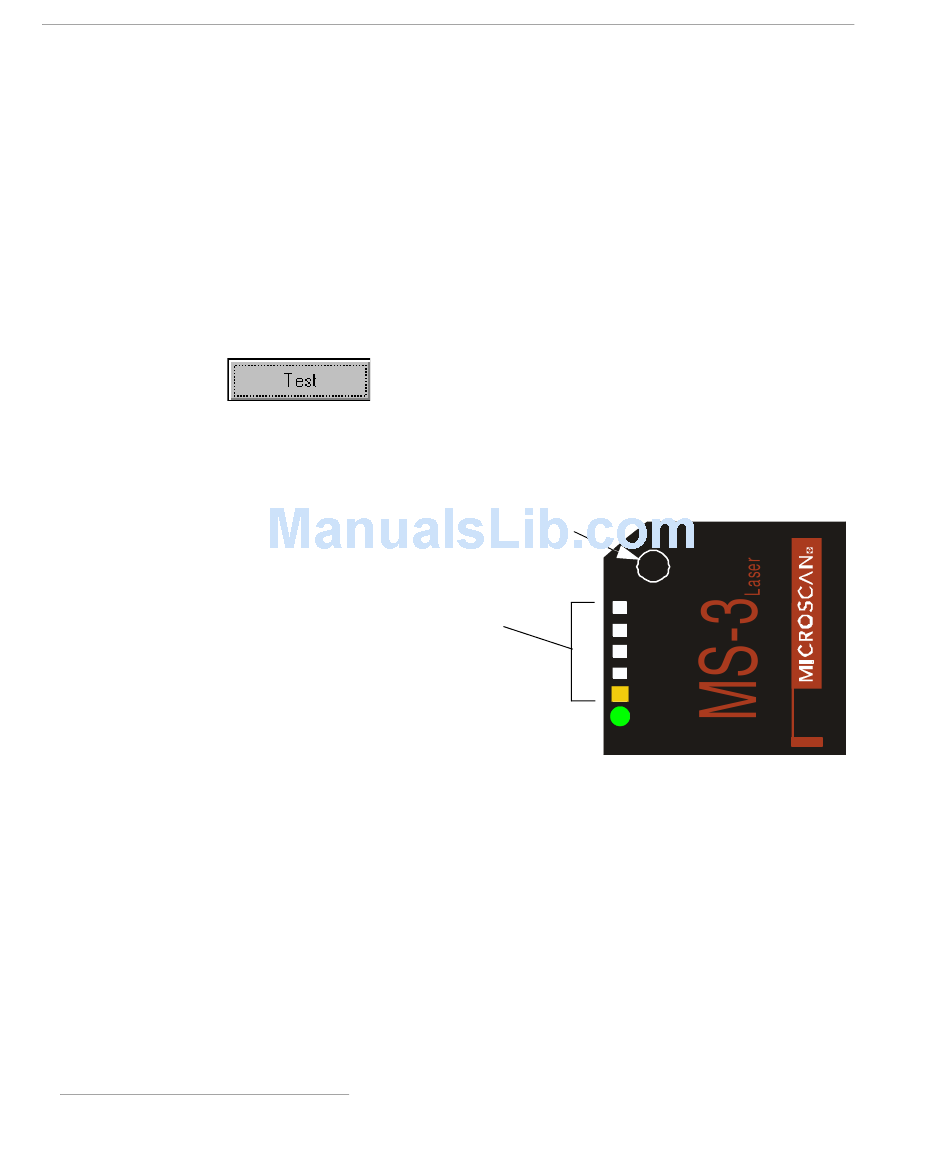

Test Button
