Step 2 — Connect the System
Caution:
• Be sure all cables are connected BEFORE applying power.
• Always power down BEFORE disconnecting any cables.
To connect the system, do the following:
1. Connect the scanner (1) to the
"SCANNER" connector on the
IC-331 interface converter (2)
using the attached 3-foot cable.
2. Connect the IC-331 directly to the
"SCANNER" 15 pin connector on the
IB-131 (3).
3. Connect the host computer (4) to
the IB-131 "HOST" 25-pin connec-
tor via the null modem cable (5).
(Refer to "IB-131 Interface" on
page A-8 for pin connections.)
4. Connect power supply (6) to the
IB-131 "POWER" connector.
5. Apply power to the system.
1. Since power supply is included in the single cabling assembly, the reader cable should not
exceed 3 feet. RS232 cabling from the IB-131 to the host can be up to 47 feet provided it does
not include power input.
2. If using your own null modem RS232 host cable, be certain that the host's TxD connects to the
reader's RxD and the reader's TxD connects to the host's RxD.
1
4
5
2

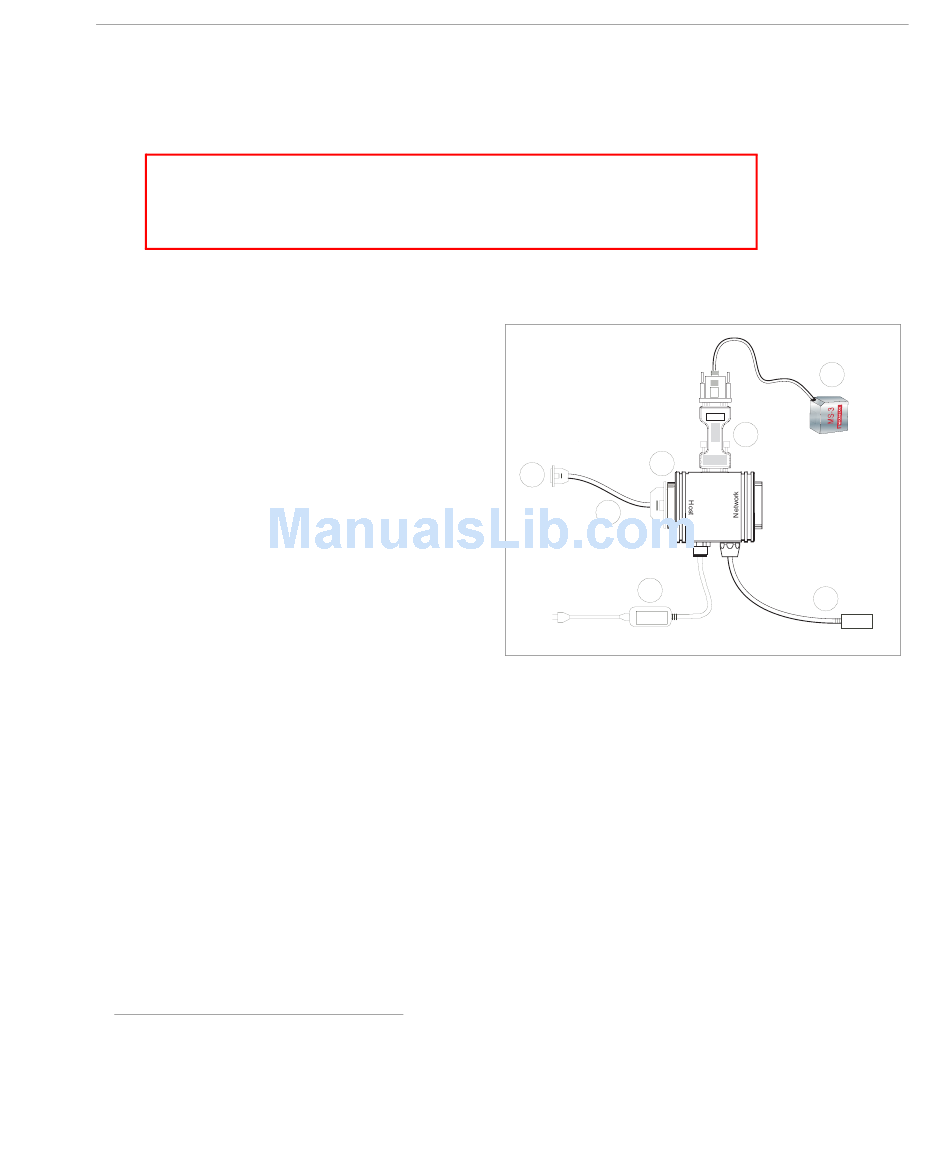

Figure 1-2 Hardware Connections

MS-3 Laser Scanner User's Manual
Chapter 1 Quick Start
2
3
Scanner
6
7
1
1-3
