STARTER REMOVAL

Disconnect BLACK cable ground connection from
battery.
WARNING
Always disconnect ground cable first and re-
connect last.
Disconnect RED cable connection from battery.
NOTE: To facilitate starter removal on RXP mod-
els, remove engine cover. Refer to BODY section.
Remove retaining screws from starter.
Pull starter out. Lift starter enough to reach starter
cable then disconnect from starter.

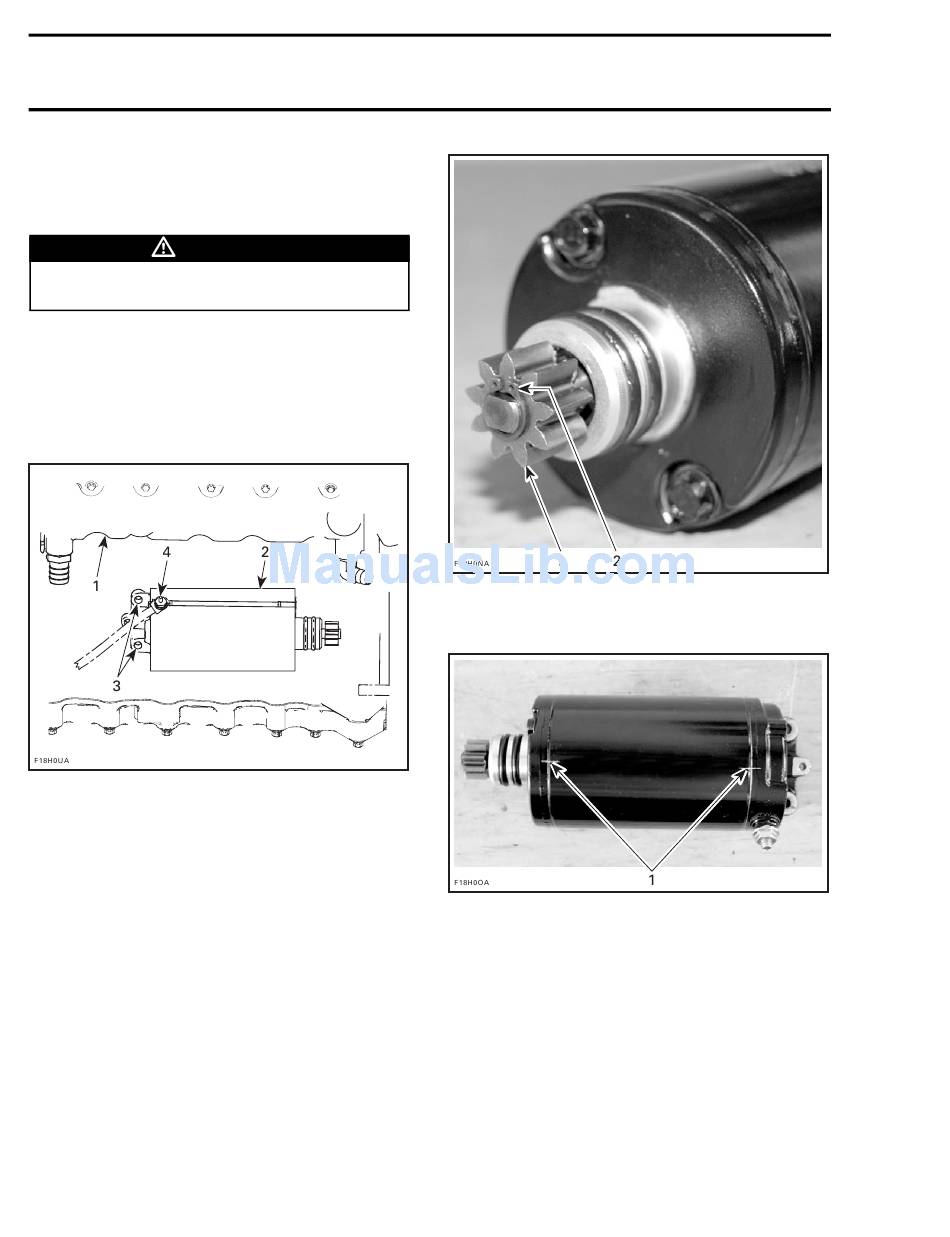

1. Exhaust manifold
2. Starter
3. Retaining screws
4. Nut

STARTER DISASSEMBLY

Remove bendix retaining circlip and starter bendix.
168
1. Retaining circlip
2. Starter bendix
Locate index marks on yoke and end covers.
1. Index marks
Loosen through bolts.
