Exhaust Manifold - Sea-doo GSX Limited Shop Manual

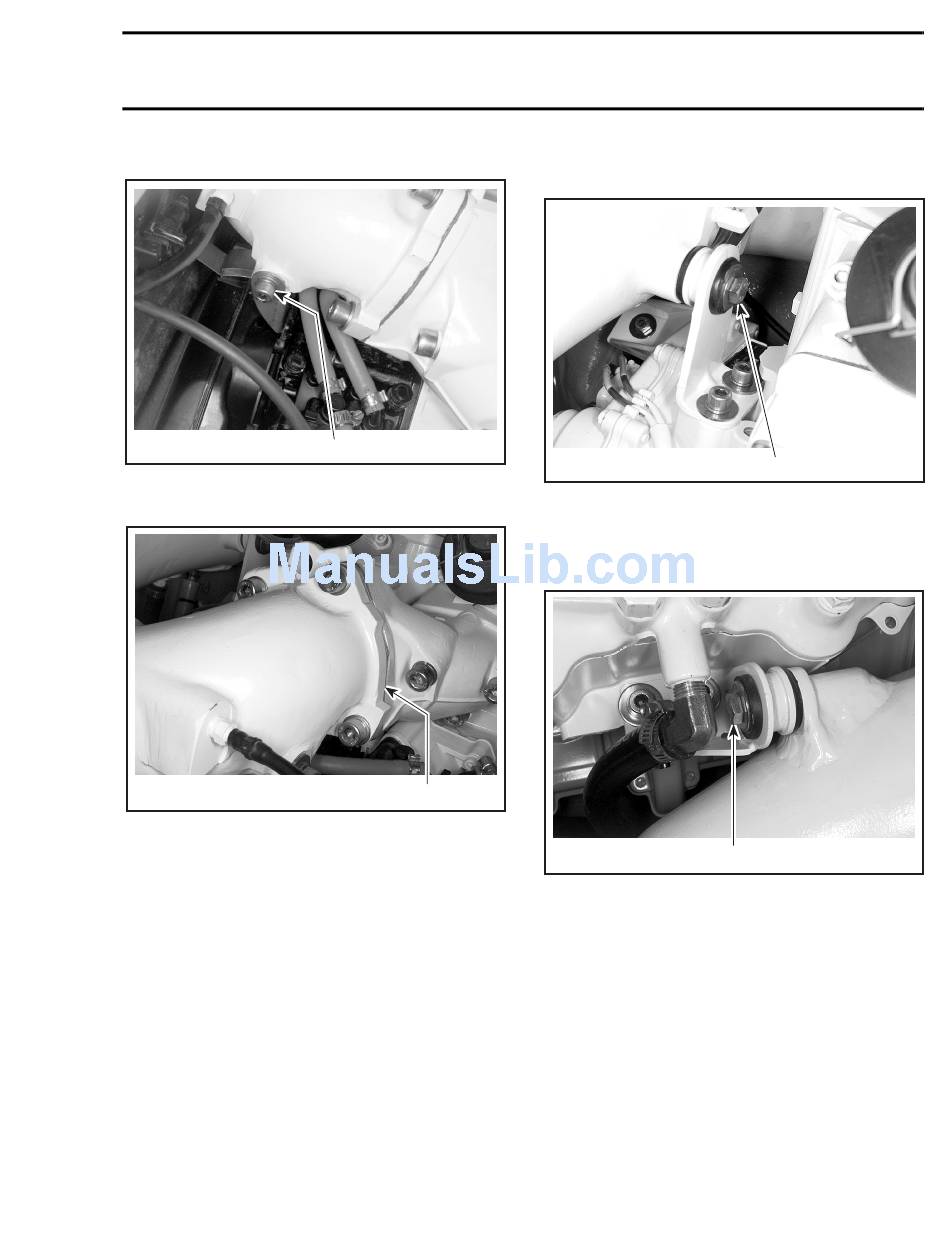

Loosen Allen screw of carburetor bracket.
F06D2DA
1. Loosen Allen screw
Loosen Allen screws and nut at tuned pipe flange.
F06D1TA
1. Tuned pipe flange
1
1
www.SeaDooManuals.net
Section 01 ENGINE
Subsection 04 (EXHAUST SYSTEM)
Loosen bolt of tuned pipe head above the engine
magneto.
F06D1UA
1. Remove bolt
Remove tuned pipe head.
Loosen bolt of tuned pipe cone beside the engine
water outlet hose.
F06D1VA
1. Loosen bolt
Remove tuned pipe cone.

Exhaust Manifold

Remove tuned pipe head (if not removed).
Remove 8 Allen screws with lock washers then
withdraw exhaust manifold.
