CDM-710G High-Speed Satellite Modem
Web Server Interface
7.3.3.3

Config Mdm | Modem Utilities

Use the 'Config Mdm | Modem Utilities' page (Figure 7-9) to perform the following Modem
Utilities tasks:
•
Selecting the Boot Image;
•
Performing a Soft Reboot;
•
Saving and Loading Configurations;
•
Setting up Redundancy Operation;
•
Setting the Date and Time;
•
Setting the Clock Mode;
•
Selecting the Test Mode;
•
Re-centering the Buffer;
•
Assigning a Circuit ID;
•
Setting the Rx Alarm Masks.
Once the desired configuration settings have been made in each section, click the action tab
provided in that section (e.g., [Submit], [Save], [Load], etc.) to save those changes.
For details pertaining to the configuration parameters available on this page, refer to Chapter 6.
FRONT PANEL OPERATION.

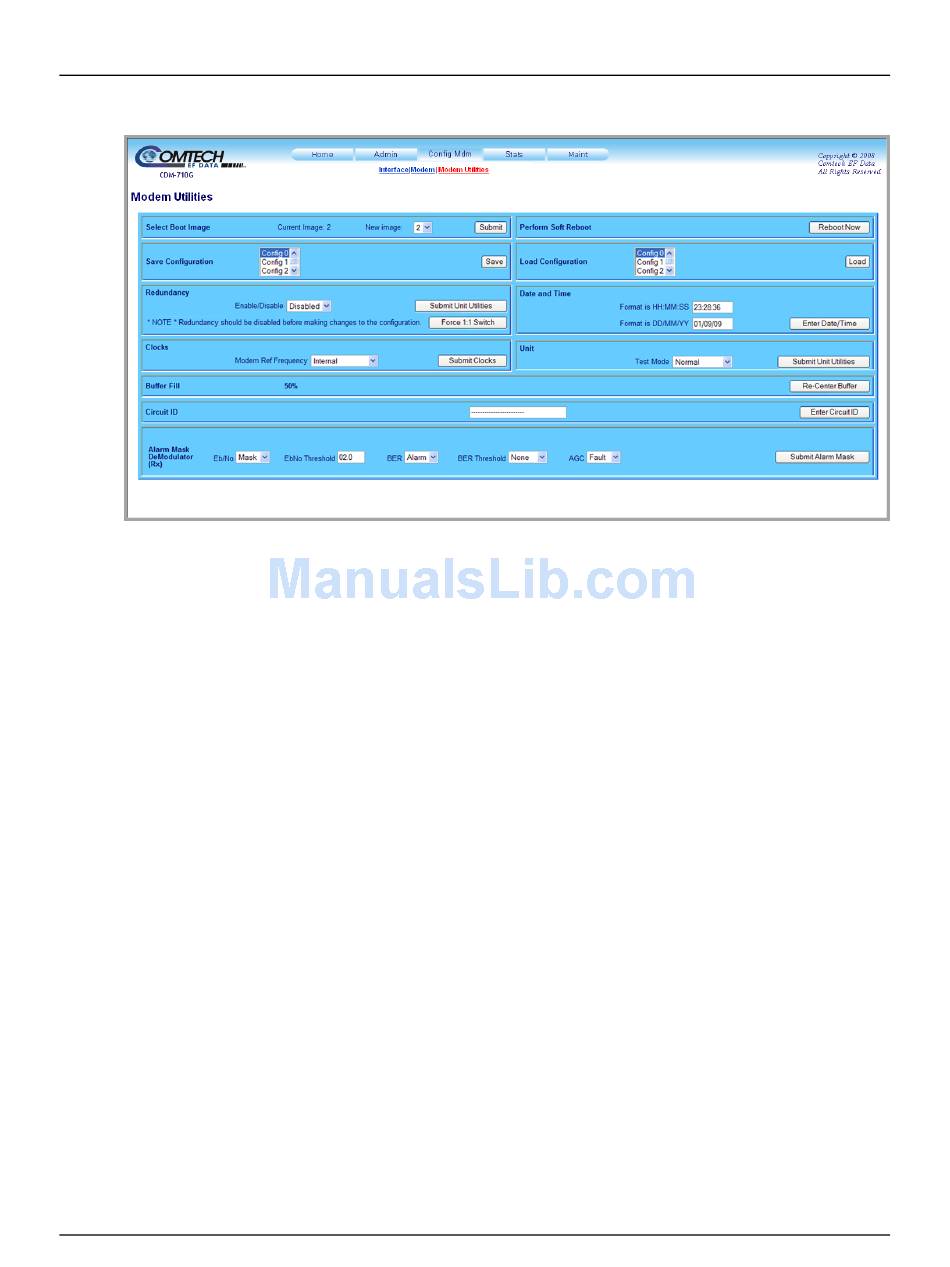

Figure 7-9. Config Mdm | Modem Utilities page

7–13
Revision 1
MN-CDM710G
