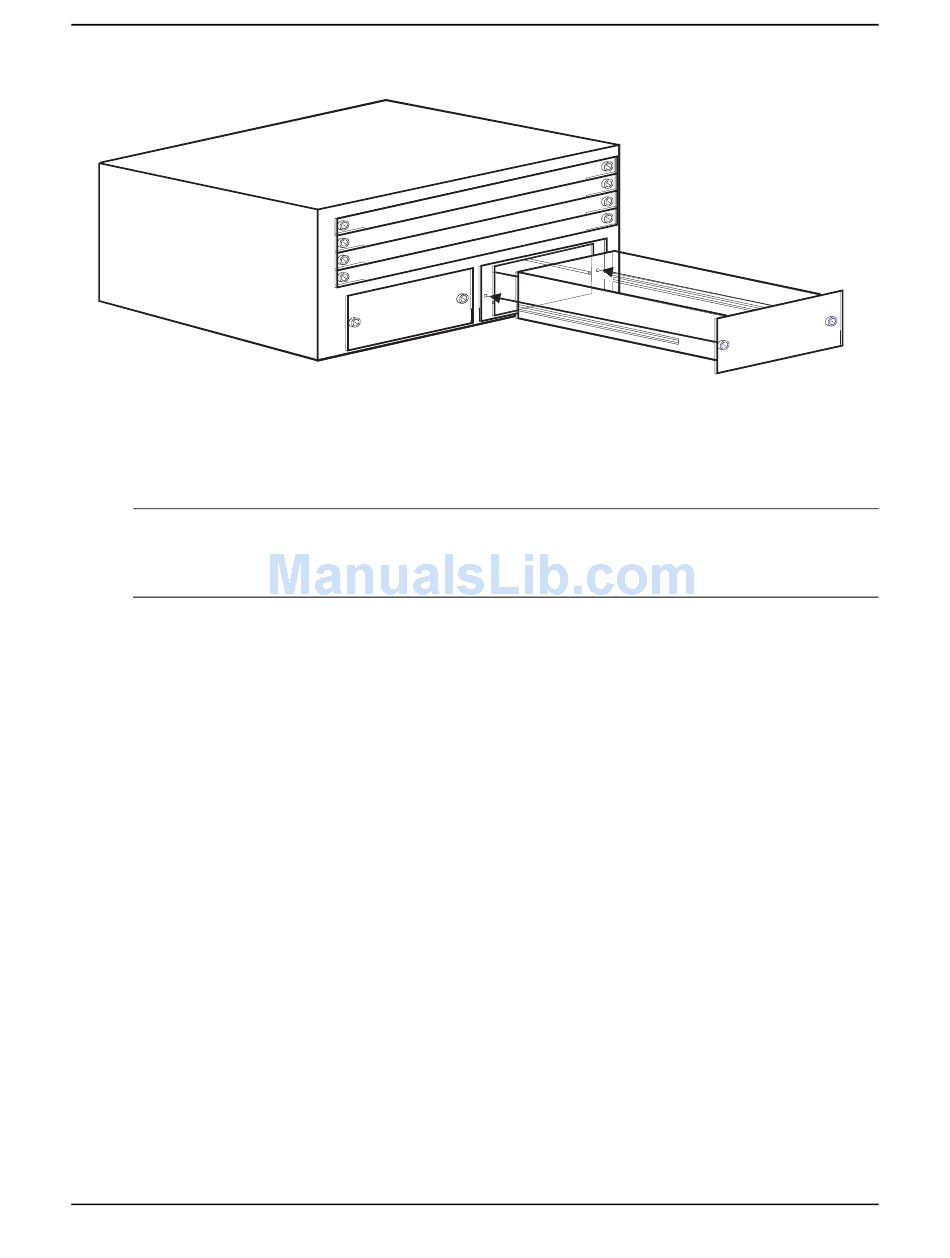

Figure 2.2
Installing a Power Supply
Removing Power Supplies
To remove a power supply module from the chassis, do the following:
CAUTION: Power supplies are hot swappable but they should be disconnected from AC power before being
installed or removed. That is, the routing switch can be running while a power supply is being installed or
removed, but the power supply itself should not be connected to a power source. Otherwise, damage to the
power supply or the routing switch could result.
1.
Unplug the power supply AC power cord from the outlet.
2.
Disconnect the power cord from the power supply.
3.
Use a screwdriver to loosen the screws on either side of the power supply.
4.
Holding the bar on the front panel of the power supply, pull outward, disconnecting the power supply from the
backplane.
5.
Continue to pull the power supply until it is removed from the chassis.
6.
Place the power supply in an anti-static bag for storage.
7.
Cover the power supply slot with the blank power supply cover that came with the device.
8.
Use a screwdriver to tighten the screws.
