Figure 4-1 System Information - SMC Networks TigerStack II SMC8848M Management Manual

B M
ASIC ANAGEMENT
• Web Secure Server Port – Shows the TCP port used by the HTTPS
interface.
• Telnet Server – Shows if management access via Telnet is enabled.
• Telnet Server Port – Shows the TCP port used by the Telnet interface.
• Authentication Login – Shows the user login authentication sequence.
• Jumbo Frame – Shows if jumbo frames are enabled.
• POST Result – Shows results of the power-on self-test
Web – Click System, System Information. Specify the system name,
location, and contact information for the system administrator, then click
Apply. (This page also includes a Telnet button that allows access to the
Command Line Interface via Telnet.)
4-2
T
ASKS

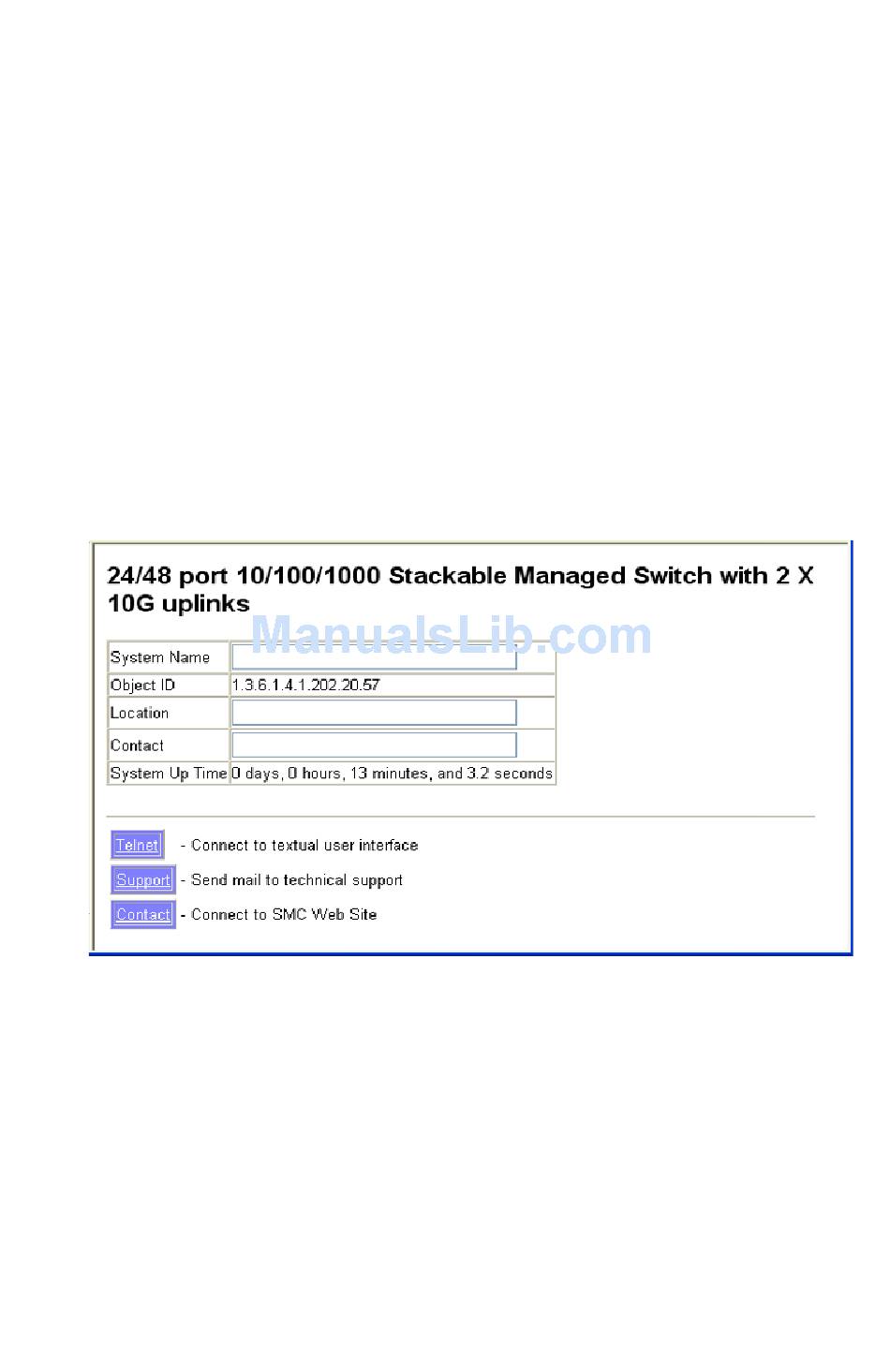

Figure 4-1 System Information
