Figure 17-17 Rip Redistribution Configuration - SMC Networks TigerStack II SMC8848M Management Manual

IP R
OUTING
Command Attributes
• Redistribute Protocol – Only static routes can be imported into this
routing domain.
• Redistribute Metric – Metric value assigned to all external routes for the
specified protocol. (Range: 1-15)
- The default metric value is set by set by the default-metric command
(see page 37-9).
Web - Click Routing Protocol, RIP, Redistribute Configuration. Enter the
redistribution metric for static routes, and click Set.
CLI - This example redistributes static routes and sets the metric for all of
these routes to a value of 3.
Console(config)#router rip
Console(config-router)#redistribute static metric 3
Console(config-router)#
17-40

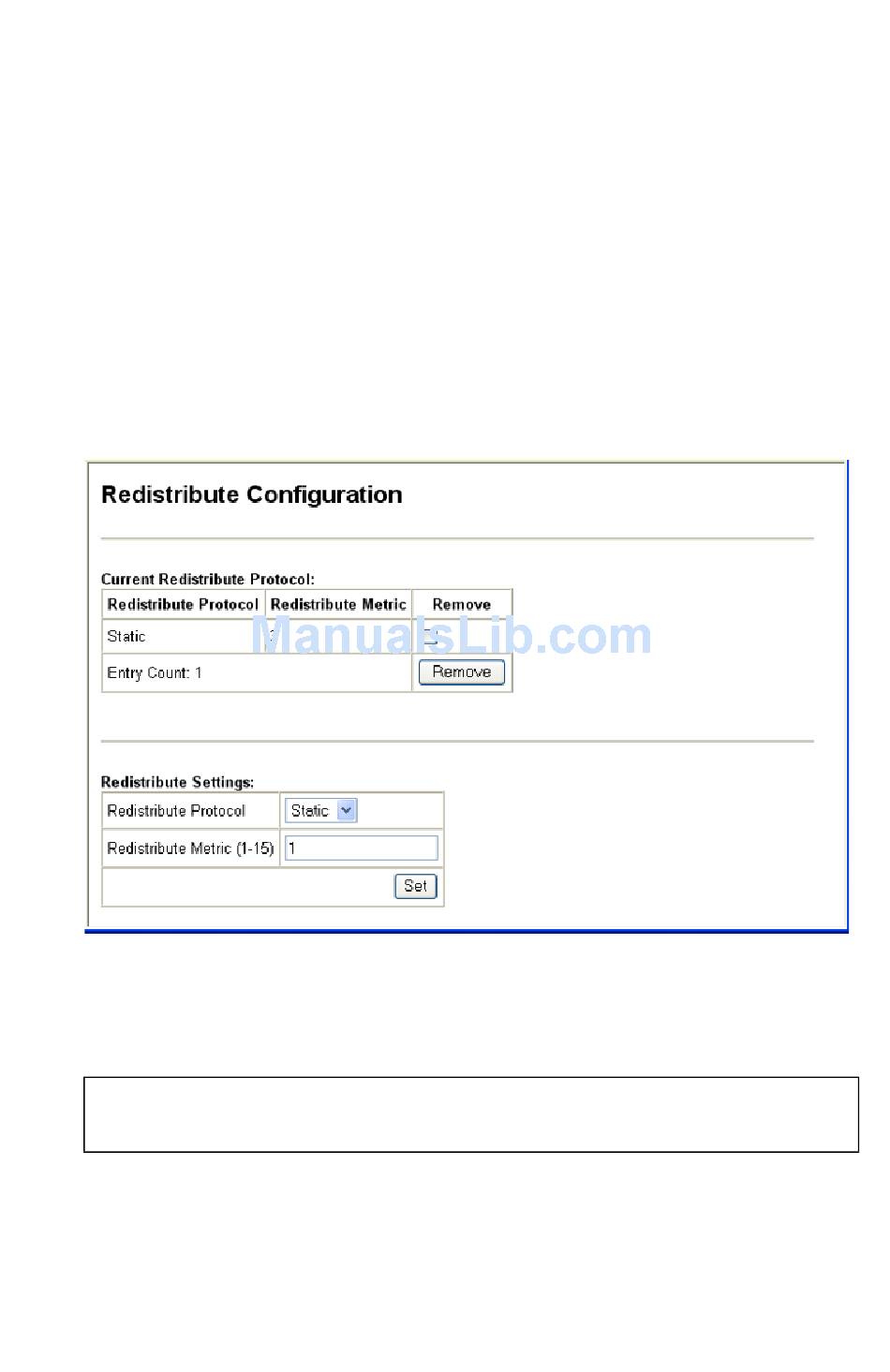

Figure 17-17 RIP Redistribution Configuration

37-9
37-15
