Figure 13-1 Configuring Class Maps - SMC Networks TigerStack II SMC8848M Management Manual

Web – Click QoS, DiffServ, then click Add Class to create a new class, or
Edit Rules to change the rules of an existing class.
CLI - This example creates a class map call "rd-class," and sets it to match
packets marked for DSCP service value 3.
Console(config)#class-map rd_class match-any
Console(config-cmap)#match ip dscp 3
Console(config-cmap)#
C
ONFIGURING

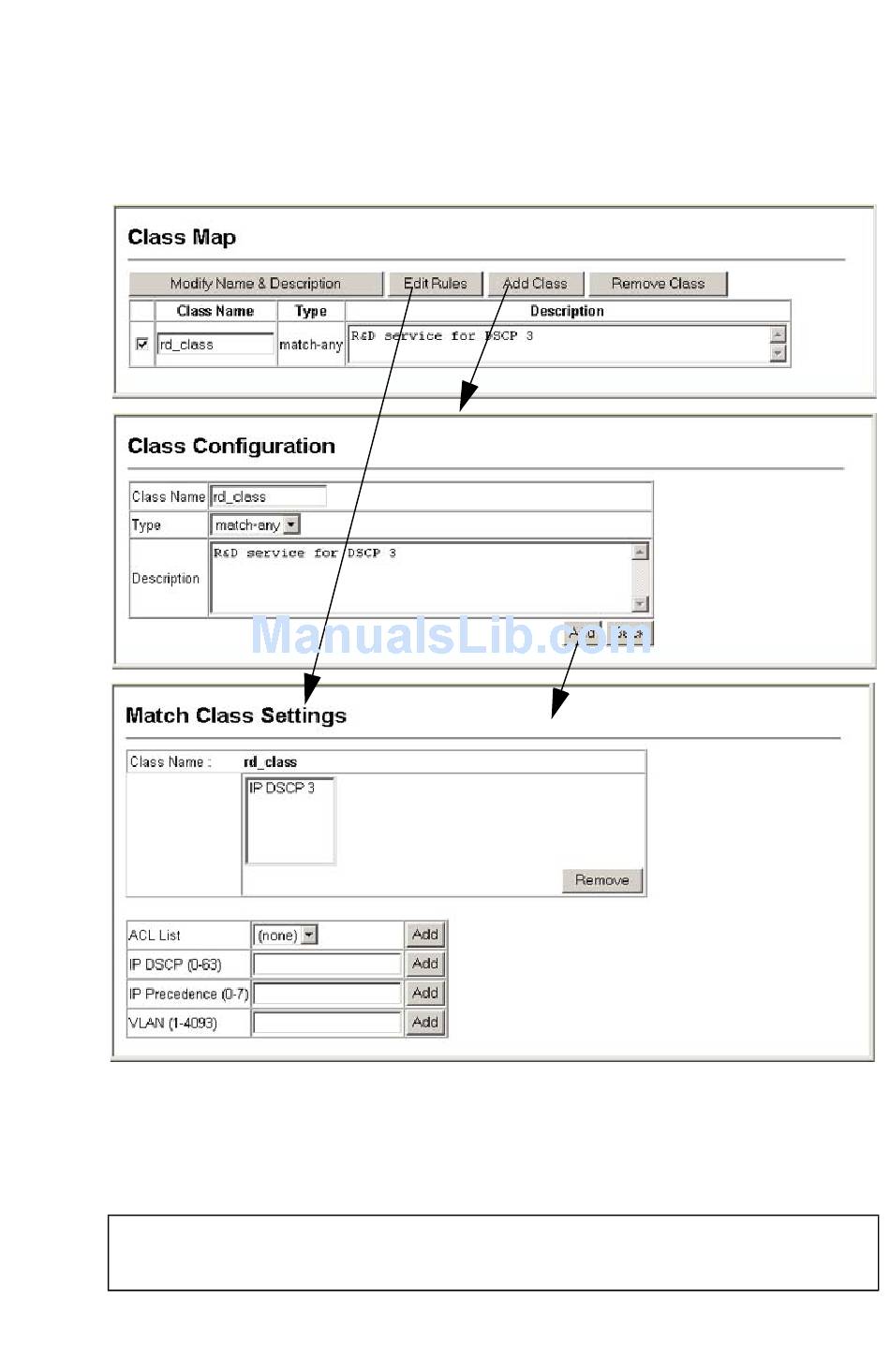

Figure 13-1 Configuring Class Maps

Q S
UALITY OF ERVICE
P
ARAMETERS
32-3
32-4
13-5
