Setting the Service Weight for Traffic Classes

This switch uses the Weighted Round Robin (WRR) algorithm to
determine the frequency at which it services each priority queue. As
described in "Mapping CoS Values to Egress Queues" on page 3, the
traffic classes are mapped to one of the eight egress queues provided for
each port. You can assign a weight to each of these queues (and thereby to
the corresponding traffic priorities). This weight sets the frequency at
which each queue will be polled for service, and subsequently affects the
response time for software applications assigned a specific priority value.
Command Attributes
• WRR Setting Table
(i.e., queue).
• Weight Value – Set a new weight for the selected traffic class.
(Range: 1-15)
Web – Click Priority, Queue Scheduling. Select the interface, highlight a
traffic class (i.e., output queue), enter a weight, then click Apply.
17. CLI shows Queue ID.
17
– Displays a list of weights for each traffic class

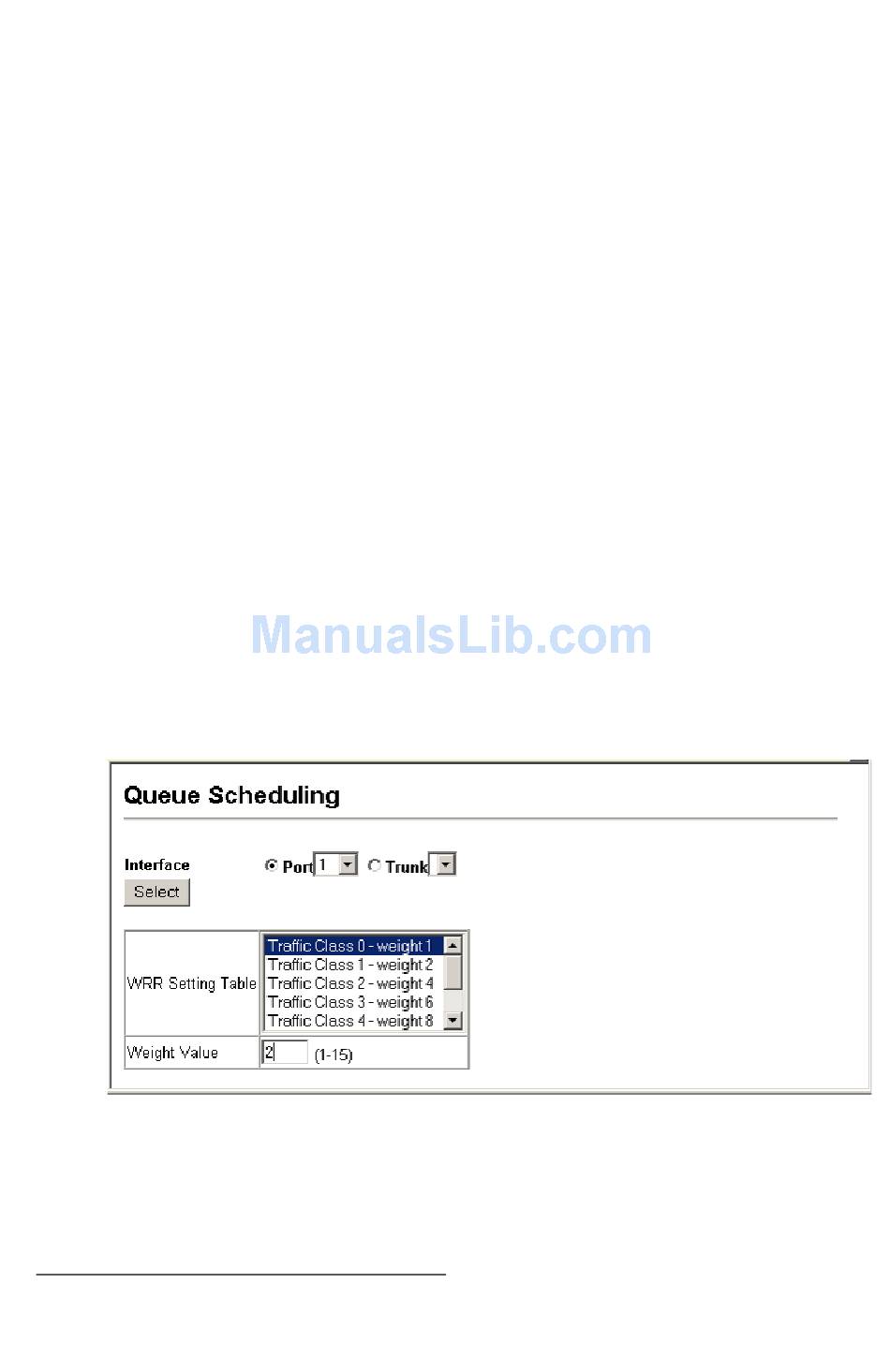

Figure 12-4 Queue Scheduling

L 2 Q
AYER UEUE
S
ETTINGS
12-7
