Figure 5-3 Configuring Snmp Trap Managers - SMC Networks TigerStack II SMC8848M Management Manual

Web – Click SNMP, Configuration. Enter the IP address and community
string for each management station that will receive trap messages, specify
the UDP port, SNMP trap version, trap security level (for v3 clients), trap
inform settings (for v2c/v3 clients), and then click Add. Select the trap
types required using the check boxes for Authentication and Link-up/
down traps, and then click Apply.

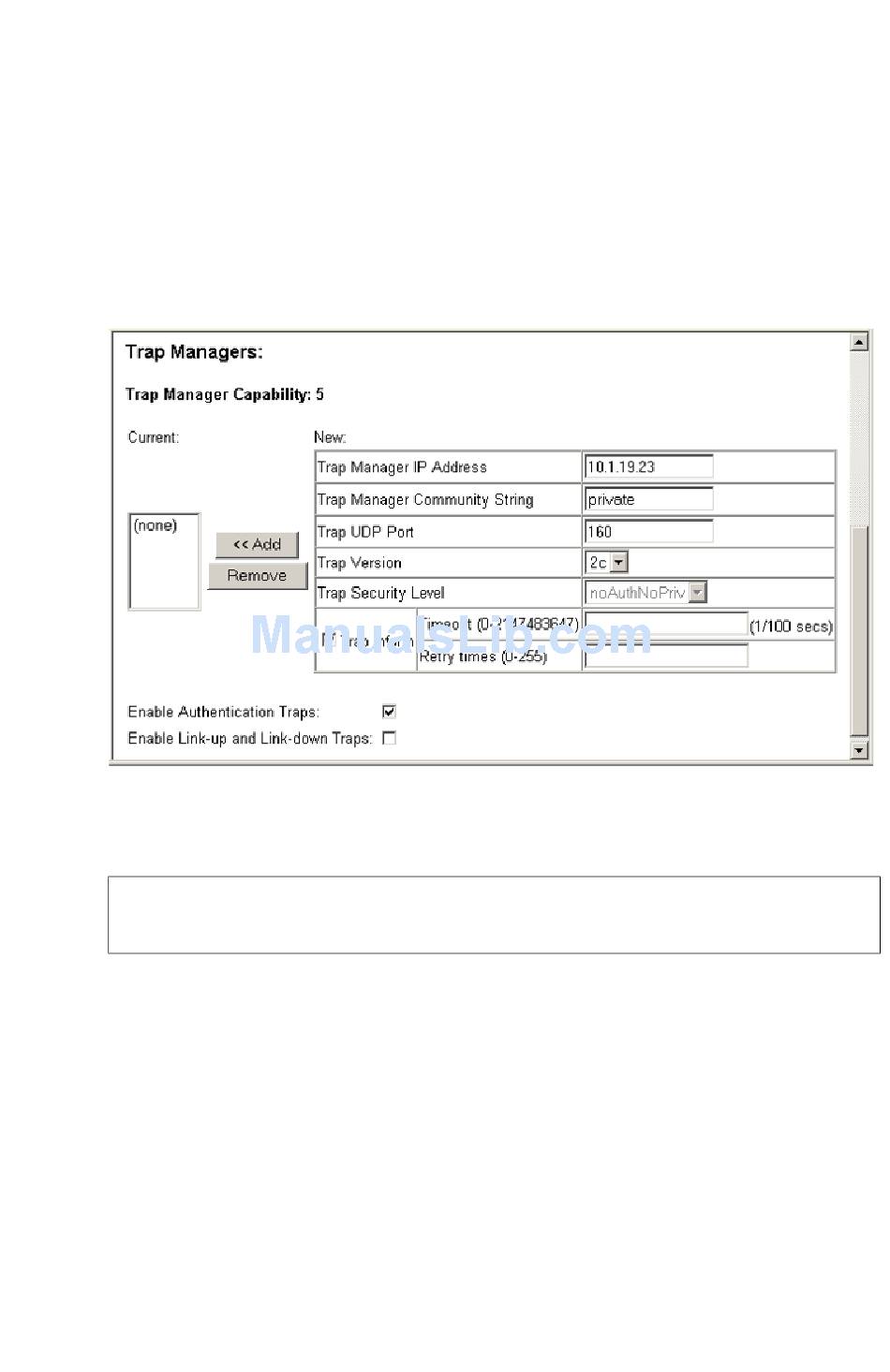

Figure 5-3 Configuring SNMP Trap Managers

CLI – This example adds a trap manager and enables authentication traps.
Console(config)#snmp-server host 10.1.19.23 private version 2c
udp-port 162
Console(config)#snmp-server enable traps authentication
S T
PECIFYING RAP
M
ANAGERS AND
T T
RAP YPES
21-6
21-9
5-9
