Figure 12-2 Traffic Classes - SMC Networks TigerStack II SMC8848M Management Manual

Web – Click Priority, Traffic Classes. Assign priorities to the traffic classes
(i.e., output queues), then click Apply.
CLI – The following example shows how to change the CoS assignments
to a one-to-one mapping.
Console(config)#interface ethernet 1/1
Console(config)#queue cos-map 0 0
Console(config)#queue cos-map 1 1
Console(config)#queue cos-map 2 2
Console(config)#exit
Console#show queue cos-map
Information of Eth 1/1
CoS Value:
Priority Queue: 0 1 2 3 4 5 6 7
Information of Eth 1/2
CoS Value:
Priority Queue: 0 1 2 3 4 5 6 7
. .
.
* Mapping specific values for CoS priorities is implemented as an interface configura-
tion command, but any changes will apply to the all interfaces on the switch.

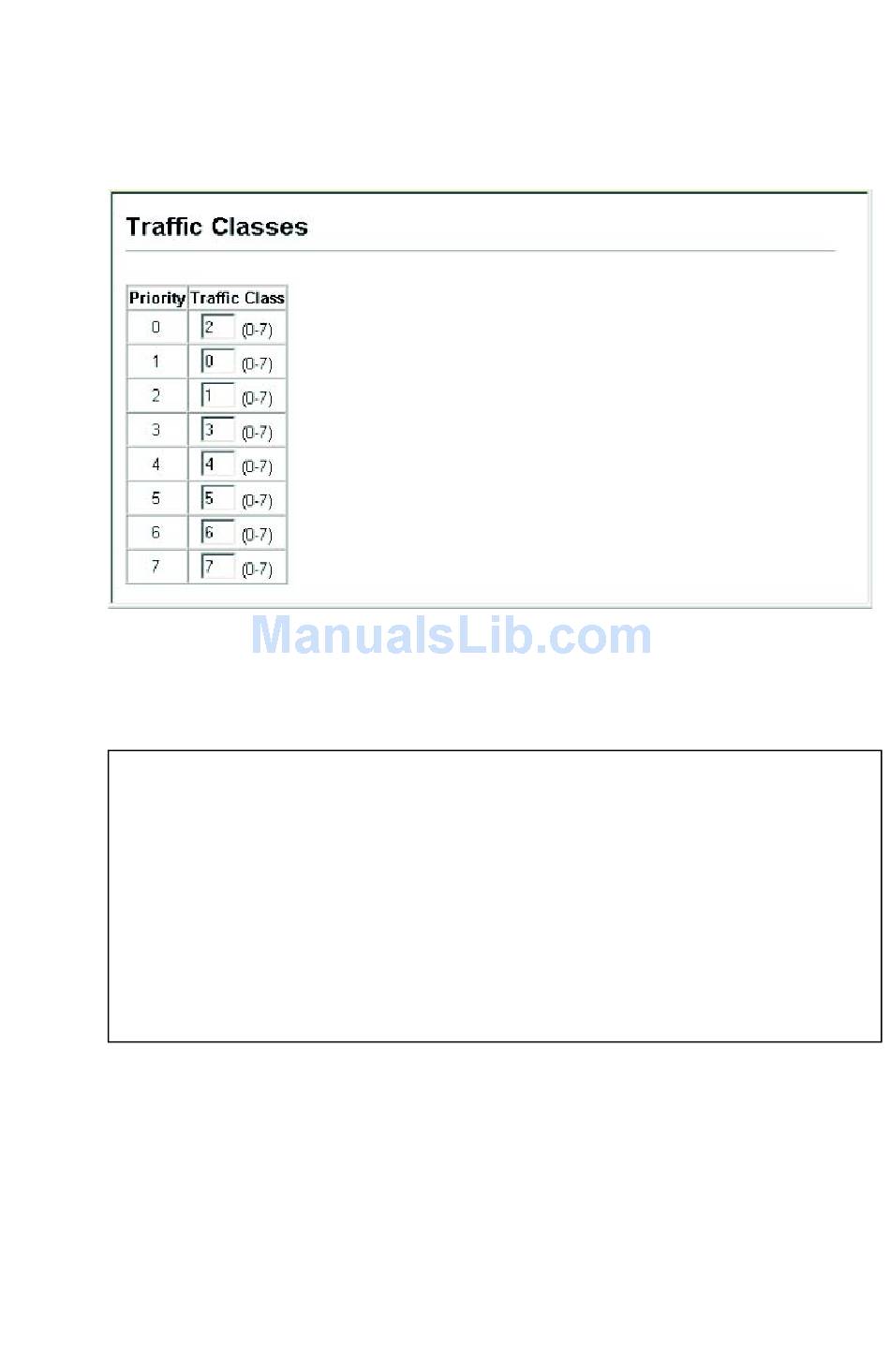

Figure 12-2 Traffic Classes

0 1 2 3 4 5 6 7
0 1 2 3 4 5 6 7
