Goodrive300-01A series VFD for air compressor Commissioning instruction
Note: Pay attention to the terminals with the same name when installing and wiring the current
transformer. For details, see Appendix C "Current transformer of the fan" for precautions.
4.2.2 Commissioning steps for single-VFD air compressor
1. Perform similar operations described in section 4.1.2 "Commissioning steps for the dual-VFD air
compressor", but you need to turn off the variable-frequency fan on the System Configuration
interface.
2. Choose Fan Parameters. Set the fan rated current according to the fan nameplate.

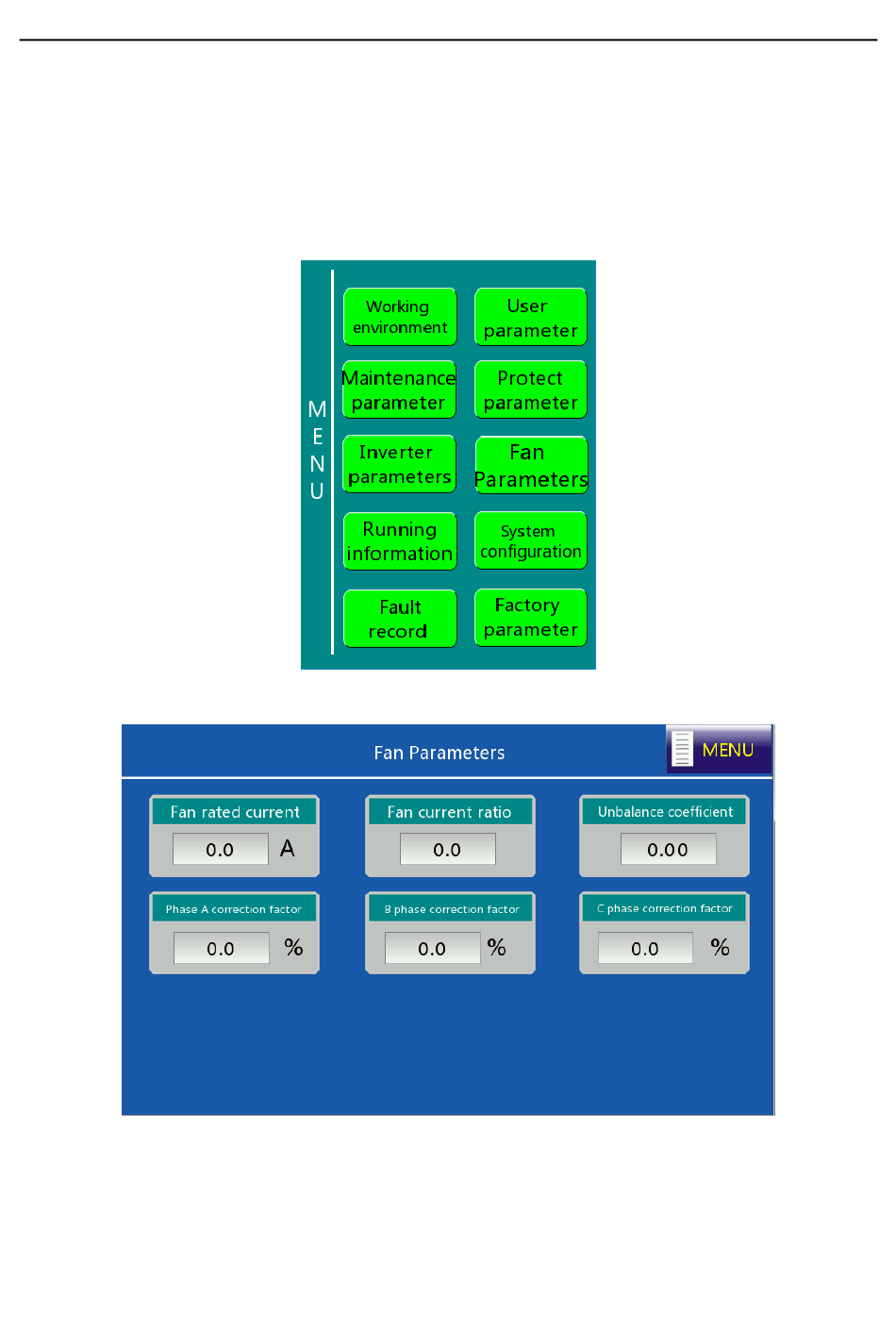

Figure 4-15 Fan parameter interface
3. After adjusting user parameters, factory parameters and maintenance parameters according to the
touch screen manual, return to the Working environment interface, and click Start to run.
