Goodrive300-01A series VFD for air compressor
Appendix B External optional accessories
B.1 RS485 LCD keypad
B.1.1 LCD keypad introduction
GD300-01A series VFD supports the use of the optional LCD keypad that uses RS485
communication. The LCD keypad can be used to control the start and stop of the VFD, read and write
the status data, and set the parameters.
Note:
 The LCD keypad has a real-time clock for display. After battery installation, the clock can work
properly even after power failure. You need to purchase the battery (model CR2032) by yourself.
 The LCD keypad has the parameter copying function.
 When you externally connect the keypad to the VFD, use M3 screws to secure the keypad or use
the optional keypad bracket to install the keypad. In addition, you need to use the keypad
extension cable with the standard RJ45 crystal head.
Item
RS485 LCD
keypad
Item
Status
①
indicator
1
12
5
4
3
7
11
9

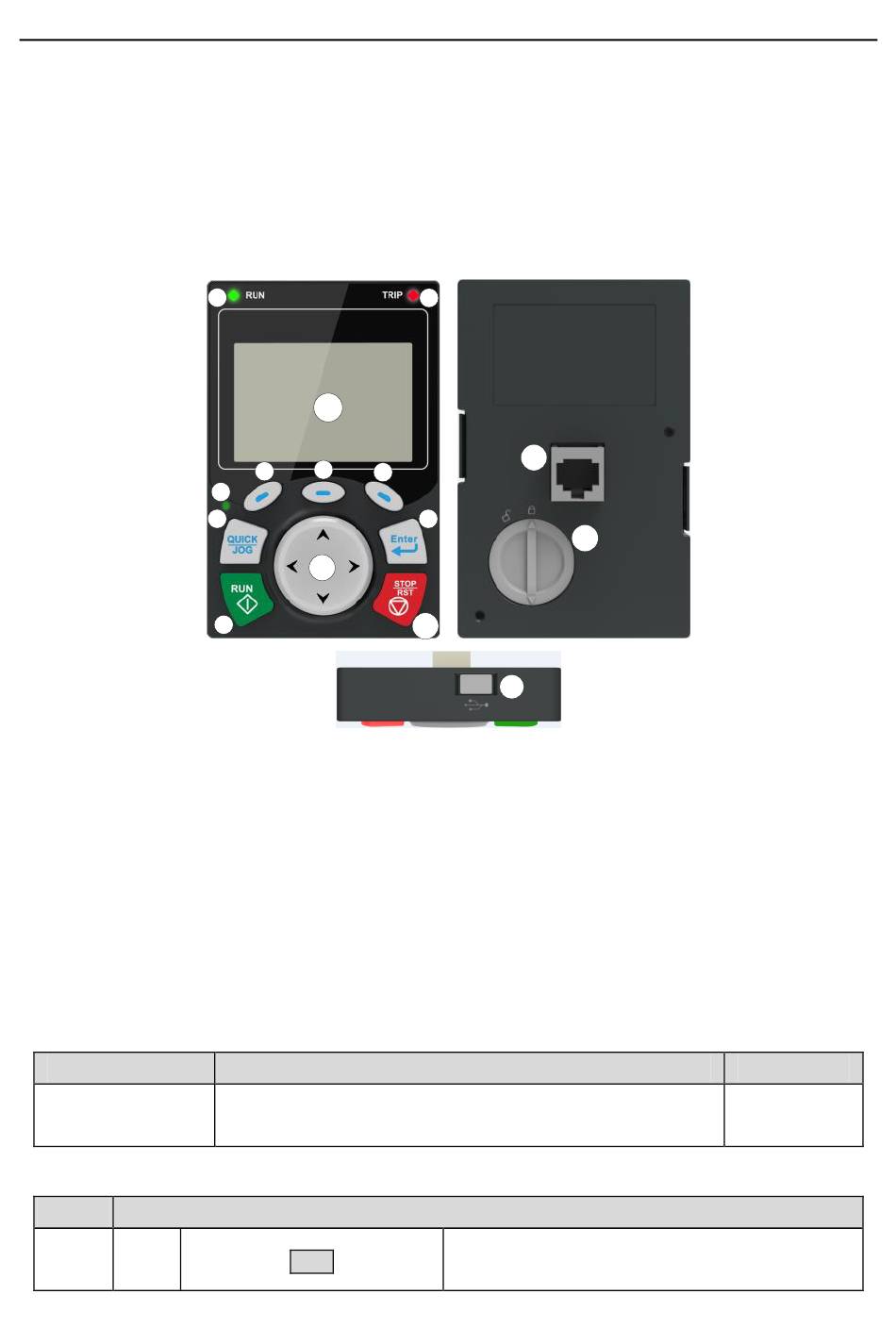

Figure B-1 LCD keypad
Table B-1 Ordering description for the RS485 LCD keypad
Includes a 2.5-meter RS485 keypad cable, a 2.5-meter
emergency stop cable, and an installation bracket.
Table B-2 LCD keypad description
RUN
2
13
6
8
10
15
Description
Description
VFD running status indicator.
LED on: in running state
-107-
External optional accessories
14
11022-00141
Order No.
