Goodrive300-01A series VFD for air compressor
Wiring instruction

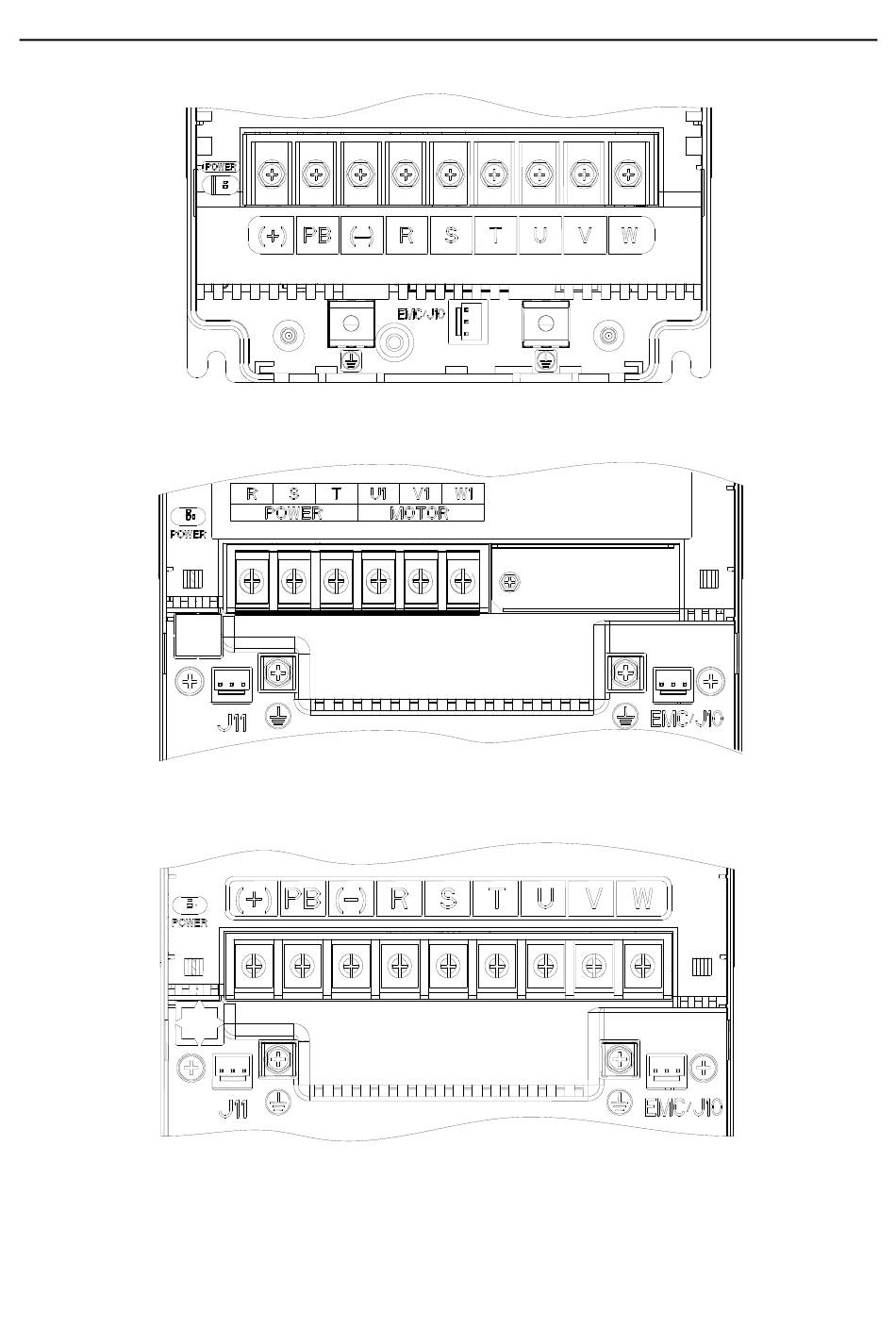

3.1.3 Main circuit terminal diagram of single VFD
Figure 3-6 7.5kW main circuit terminal diagram
Figure 3-7 11–15kW main circuit terminal diagram
Figure 3-8 18.5–22kW main circuit terminal diagram
-13-
