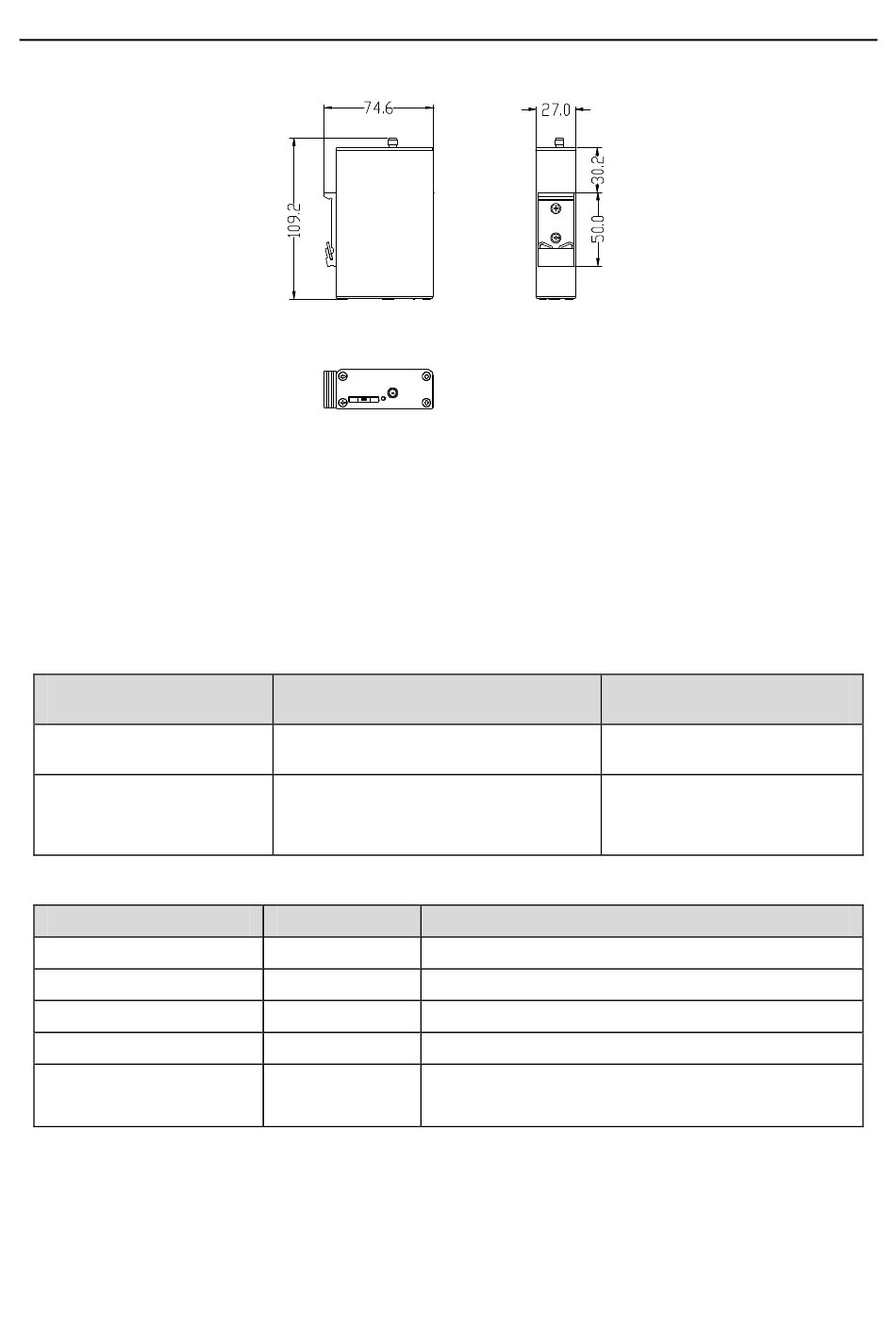

Below is the outline dimension for IP20 model (rail-mounted housing) (unit: mm).
Figure B-68 Outline dimension for IP20 model (rail-mounted housing)
B.3.3 Operational guide
The module is usually applied in complicated environment. To cope with the complex application
conditions and ensure system stability, the power must be above 3W and in stable status (the ripple is
under 100mA).
For details, refer to the operation manual of ICA Series GPRS Communication Adapter.
B.3.4 Ordering information
Name
ICA200-2G
SIM card
Deliverables for GPRS communication adapter
Deliverables
Adapter
Instruction manual
GPRS antenna
GPS antenna
Connection terminal
Description
Includes GPS, rail-mounted
Used for INVT communication
adapter
Qty
1
1
1
1
One 6PIN connection terminal and one 2PIN
2
-151-
External optional accessories
Order No.
11023-00090
34016-00004
Remark
Optional
connection terminal
