Goodrive300-01A series VFD for air compressor Commissioning instruction
Step 4 On the system configuration interface, click Debug Mode. The interface shown in Figure 4-9 is
displayed.

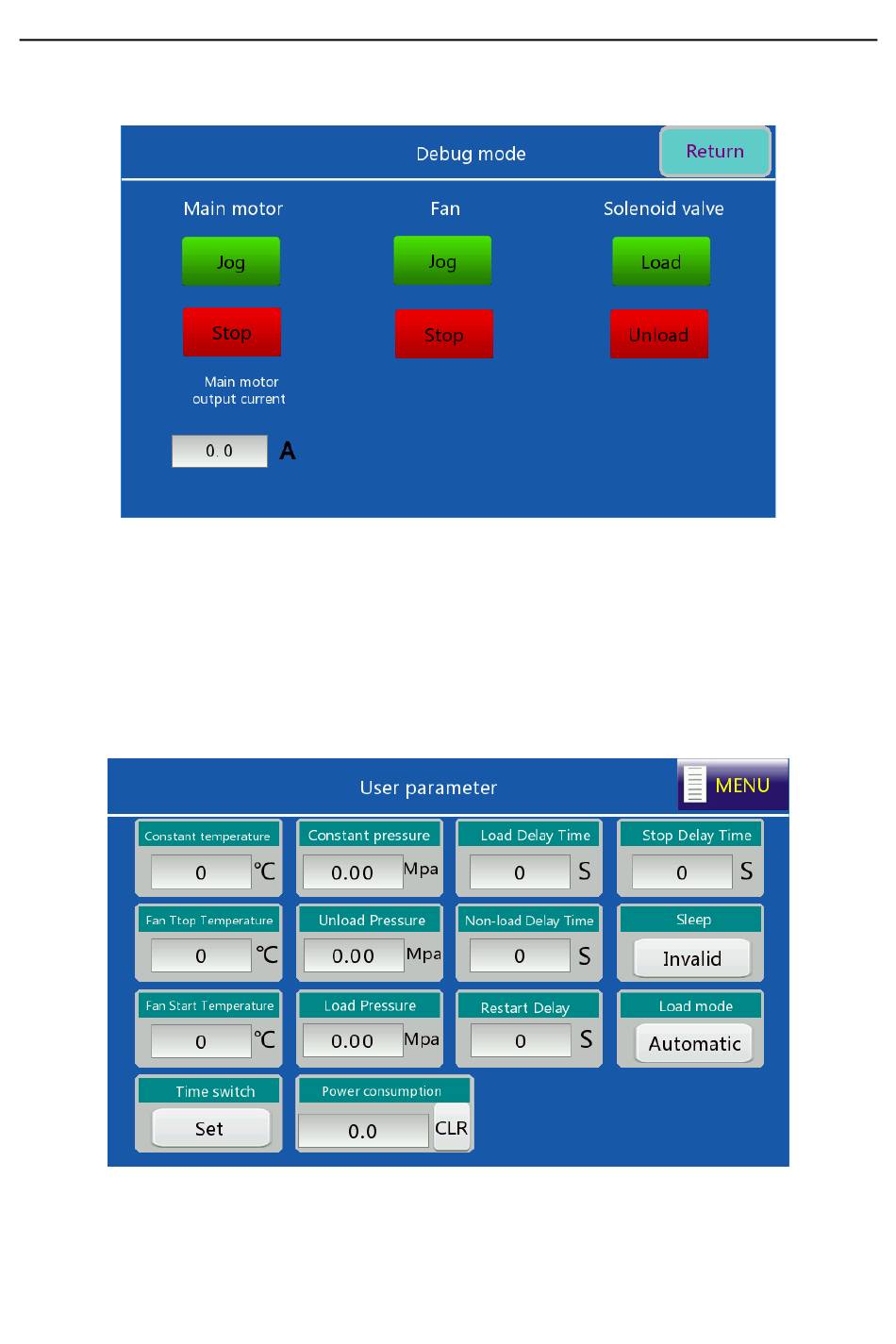

Figure 4-9 Debug mode interface
Click Jog for the main motor to determine the motor rotation direction; click Load or Unload to test
the action of solenoid valve. Click Return to enter system configuration, then, click Menu to return to
the menu interface.
Note: If the motor rotates reversely, adjust the wiring sequence of the motor cable.
6. Choose User parameters in the menu. The interface shown in Figure 4-10 is displayed.
Figure 4-10 User parameter interface
