B.2.4 Cable description
Note: The emergency stop cable is used for emergency stop control when a device fault occurs and it
is often connected to the S1 terminal and COM terminal.
Note: As shown in Figure B-60, the touch screen power supply interface is connected to CN7 of
GD300-01A VFD control board.
P1
5 5
9 9
6 6
1 1
Female
Terminal diagram
P1
5 5
9 9
6 6
1 1
Female

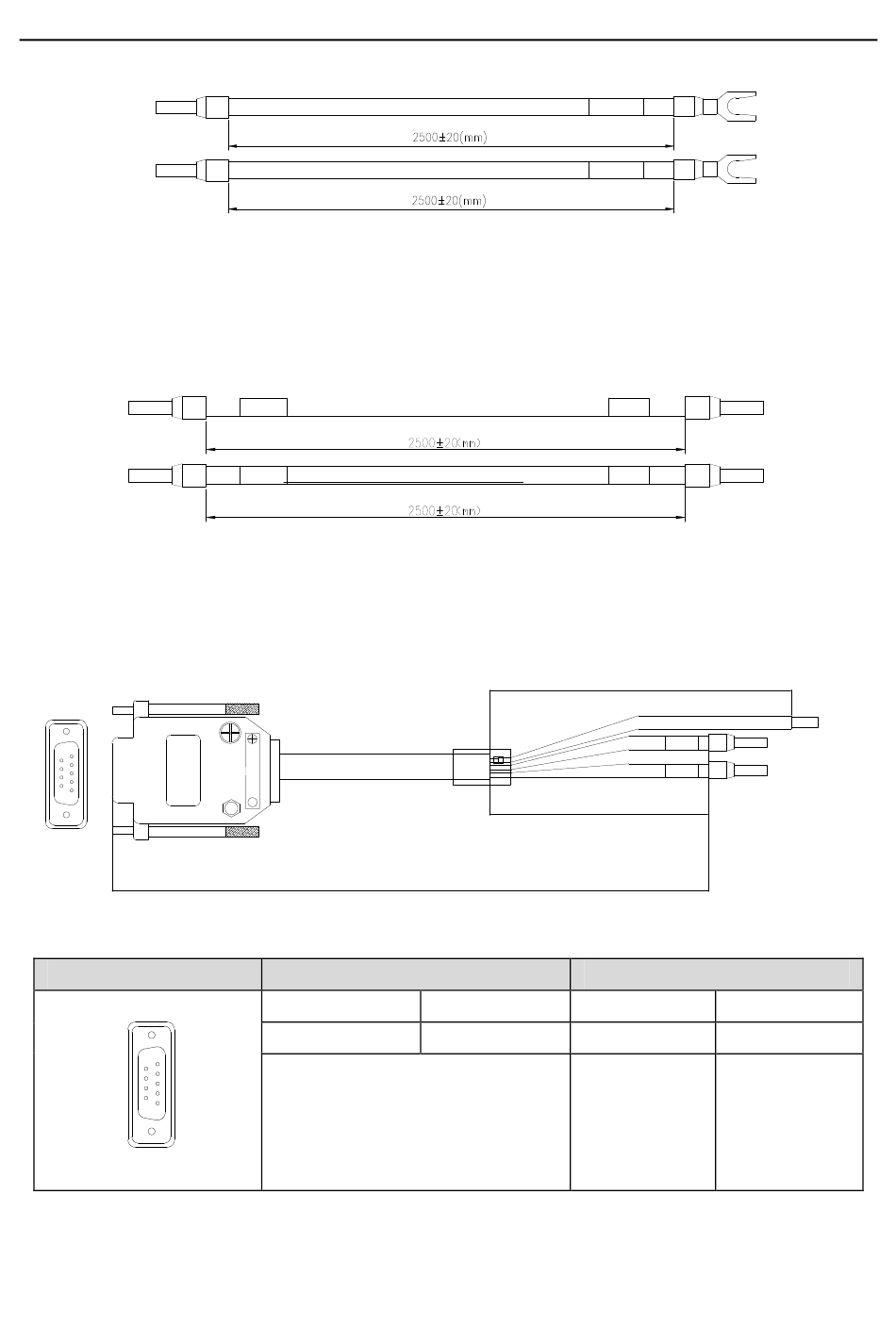

Figure B-61 Emergency stop cable diagram
24V
GND
Figure B-62 Touch screen power supply cable diagram
2500± 20(mm)
Figure B-63 Touch screen communication cable diagram
Terminal
P1(1PIN)
P1(6PIN)
Iron shell
Emergency stop signal
Emergency stop signal
100± 20(mm)
RX-(B)
RX+(A)
-144-
External optional accessories
24V
GND
260± 20(mm)
485A-
485A+
Cable
P3 485-
P4 485+
Shield layer
P2 grounding
cable
P2
P3
P4
