Goodrive300-01A series VFD for air compressor
B.2.5 Installation dimensions and description
B.2.5.1 Touch screen installation dimensions
B.2.5.2 Cut-out installation description
When you want to build the touch screen into the operation panel of the control cabinet, use the cross
screwdriver and metal installation snap-fit. The installation procedure is as follows:
Step 1 Cut a rectangular installation groove on the operation panel of the control cabinet according to
the cut-out dimensions, and then insert the touch screen from the front of the operation panel.
192mm
Operation panel
dimensions
71.4± 0.5
33.8± 0.3 7.3± 0.3
Embedded
installation
Snap-fit
fastening
position
4 in total

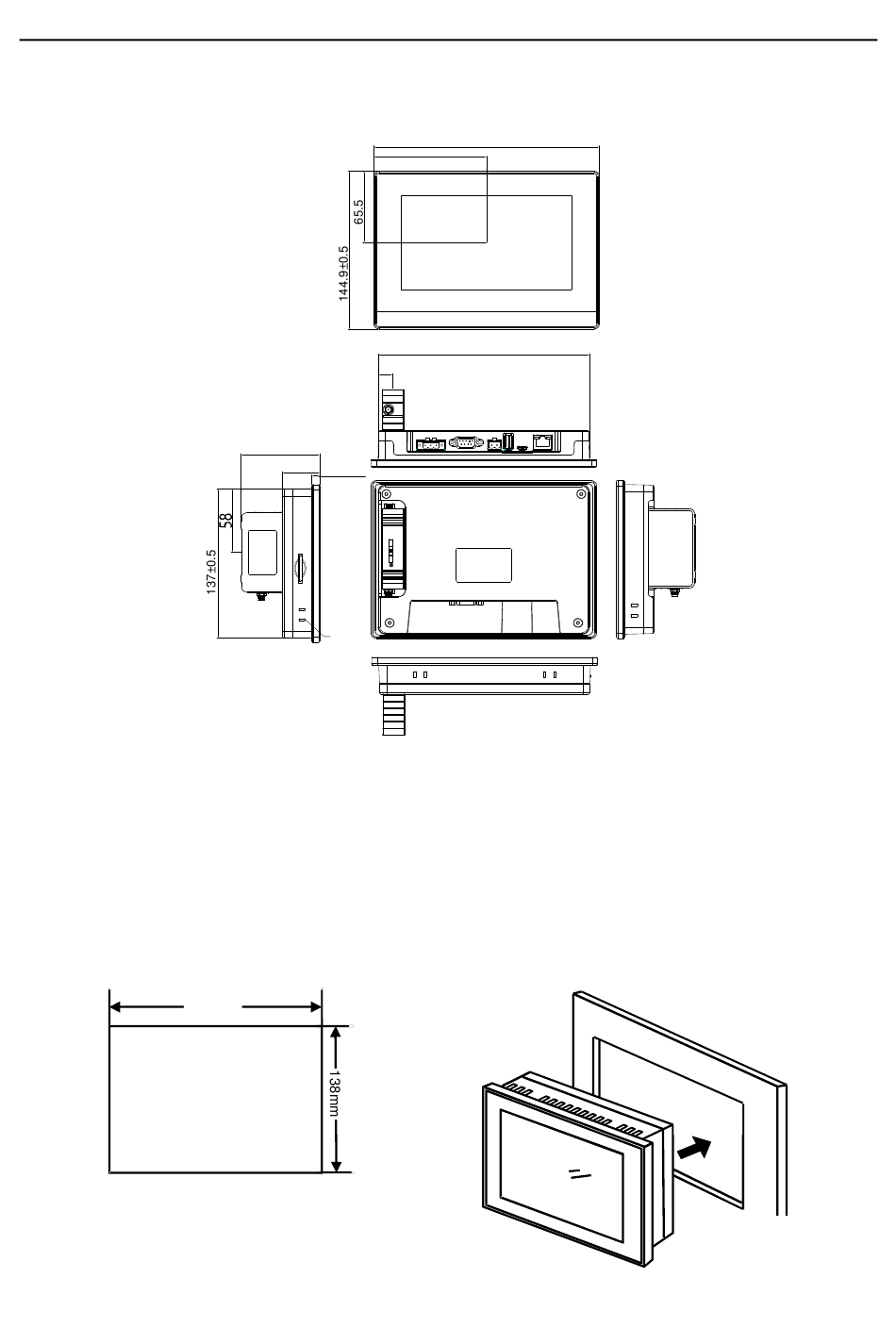

Figure B-64 Touch screen installation dimensions (unit: mm)
Cut-out
203.9± 0.5
102
190.8± 0.5
13.1
Touch
screen
-145-
External optional accessories
Operation
panel
