Goodrive300-01A series VFD for air compressor
Product dimension
A.4 Flange installation dimension

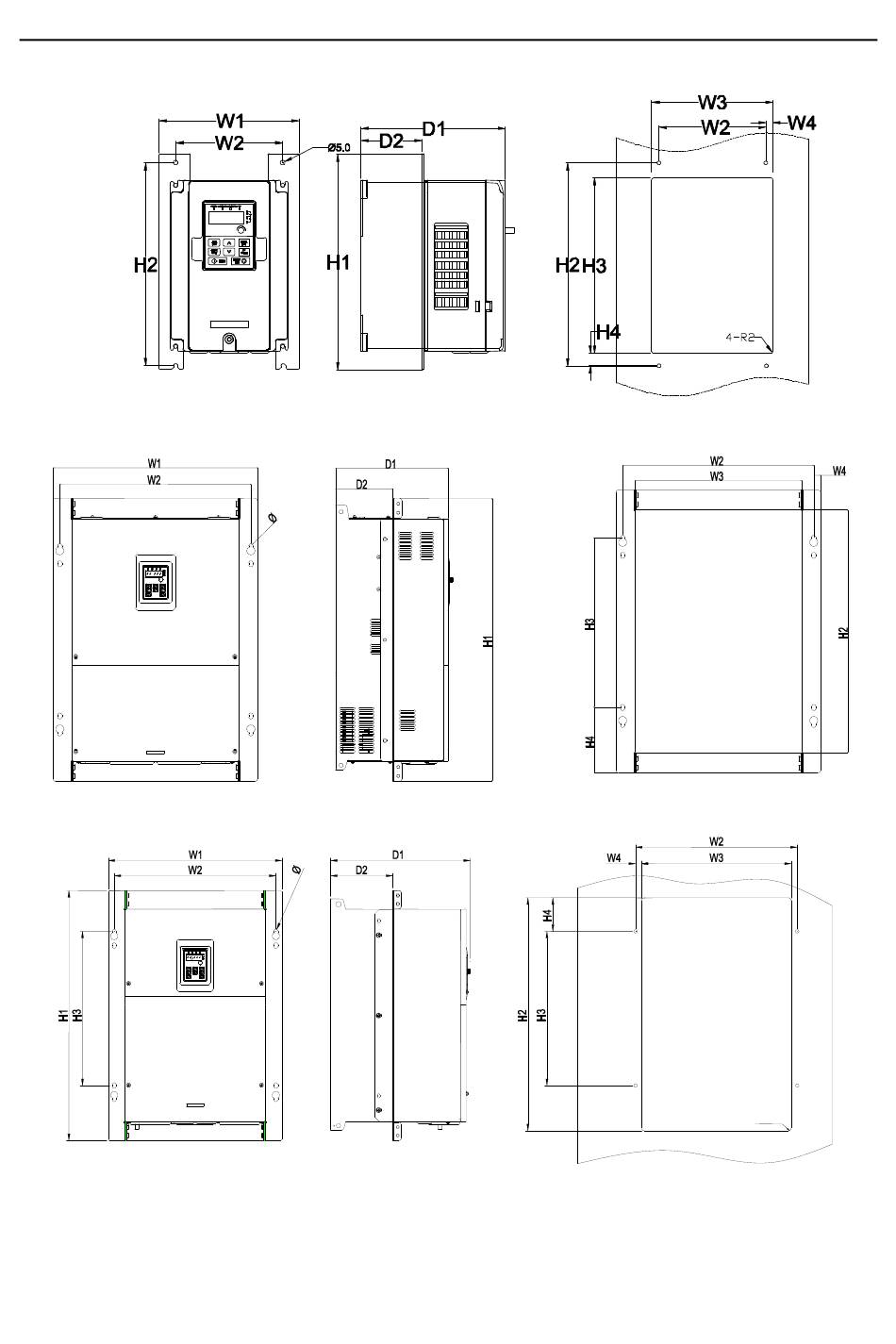

Figure A-10 7.5kW–55kW flange installation diagram
Figure A-11 75kW flange installation diagram
4-R2
Figure A-12 90kW–110kW flange installation diagram
-104-
