Goodrive300-01A series VFD for air compressor Commissioning instruction

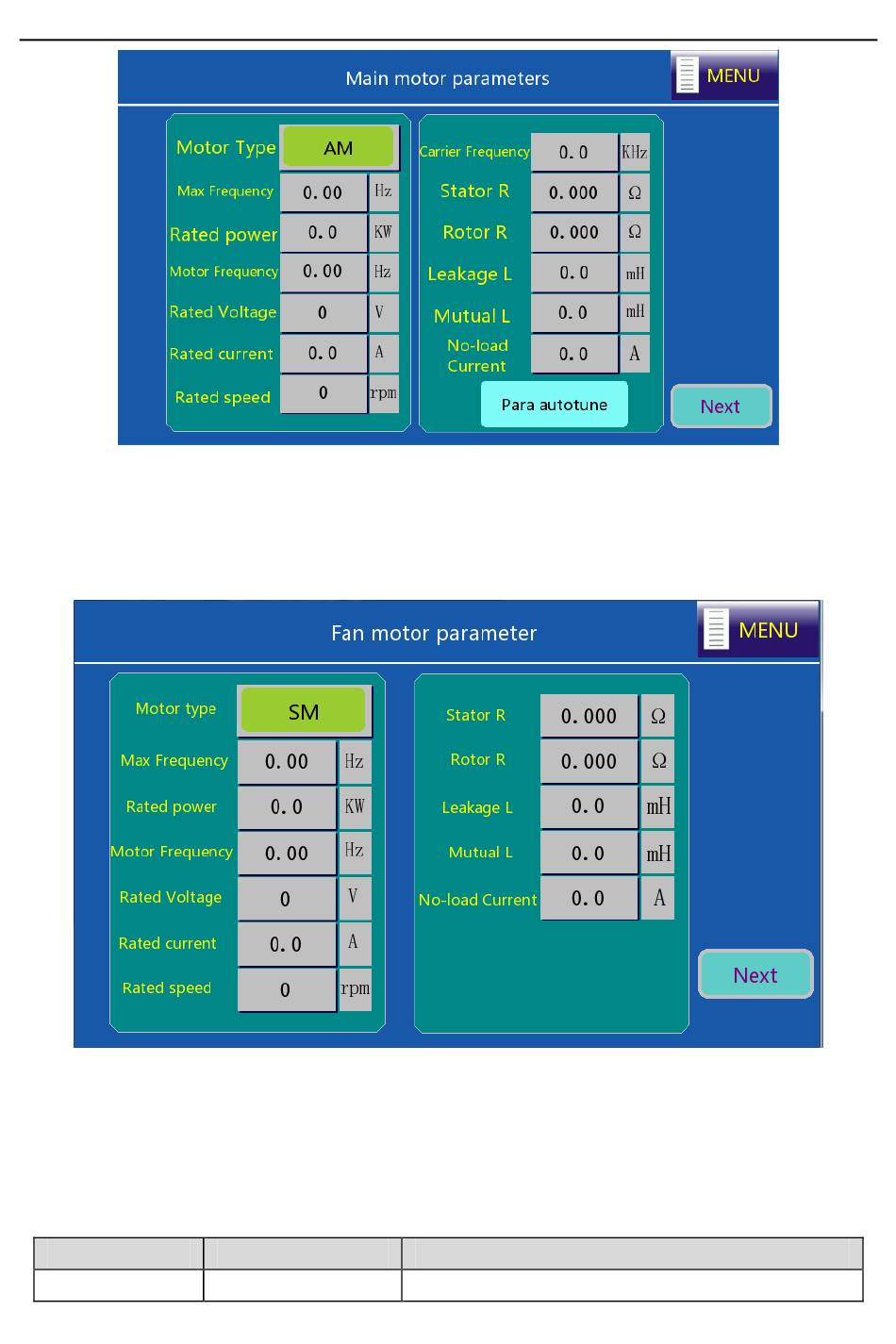

Figure 4-6 Main motor parameter setting interface
Set motor parameters according to the actual motor nameplate parameters, click Para autotune, and
then click Next. On the interface shown, set fan motor parameters (including the max frequency, rated
frequency, rated power, rated voltage, rated current, and rated rotational speed).
Figure 4-7 Fan motor parameter setting interface
Step 2 On the system configuration interface, click Set up Parameters. The system completes the
related parameter configuration automatically.
For details about parameter configuration, see the following table. S terminal and RO output terminal
functions can be modified according to the system wiring conditions.
Function code Parameter setting Description
P00.00 0 or 2 0: SVC mode 0 (applicable to AM, SM)
