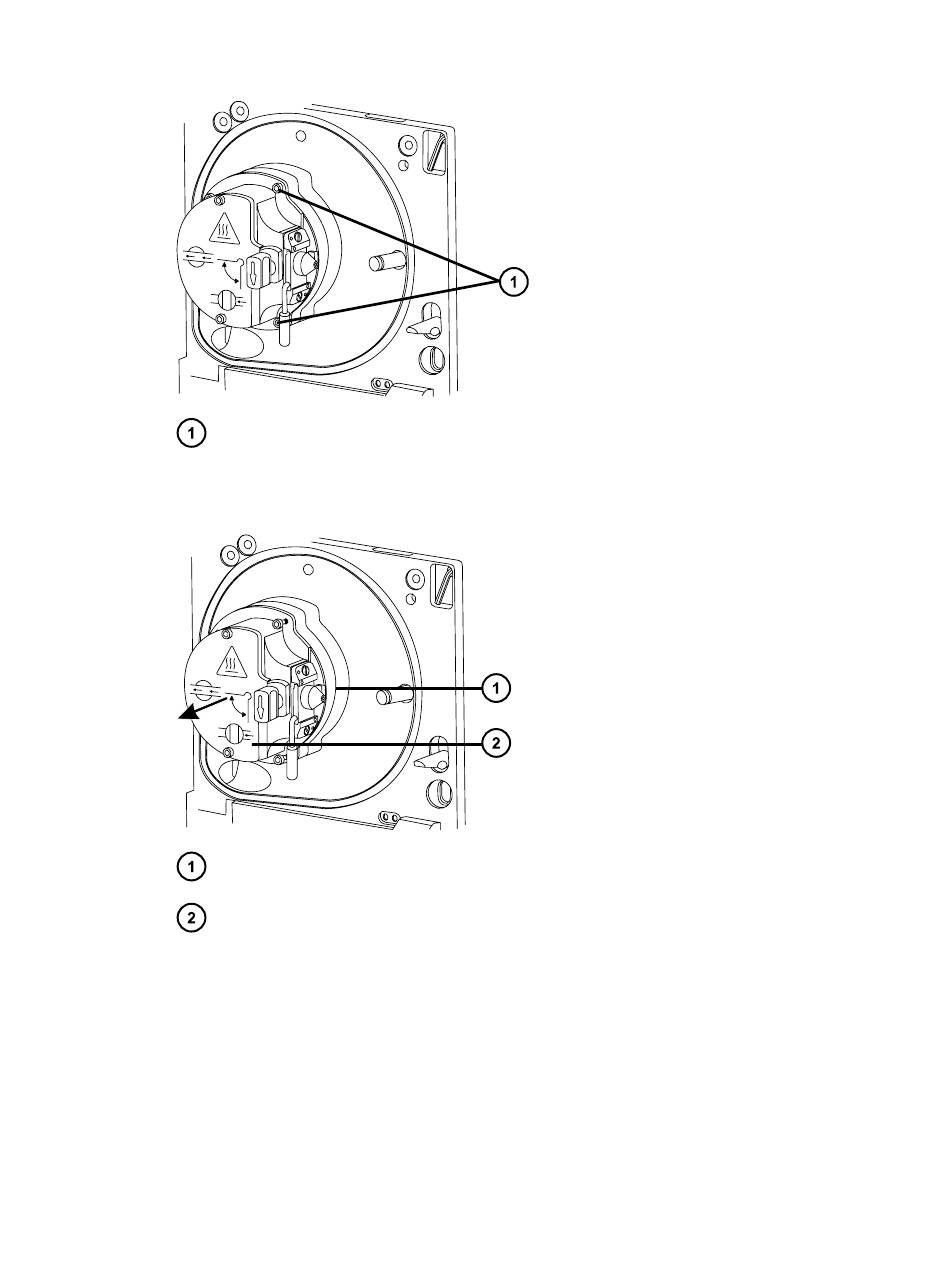

Figure 7–27: The ion block assembly securing screws
Ion block assembly securing screws
6. Remove the ion block assembly from the PEEK ion block support.
Figure 7–28: Removing the ion block assembly
PEEK ion block support
Ion block assembly
7.15.2 Disassembling the source ion block assembly
Required materials
• Chemical-resistant, powder-free gloves
• Combined 2.5-mm hex wrench and cone extraction tool
• O-ring removal kit
March 31, 2021, 715004496 Ver. 04 (previously released as Rev. D)
Page 123
