Waters Xevo G2-XS QTof Overview And Maintenance Manual page 158

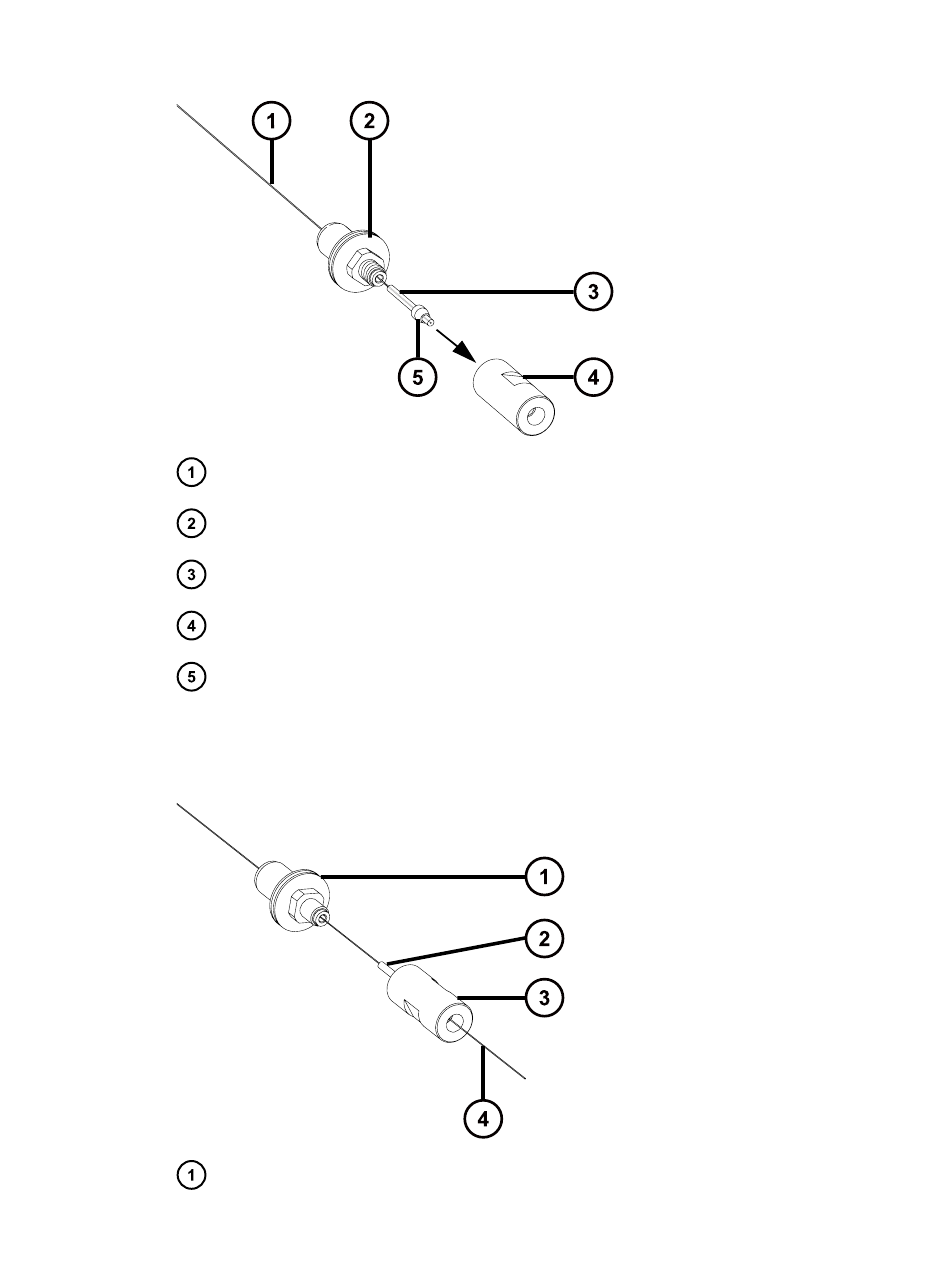

Figure 7–64: Inserting the capillary and liner tube into the PEEK union
Capillary
Slide port
Liner tube
PEEK union
Ferrule
7. Feed the capillary through the liner tube and PEEK union, to expose approximately 50 mm
of capillary on the opposite side of the union.
Figure 7–65: Feeding the capillary through the liner tube and PEEK union
Slide port
March 31, 2021, 715004496 Ver. 04 (previously released as Rev. D)
Page 158
