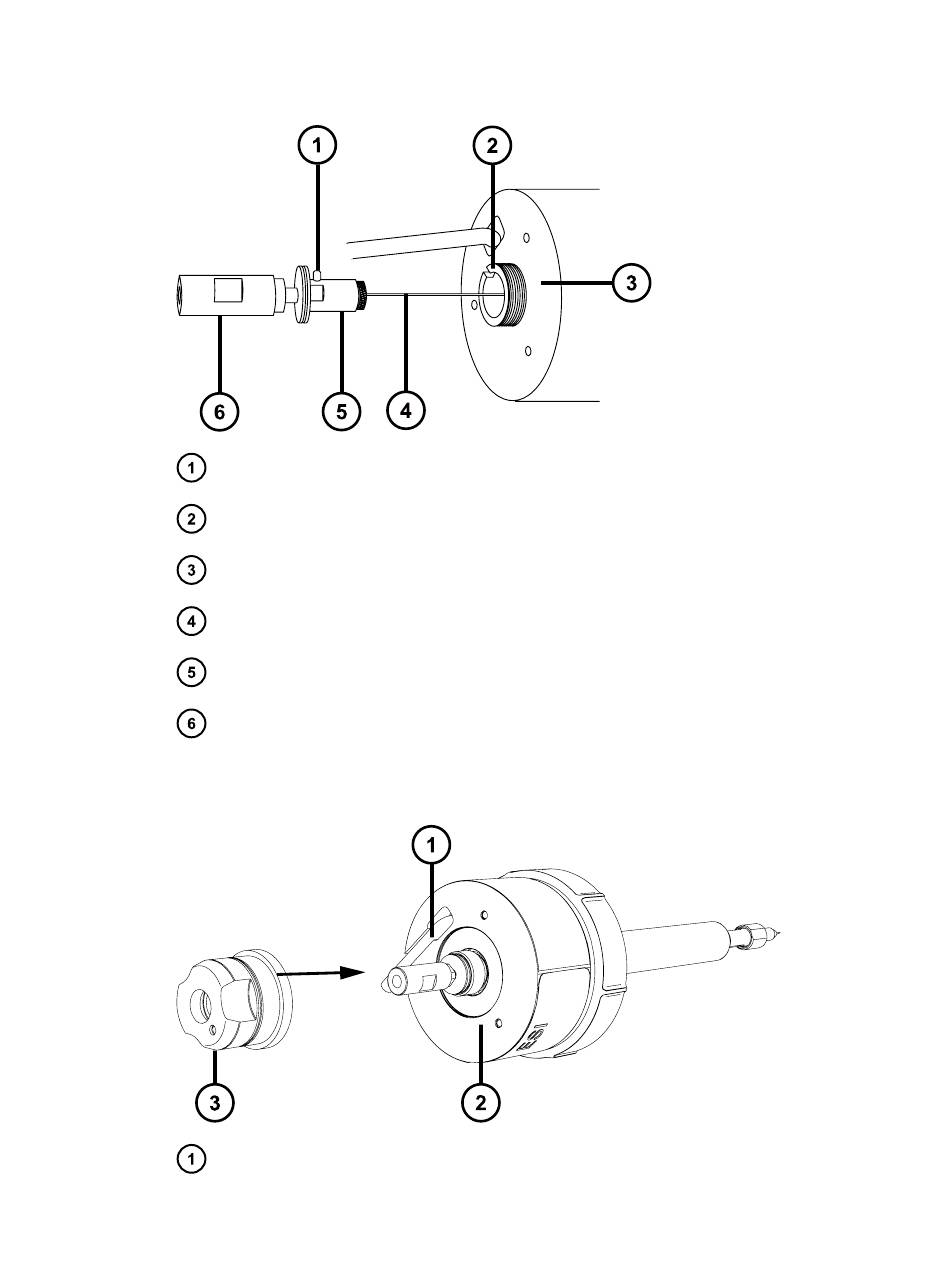

Figure 7–72: Pushing the slide port and PEEK union assembly into the probe
assembly
Dowel
Locating slot
ESI probe assembly
Capillary
Slide port
PEEK union
20. Fit the nebulizer adjuster knob to the PEEK union, and fully tighten the knob.
Figure 7–73: Fitting the nebulizer adjuster knob
Probe cable
March 31, 2021, 715004496 Ver. 04 (previously released as Rev. D)
Page 164
