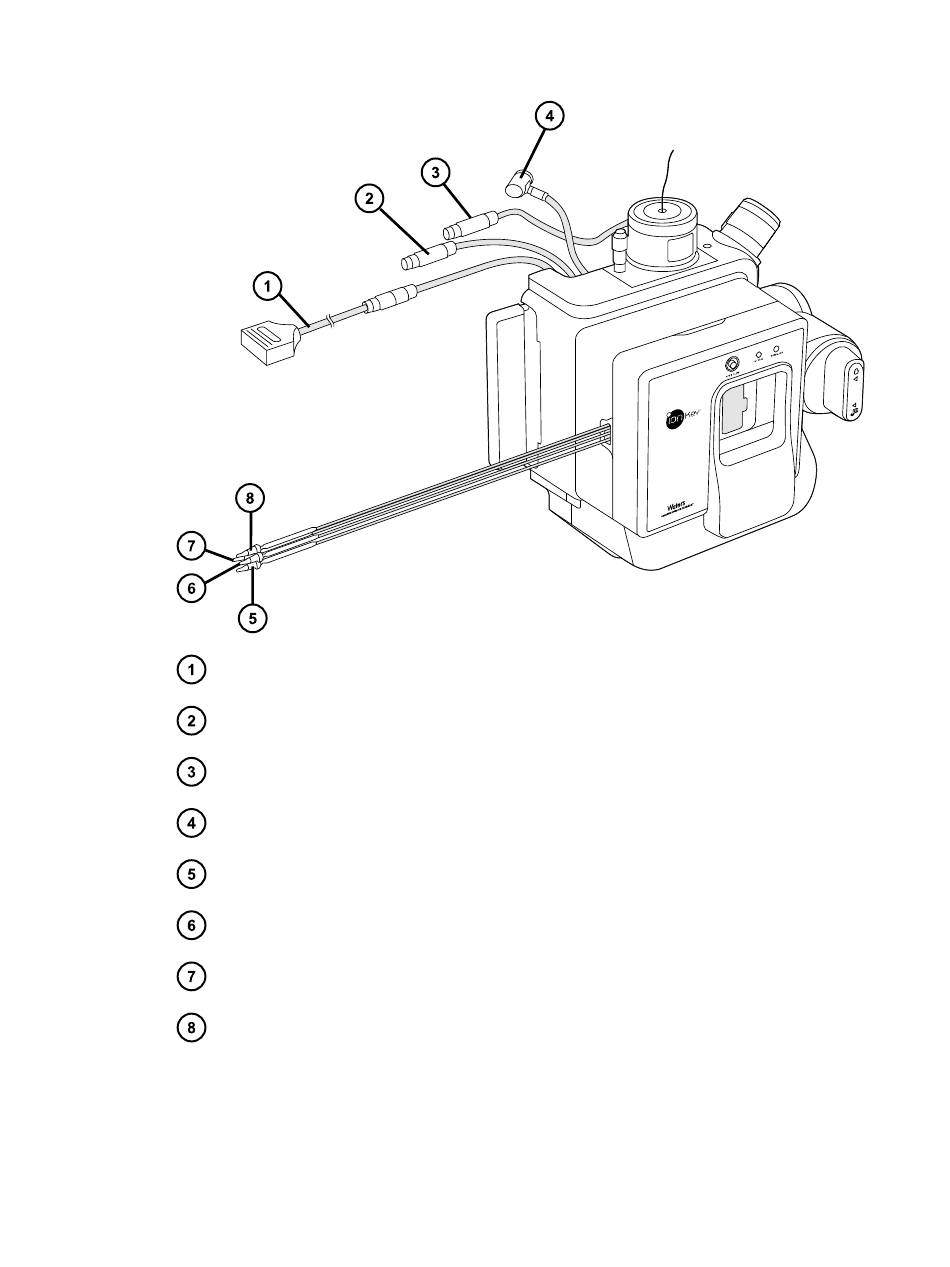

Figure 5–5: IonKey source connections
Data/power cable to PSPI connector on µSample manager
High-voltage cable
Reference-probe high-voltage cable
Options cable
Fluid waste line
Optional post-column addition (PCA) line
Fluid infusion line
Fluid inlet line
15. Connect the high-voltage cable (white) to the high-voltage supply outlet on the mass
spectrometer.
