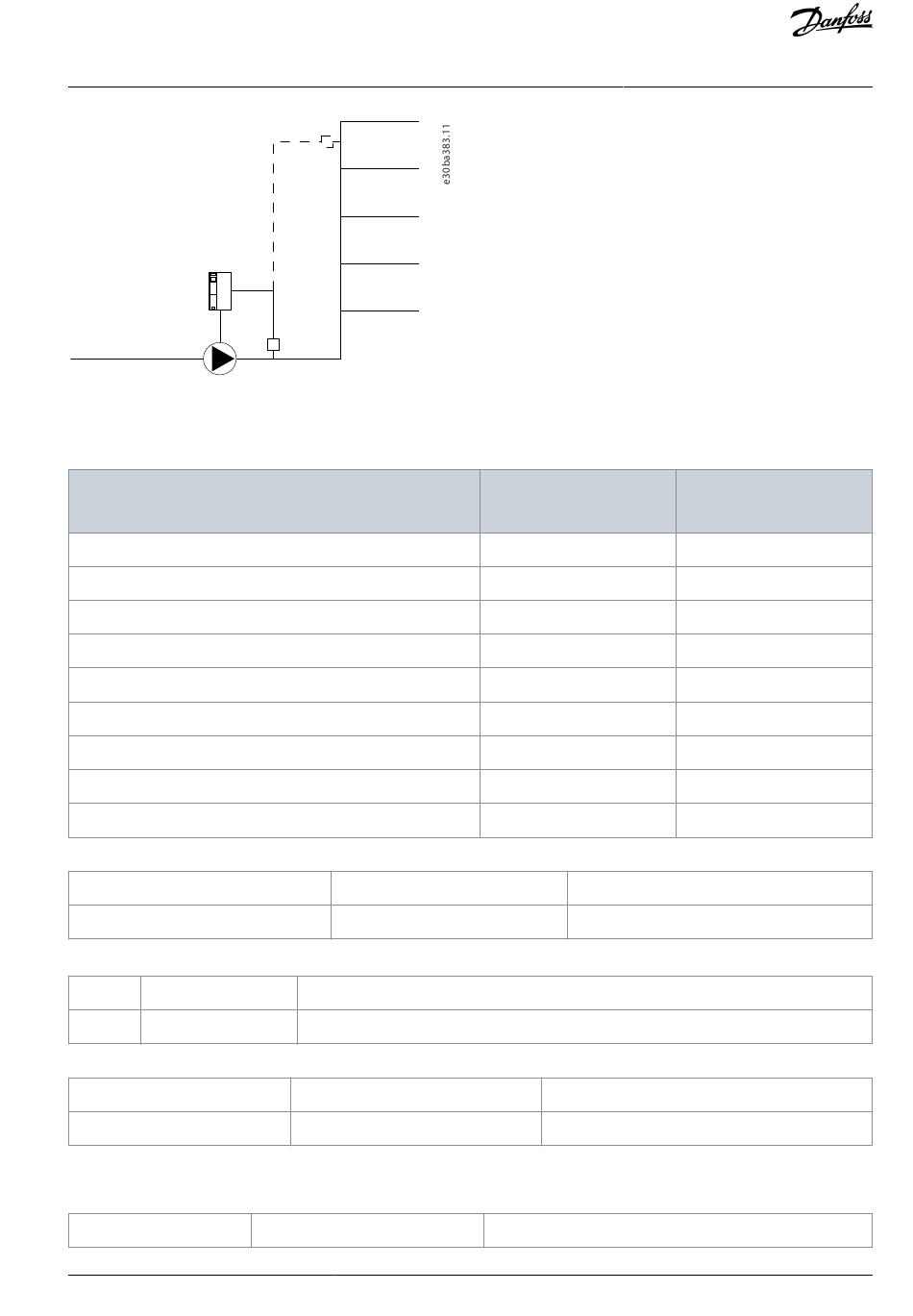

Illustration 19: Flow Compensation Set-up
There are 2 methods which can be employed, depending on whether the speed at system design working point is known.
Table 409: Speed at Design Point Known/Unknown
Parameter used
Parameter 22-80 Flow Compensation
Parameter 22-81 Square-linear Curve Approximation
Parameter 22-82 Work Point Calculation
Parameter 22-84 Speed at No-Flow [Hz]
Parameter 22-86 Speed at Design Point [Hz]
Parameter 22-87 Pressure at No-Flow Speed
Parameter 22-88 Pressure at Rated Speed
Parameter 22-89 Flow at Design Point
Parameter 22-90 Flow at Rated Speed
22-80 Flow Compensation
Default value: [0] Disabled
Conversion index: -
Table 410: Option:
[0] Disabled
[1] Enabled
22-81 Square-linear Curve Approximation
Default value: 100%
Conversion index: 0
Adjust shape of control curve. 0% = straight line, 100% = maximum parabola.
Table 411: Range:
Min: 0%
Danfoss A/S © 2021.07
Parameter type: Option
Data type: u_int8
Disable flow compensation of setpoint.
Enable flow compensation of setpoint.
Parameter type: Range
Data type: u_int8
Max: 100%
Speed at design point
KNOWN
+
+
+
+
+
+
-
-
-
2-setup: All setups
Change during operation: True
2-setup: All setups
Change during operation: True
Default value: 100%
AU363928304090en-000101 / 130R0982 | 175
Parameters
Speed at design point
UNKNOWN
+
+
+
+
-
+
+
+
+
