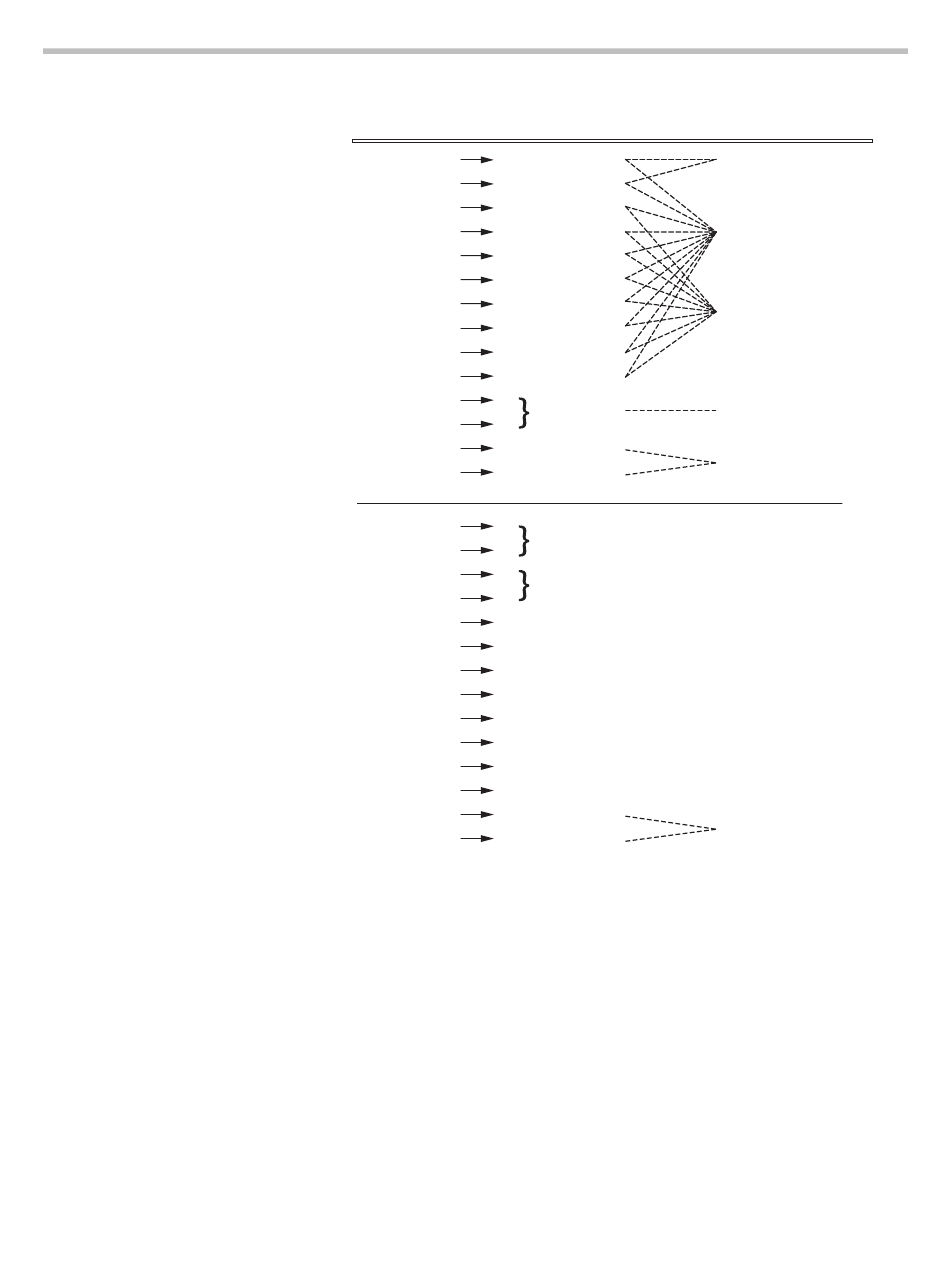

Virtual channel definitions could be defined as shown in the following figure.
Physical Channel
Inputs
1
2
3
4
5
6
7
8
9
10
11
12
Line
CLink2
1
Outputs
2
3
4
5
6
7
8
9
10
11
12
Line
CLink2
The virtual channel definitions make it easy to work with the different signals
since each virtual channel has a specific name and refers to a particular input
or output. For instance to take the phone off hook, commands are sent to the
"770-350-4400" virtual channel in this example. If there were multiple tele-
phony interfaces, each telephony interface would have its own unique virtual
channel definition. It is possible to create a virtual channel group of multiple
telephony virtual channels so all systems could be put onhook together at the
end of a call, etc.
In this example there are several virtual channel groups defined including
"Reinforced Mics", "All Mics", "All Table Mics", "Program Audio", "Remote
Receive Audio", and "Remote Send Audio".
Virtual Channel
"Wireless mic"
"Podium mic"
"Table mic 1"
"Table mic 2"
"Table mic 3"
"Table mic 4"
"Table mic 5"
"Table mic 6"
"Table mic 7"
"Table mic 8"
"VCR"
"770-350-4400"
"From HDX"
"Conferencing Amp"
"Record"
"770-350-4400"
"To HDX"
SoundStructure Design Concepts
Virtual Channel Groups
"Reinforced Mics"
"All Mics"
"All Table Mics"
"Program Audio"
"Remote Receive Audio"
"Remote Send Audio"
3 - 15
