Ethernet

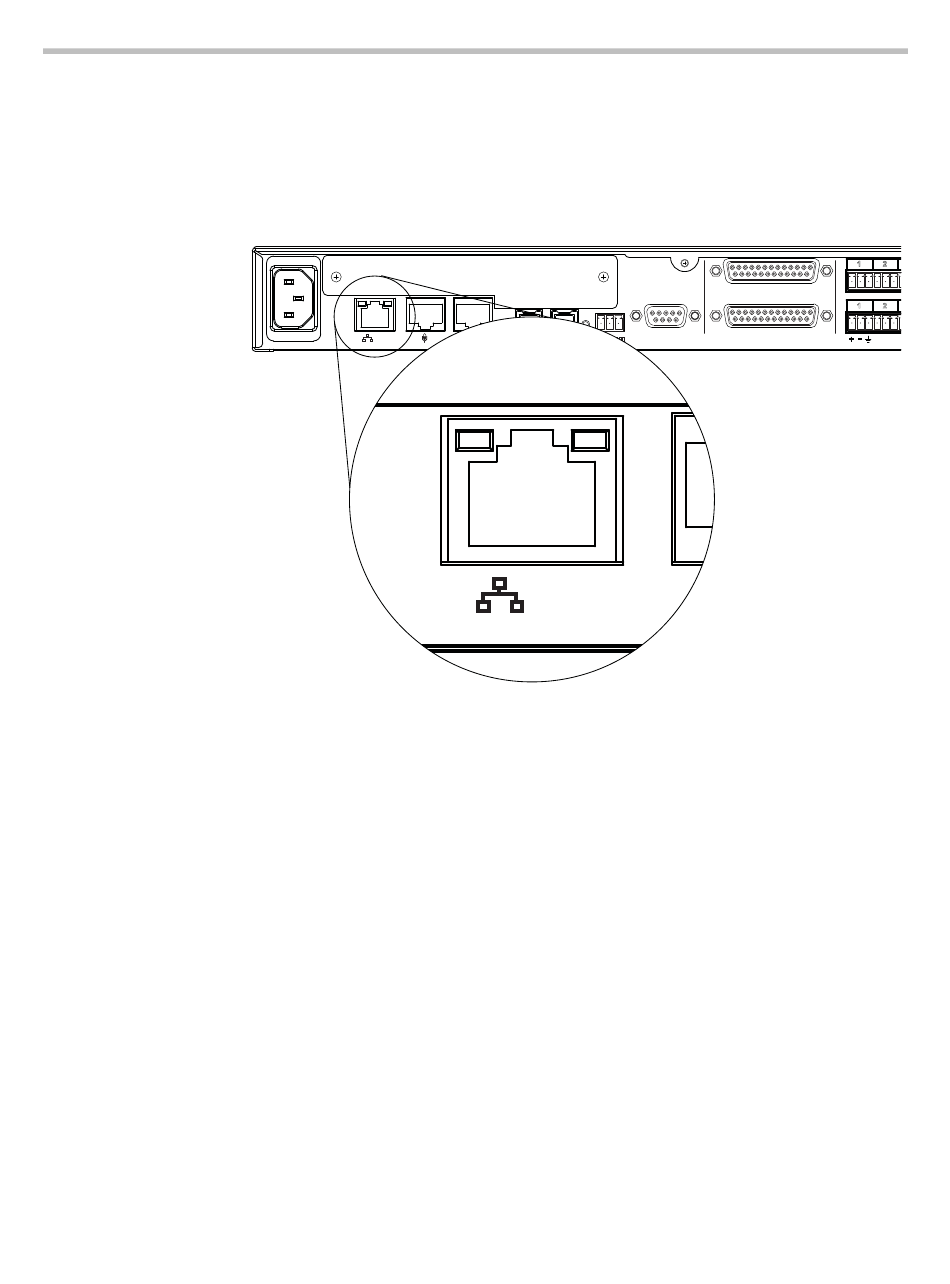

Each SoundStructure device has a rear-panel Ethernet interface for connecting
to the local area network as shown in the following figure. Connect to the
SoundStructure device using port 52774 and telnet communication. There is
no user login required to interface to SoundStructure devices over this port.
LAN C-LINK2
Control systems and PCs running SoundStructure Studio may communicate
with SoundStructure over this interface using port 52774. Each SoundStruc-
ture will support multiple simultaneous IP connections from its Ethernet
controller.
Each collection of SoundStructure devices that are linked via the OBAM inter-
face only requires a single LAN connection to control all the SoundStructure
devices. SoundStructure devices also support having multiple linked devices
with each device connected via Ethernet. Connecting to two networks could
be used to provide redundancy on the same network or can be used to connect
Command Protocol Reference Guide
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
IN OBAM OUT IR 12V
LAN
1 2
REMOTE CONTROL 1
1 2
REMOTE CONTROL 2
A - 3
