Each SoundStructure C-series device may be used with traditional analog
microphones, with Polycom's HDX digital microphone arrays
information on using the Polycom HDX digital microphone arrays, see Chap-
ter 6.
Typical applications of the SoundStructure C-series conferencing products are
audio and video conferencing where two or more remote locations are confer-

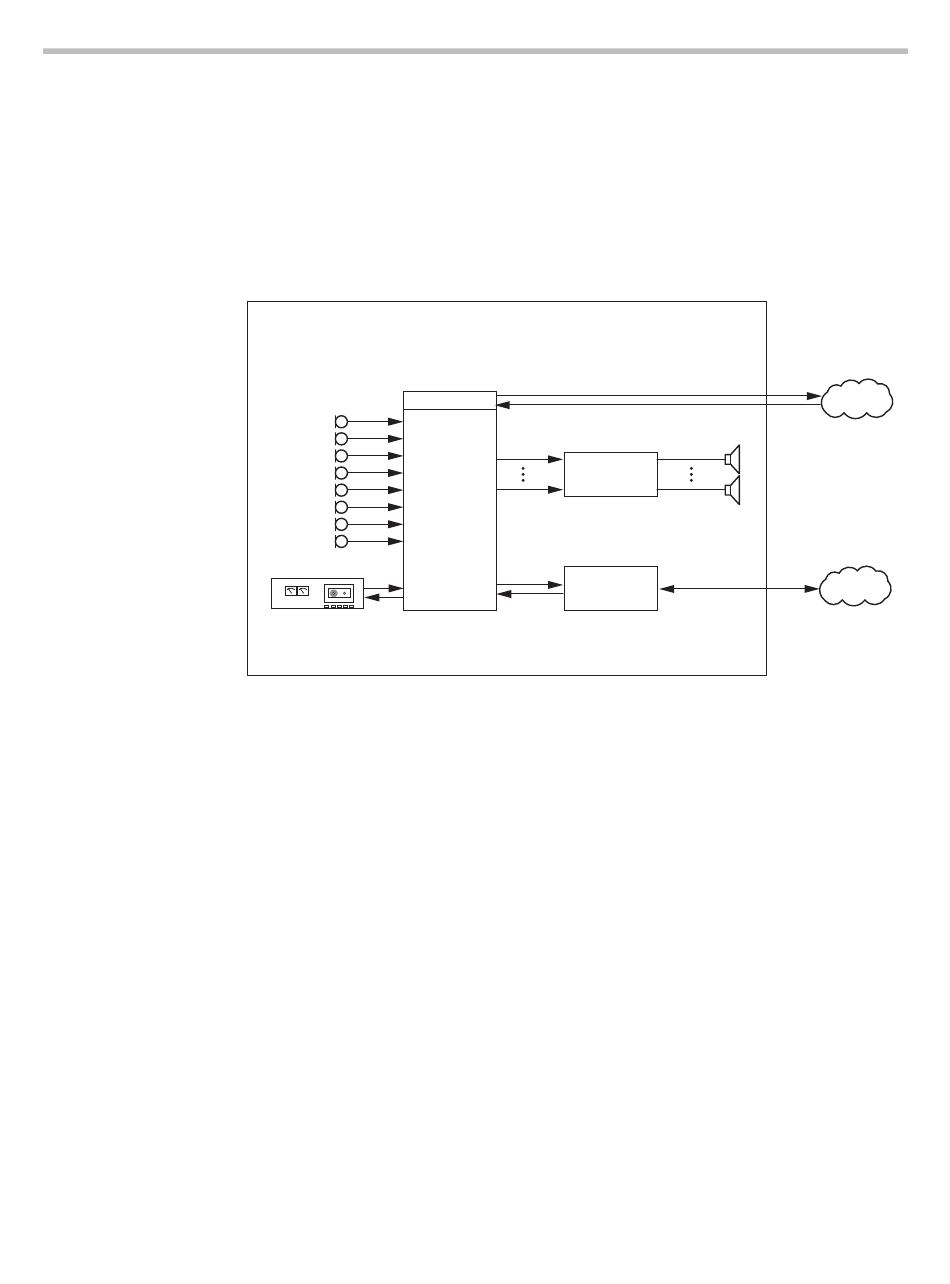

enced together. The typical connections in the room are shown in the
following figure.
SoundStructure Installation
Microphones
SoundStructure
Playback/Record
Favorite Content
Before designing with SoundStructure products, the details of the SoundStruc-
ture signal processing capabilities will be presented.
1
Requires SoundStructure firmware release 1.1 or higher.
Telephony
Telco
Amplifier
C16
Video Codec
1
. For detailed
PSTN
Network
Network
