Pin Out Summary - Polycom SoundStructure C16 Design Manual

Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12

Pin Out Summary

PSTN Cable
15 - 4
Drawings and part numbers are provided for reference only. Other than cables
provided by Polycom, Polycom claims no responsibility or liability for the quality,
performance, or reliability of cables based on these reference drawings. Contact a
Polycom reseller to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for particular applications.

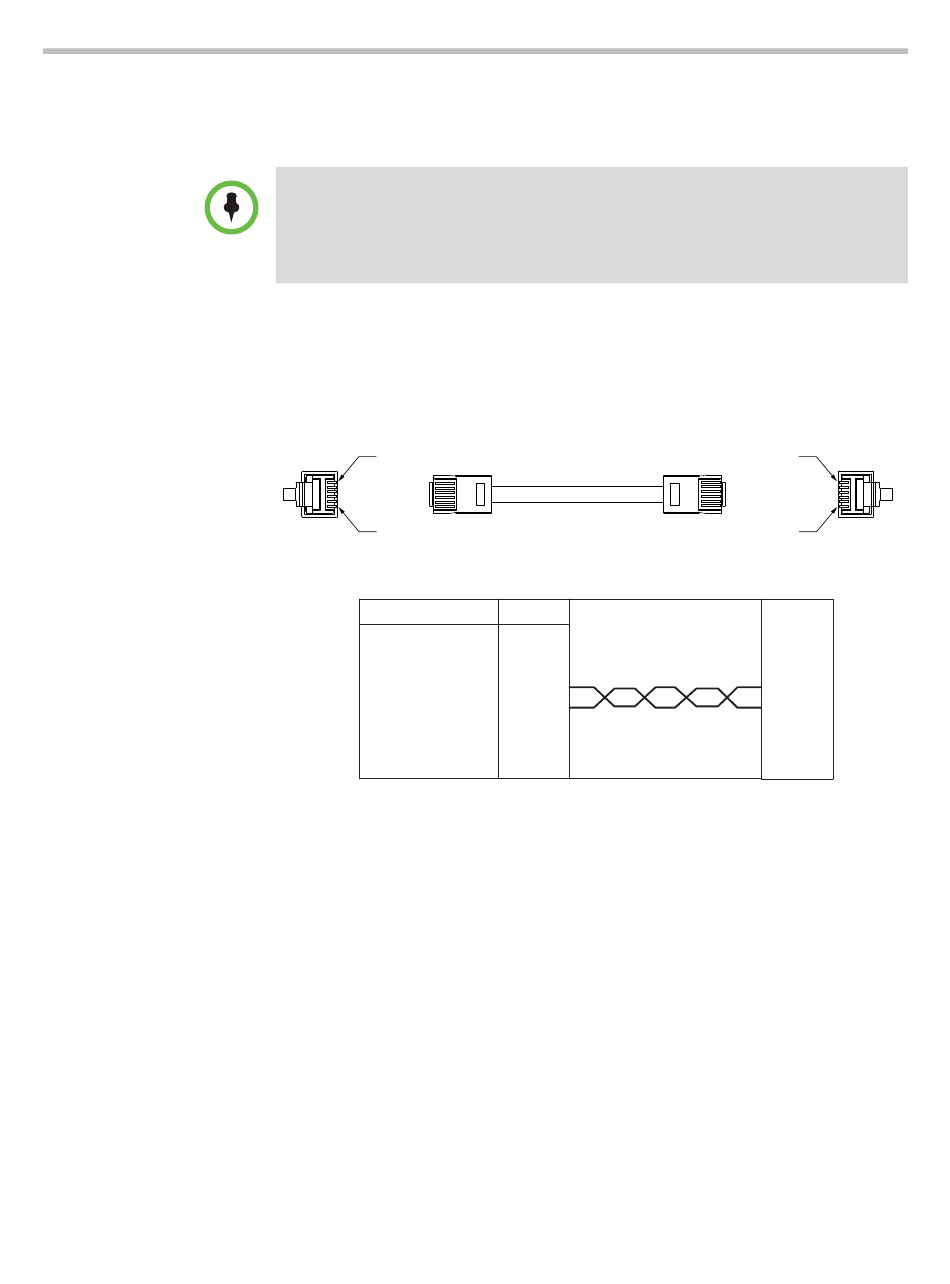

To build a custom telephone cable, use 26AWG twisted-pair cable using the
wiring connections shown in the following figure.
6
1
P1
SIGNALS
Unused
Unused
RING
TIP
Unused
Unused
P2
P1
1
2
3
4
5
6
1
6
P2
1
2
3
4
5
6
