Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12

Combining C-series and SR12 devices

C-series devices may be linked with SR12 devices for up to a total of eight

SoundStructure devices. When a SoundStructure SR12 is used with C-series

products, the SR12 should be used only to support additional non-microphone

inputs such as additional program audio sources or to support additional

output signals such as for driving additional loudspeaker zones or other out-

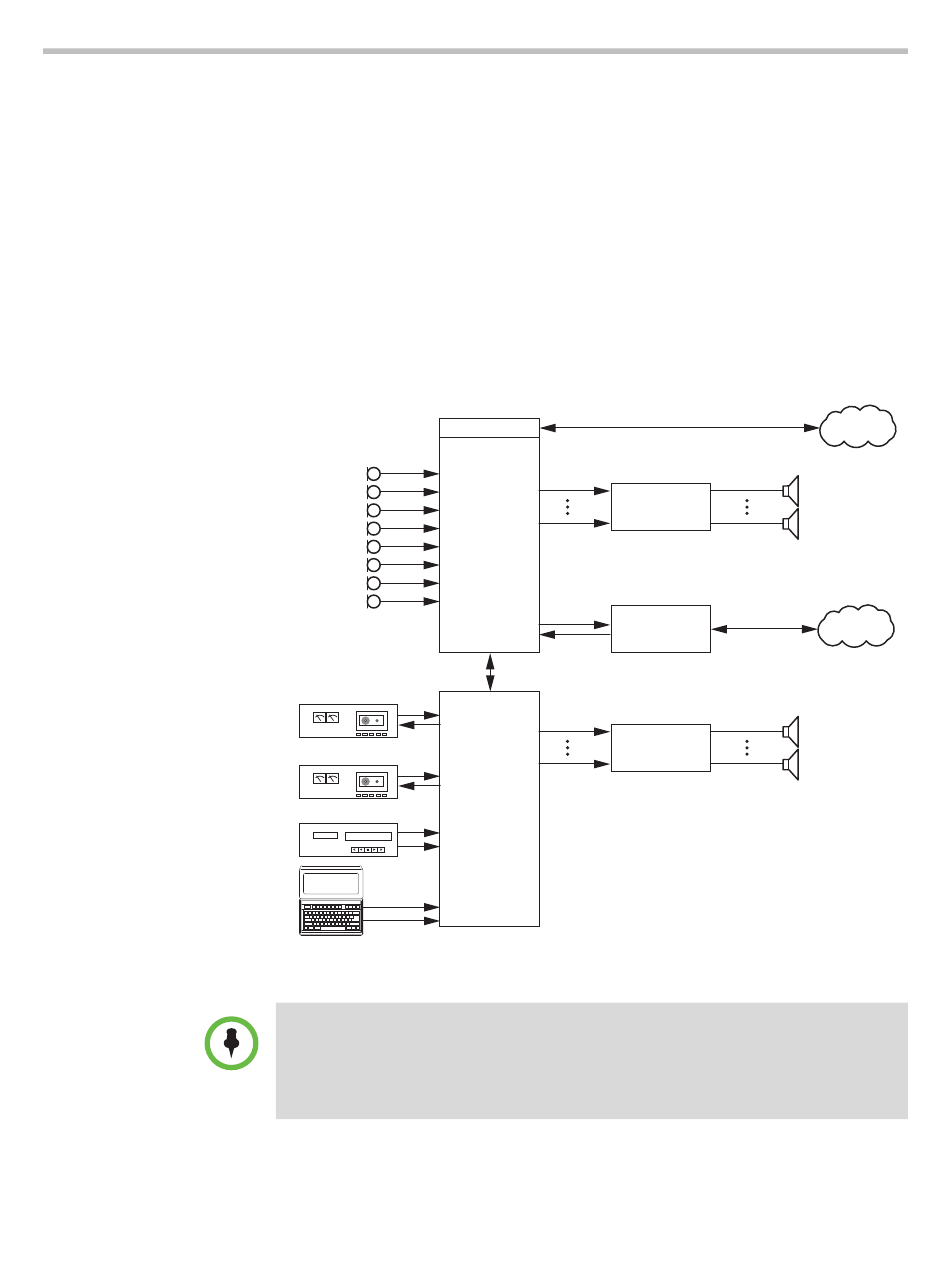

puts as shown in the following figure.

The SoundStructure SR12 does not include acoustic echo cancellation process-

ing on the microphone inputs. Do not use an SR12 to add more conferencing

microphones to an installation as the acoustic echoes will not be removed by

the SR12. Use additional SoundStructure C-series units if necessary to add

additional conferencing microphones to a SoundStructure system.

SoundStructure

Playback/Record

Favorite Content

Playback/Record

Favorite Content

SoundStructure

Do not use an SR12 to add conferencing microphones to a SoundStructure

C-series conferencing design. The SR12 does not include acoustic echo

cancellation processing and any microphones used in a conferencing application

that are connected to the SR12 will have a strong acoustic echo that can only be

removed by connecting those microphones to a SoundStructure C-series product.

Loudspeakers

Loudspeakers
