Polycom SoundStructure C16 Design Manual page 355

</PHONE_IMAGES>
where the names UCS_4.0.1_rts30, UCS_4.0.1_rts43, and UCS_4.0.1_rts46
are directory names that store their respective versions of the
3111-33215-001.sip.ld software files. These directories must match the path
specified in the XML file and the directories should be located in the main
directory that was configured for the web server. The contents of these
subdirectories must include the file 3111-33215-001.sip.ld that
corresponds to the version specified in the software.xml file.
In this example, the web server at 192.168.1.200 has a root directory that
was defined during the installation of the web server to be c:\http\files.
The directories UCS_4.0.1_rts30, etc., are subdirectories of this root
directory. In this example these directories are subdirectories of the
directory c:\http\files\.
4. Enter the IP address of a web server along with the name of the xml file
that contains the appropriate firmware versions created in the previous
step in the Custom server address field.
For example: http://192.168.1.200/software.xml

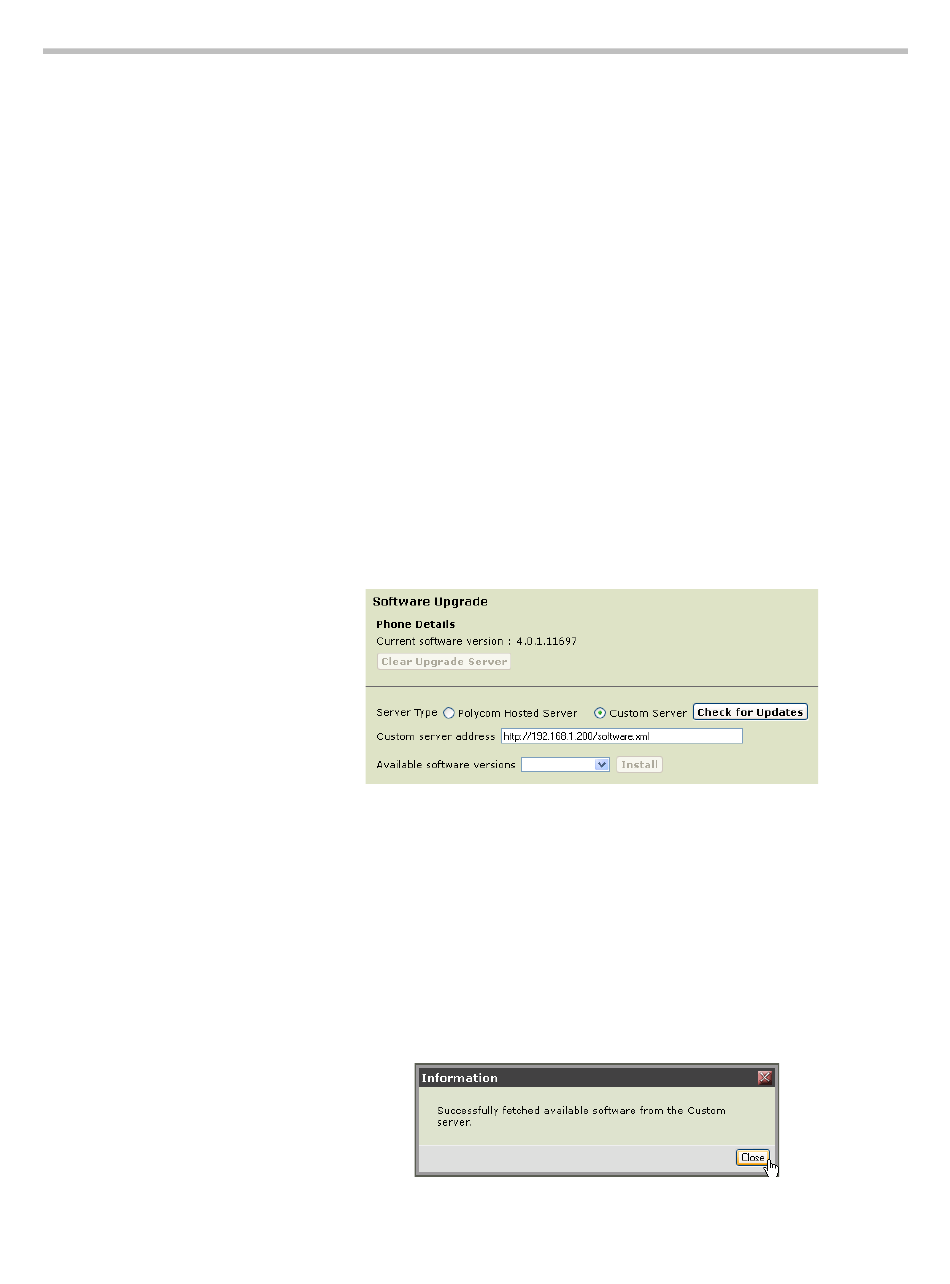

as shown in the following figure.
Please note that steps 3 and 4 could also use an FTP server by replacing
all the references to http:// with ftp://username:password@ in the example
XML file in step 3 and in the address of the server in this step. For
example, you could use ftp://bill123:1234@192.168.1.200/software.xml
instead of http://192.168.1.200/software.xml, where bill123 was the
username and 1234 the password configured for the ftp server.
5. From the Web Configuration Utility, select Check for Updates. If the web
server can be reached and new software versions found, the Web
Configuration Utility will indicate that new versions of software were
found as shown in the following figure.
The SoundStructure VoIP Interface
12 - 57
