Polycom SoundStructure C16 Design Manual page 55

16
A
IN OUT
OBAM
16
B
IN
OUT
OBAM
16
C
IN OUT
OBAM
Device A's inputs and outputs become the first sixteen physical inputs and six-
teen outputs on the system, device B's inputs and outputs become the next
sixteen physical inputs and next sixteen physical outputs on the system, and
device C's inputs and output become the last sixteen physical inputs and six-
teen physical outputs on the system.
Local Numbering
Device (input and output)
A
B
C

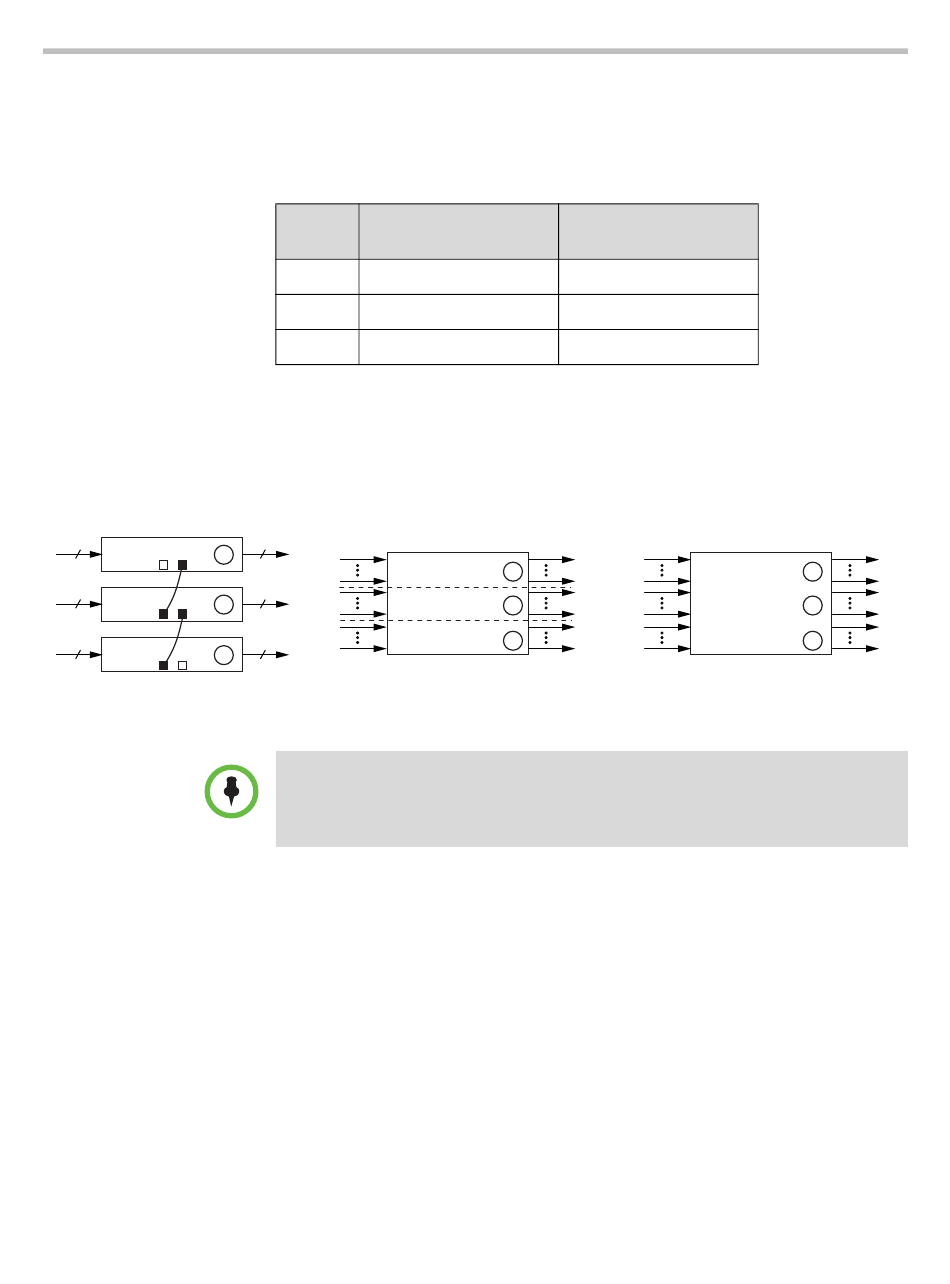

The system built from the top-to-bottom, OBAM out-to-OBAM-in linking
results in a simple way of numbering the physical input and output connec-
tions in a simple linear sequential fashion. Conceptually the linking of these
devices should be viewed as creating one large system from the individual
systems as shown in the next figure.
16
1
16
1
16
16
1
16
16
The numbering of the physical channels in a multi-device system will be determined
by how the devices are linked over OBAM. Changing the OBAM link cabling after a
system has been designed and uploaded to the devices will cause the system to
not operate properly.
If multiple devices are OBAM linked in a different order, the numbering of the
physical channels will be different. As an example of what not to do, consider
the following figure where device C is connected to both device A and to
device B. Based on the physical ordering algorithm described previously,
device A only has an OBAM OUT connection which makes this device the first
device in the link. Next, device C becomes the second device in the link and
System Numbering
(input and output)
1 - 16
1 - 16
1 - 16
1
A
16
1
B
16
1
C
16
SoundStructure Design Concepts
1 - 16
17 - 32
33 - 48
1
16
17
32
33
48
1
A
16
17
B
32
33
C
48
3 - 7
