The SoundStructure VoIP Interface

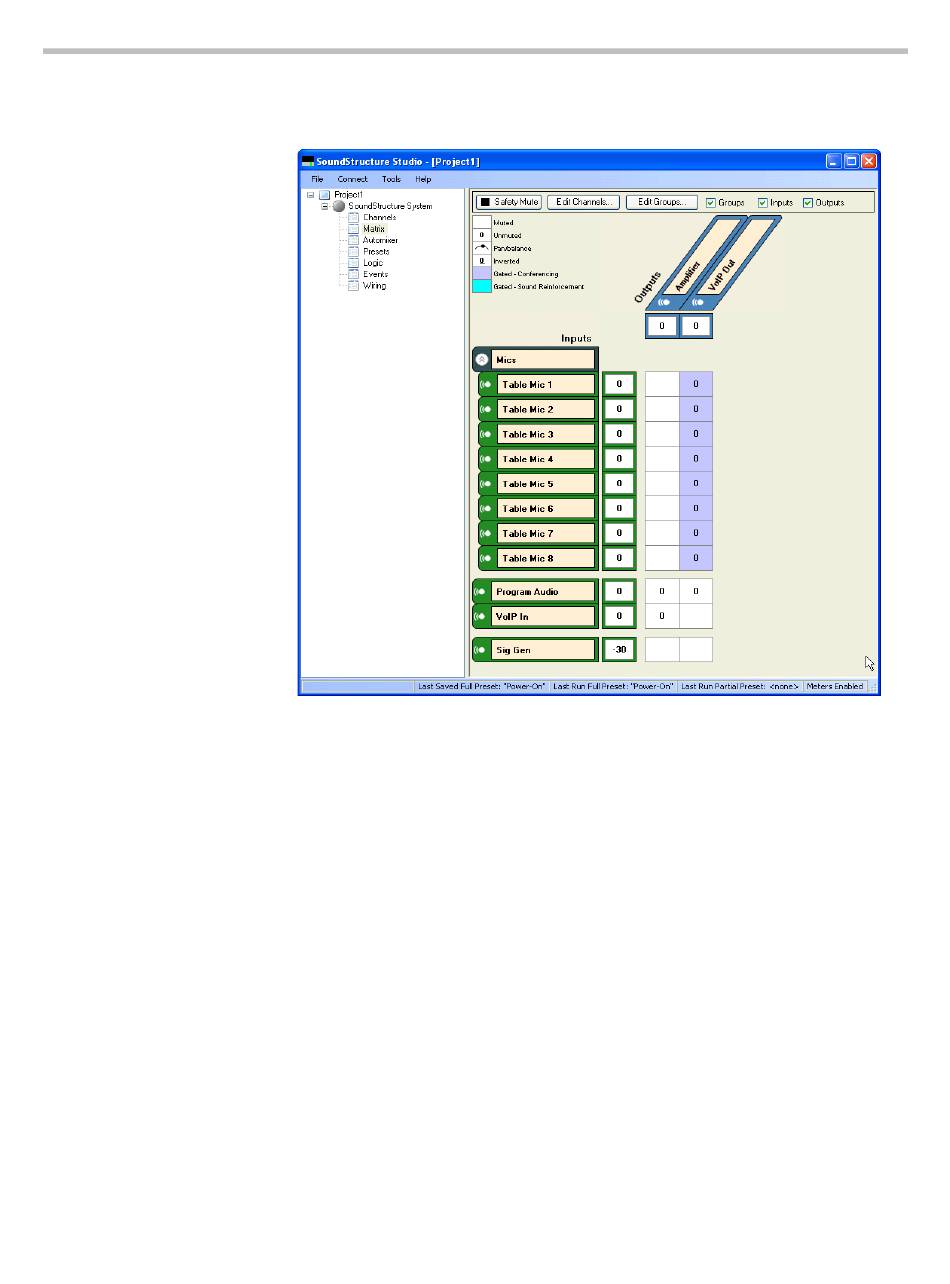

The resulting project is shown in SoundStructure Studio. Select the Matrix tab
to view the matrix as shown next.
By default the audio from the VoIP In and Program Audio channels are routed
to the Amplifier while the Program Audio and the echo cancelled microphone
audio are routed to the VoIP Out channel.
12 - 15
