Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
6 - 22

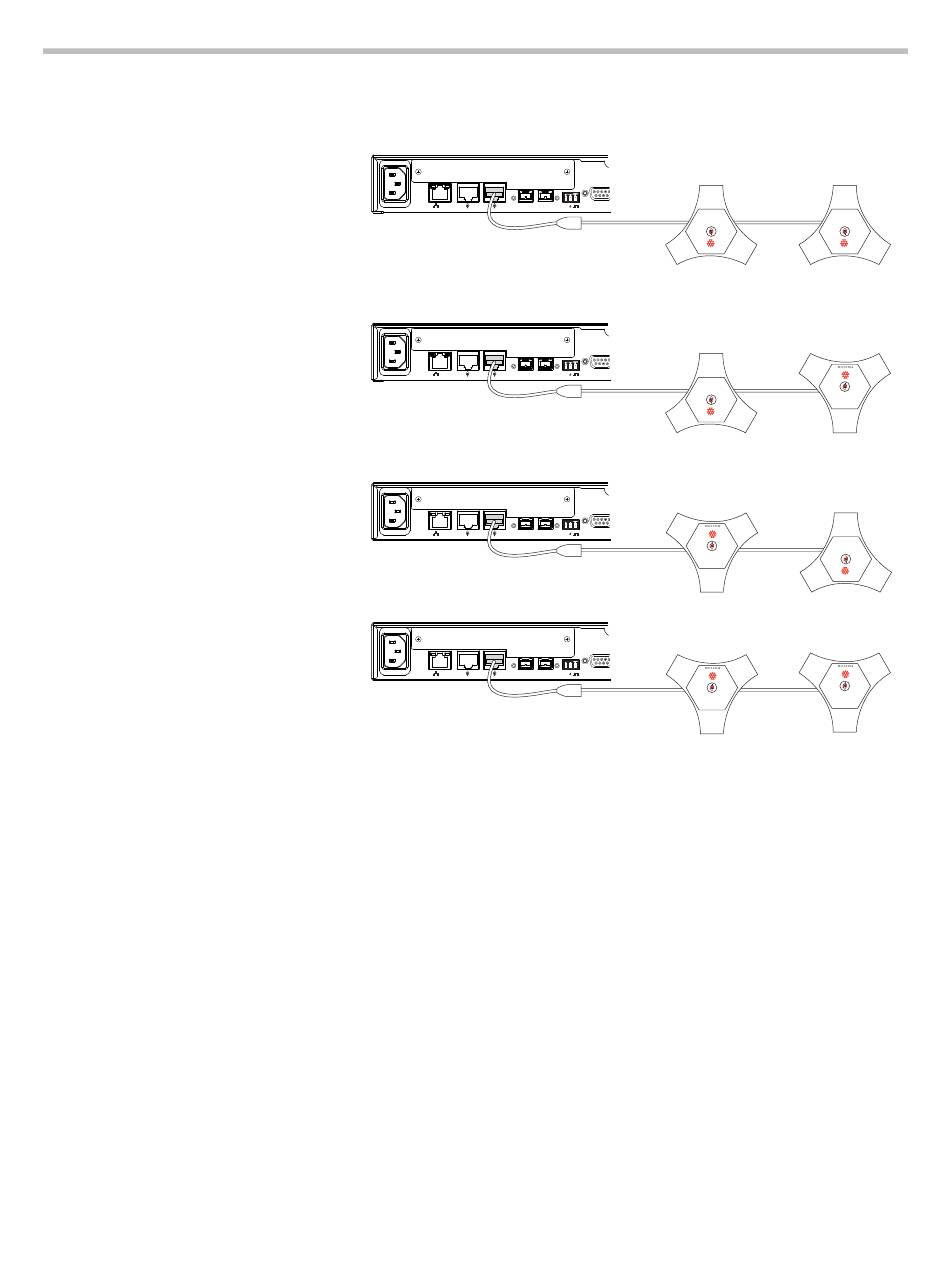

The orientation of the microphone does not affect the sequential numbering as
shown in the following figure.
LAN
LAN
LAN
LAN
When an HDX system is also connected over the CLink2 interface and the
digital microphones connected directly to the SoundStructure device, the
numbering of the digital microphone arrays will be the same as the previous
figures.
