Options and Accessories

10 Options and Accessories
Danfoss offers a wide range of options and accessories for
VLT AutomationDrive.
10.1.1 Mounting of Option Modules in
Slot A
Slot A position is dedicated to Fieldbus options. For further
information, see separate operating instructions.
10.1.2 Mounting of Option Modules in
Slot B
The power to the frequency converter must be discon-
nected.
It is strongly recommended to make sure the parameter
data is saved (i.e. by MCT 10 software) before option
modules are inserted/removed from the drive.
•
Remove the LCP (Local Control Panel), the
terminal cover, and the LCP frame from the
frequency converter.
•
Fit the MCB10x option card into slot B.
•
Connect the control cables and relieve the cable
by the enclosed cable strips.
* Remove the knock out in the extended LCP
frame, so that the option will fit under the
extended LCP frame.
•
Fit the extended LCP frame and terminal cover.
•
Fit the LCP or blind cover in the extended LCP
frame.
•
Connect power to the frequency converter.
•
Set up the input/output functions in the
corresponding parameters, as mentioned in
4.5 General Specifications.
FC 300 Design Guide

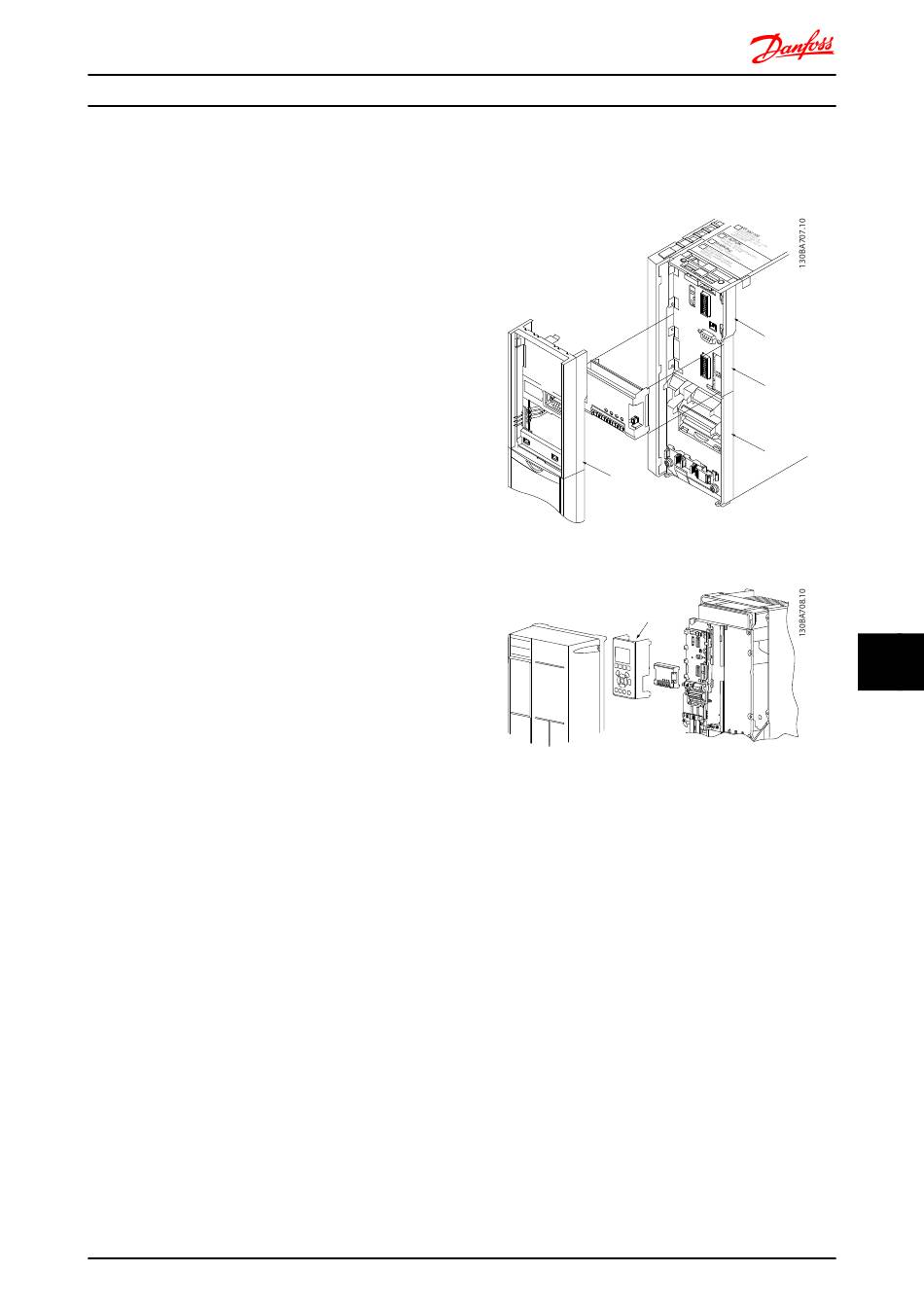

Illustration 10.1 Frame sizes A2, A3 and B3
Illustration 10.2 Frame sizes A5, B1, B2, B4, C1, C2, C3 and C4
®
