Danfoss VLT AutomationDrive Design Manual page 149

Mechanical Installation - ...
Terminal locations - Inverter Frame size F12 and F13
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
7 7

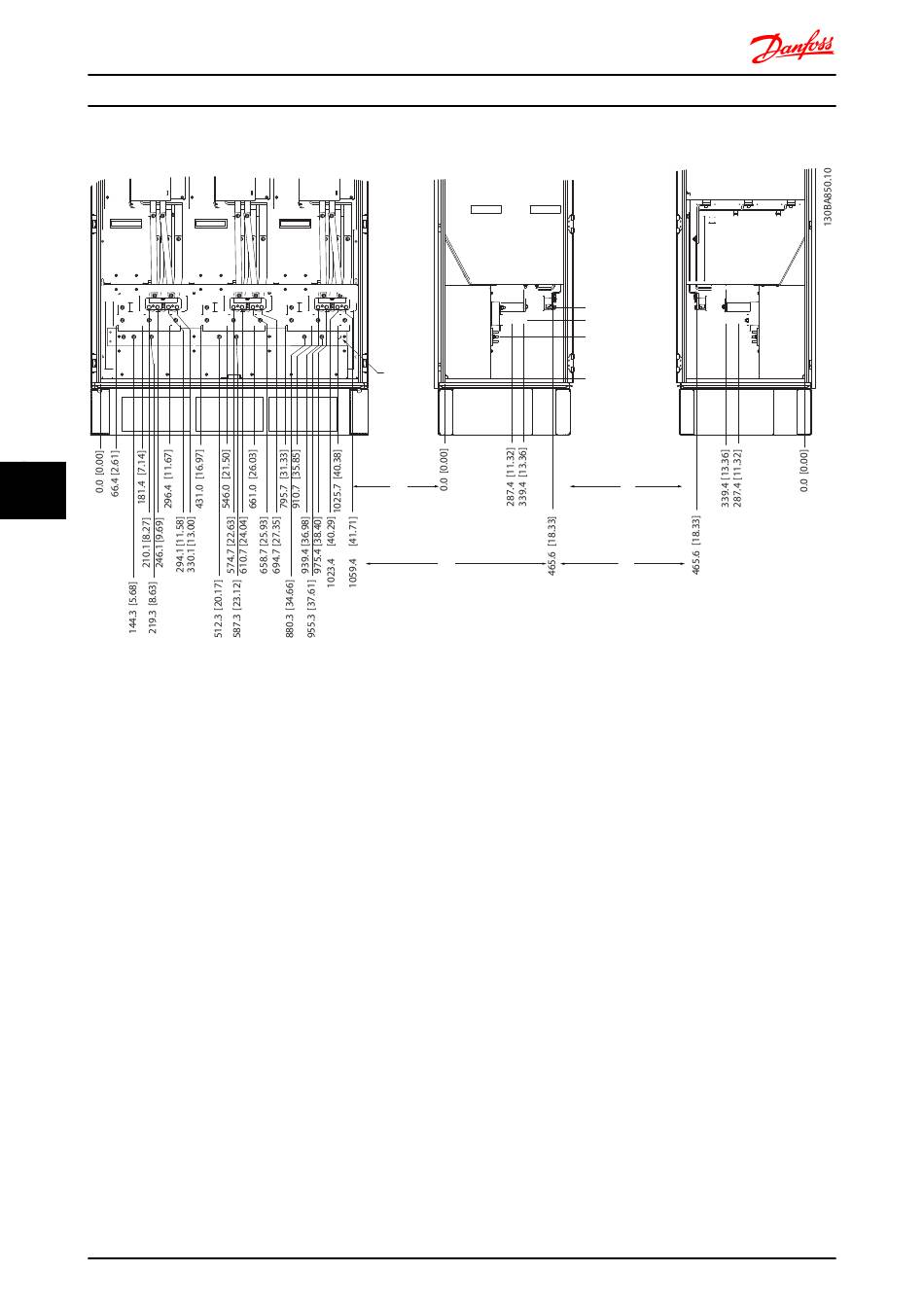

Illustration 7.35 Terminal locations - Inverter Cabinet (front, left and right side view). The gland plate is 42mm below .0 level.
1) Earth ground bar
148
FC 300 Design Guide
FASTENER TORQUE: MIO 19 Nm (14 FT -LB) FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98 U/T1 96 V/T2 97 W/T3 98
MG.33.BD.02 - VLT
1
2
3
®
is a registered Danfoss trademark
308.3 [12.14]
253.1 [9.96]
180.3 [7.10]
0.0 [0.00]
2
3
