VLT AQUA Drive Design Guide

3.7. Options and Accessories

Danfoss offers a wide range of options and accessories for the VLT frequency converters.
3.7.1. Mounting of Option Modules in Slot B
The power to the frequency converter must be disconnected.
For A2 and A3 enclosures:
• Remove the LCP (Local Control Panel), the terminal cover, and the LCP frame from the frequency converter.
• Fit the MCB10x option card into slot B.
• Connect the control cables and relieve the cable by the enclosed cable strips.
Remove the knock out in the extended LCP frame delivered in the option set, so that the option will fit under the extended LCP frame.
• Fit the extended LCP frame and terminal cover.
• Fit the LCP or blind cover in the extended LCP frame.
• Connect power to the frequency converter.
• Set up the input/output functions in the corresponding parameters, as mentioned in the section
For B1, B2, C1 and C2 enclosures:
• Remove the LCP and the LCP cradle
• Fit the MCB 10x option card into slot B

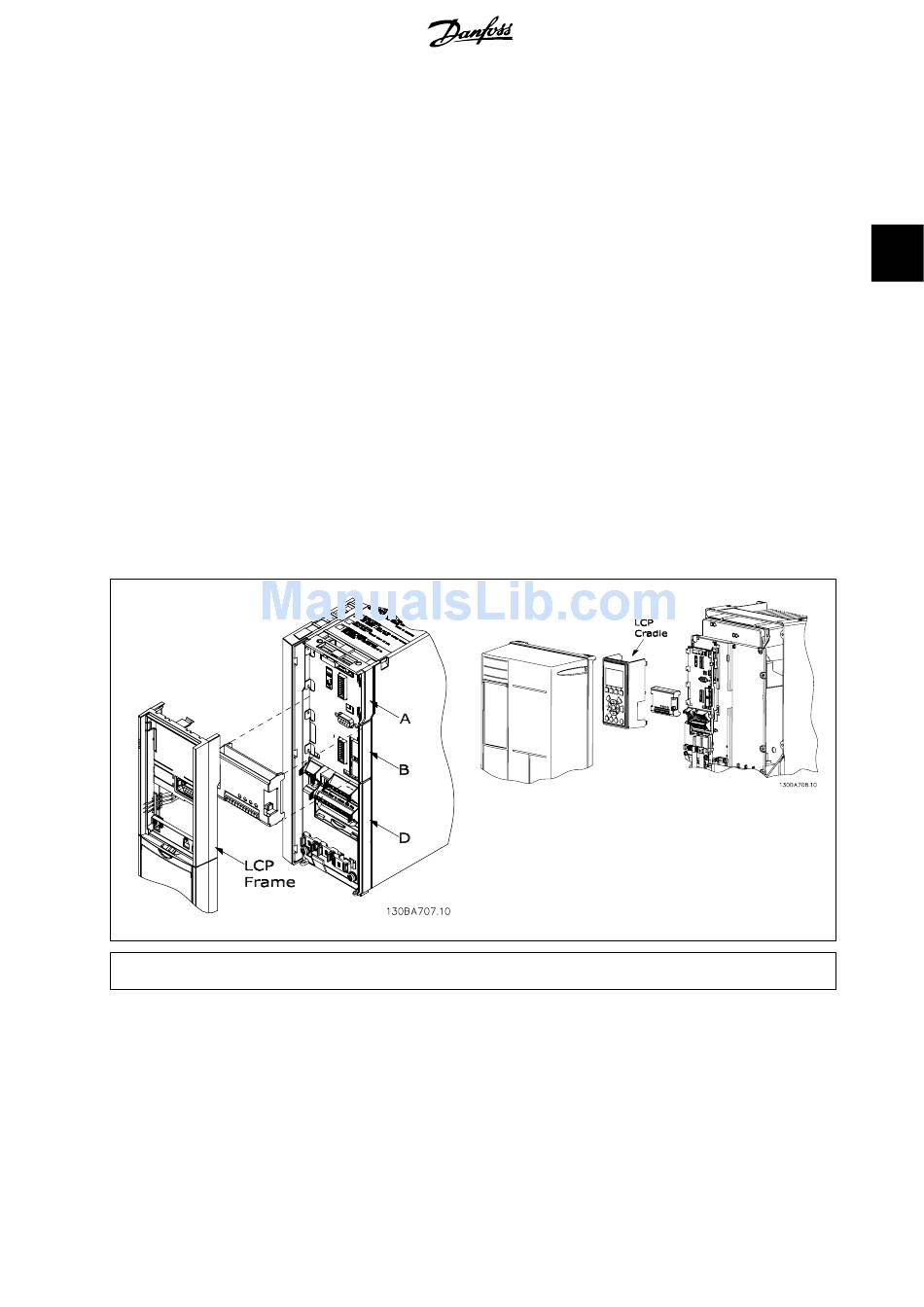

A2, A3 and B3 enclosures
3.7.2. General Purpose Input Output Module MCB 101
MCB 101 is used for extension of the number of digital and analog inputs
and outputs of the VLT AQUA Drive.
Contents: MCB 101 must be fitted into slot B in the VLT AQUA
Drive.
®
MG.20.N3.02 - VLT is a registered Danfoss trademark
General Technical Data
• Connect the control cables and relieve the cable by the enclosed
cable strips
• Fit the cradle
• Fit the LCP
A5, B1, B2, B4, C1, C2, C3 and C4 enclosures
• MCB 101 option module
• Extended LCP frame
• Terminal cover
