Options and Accessories

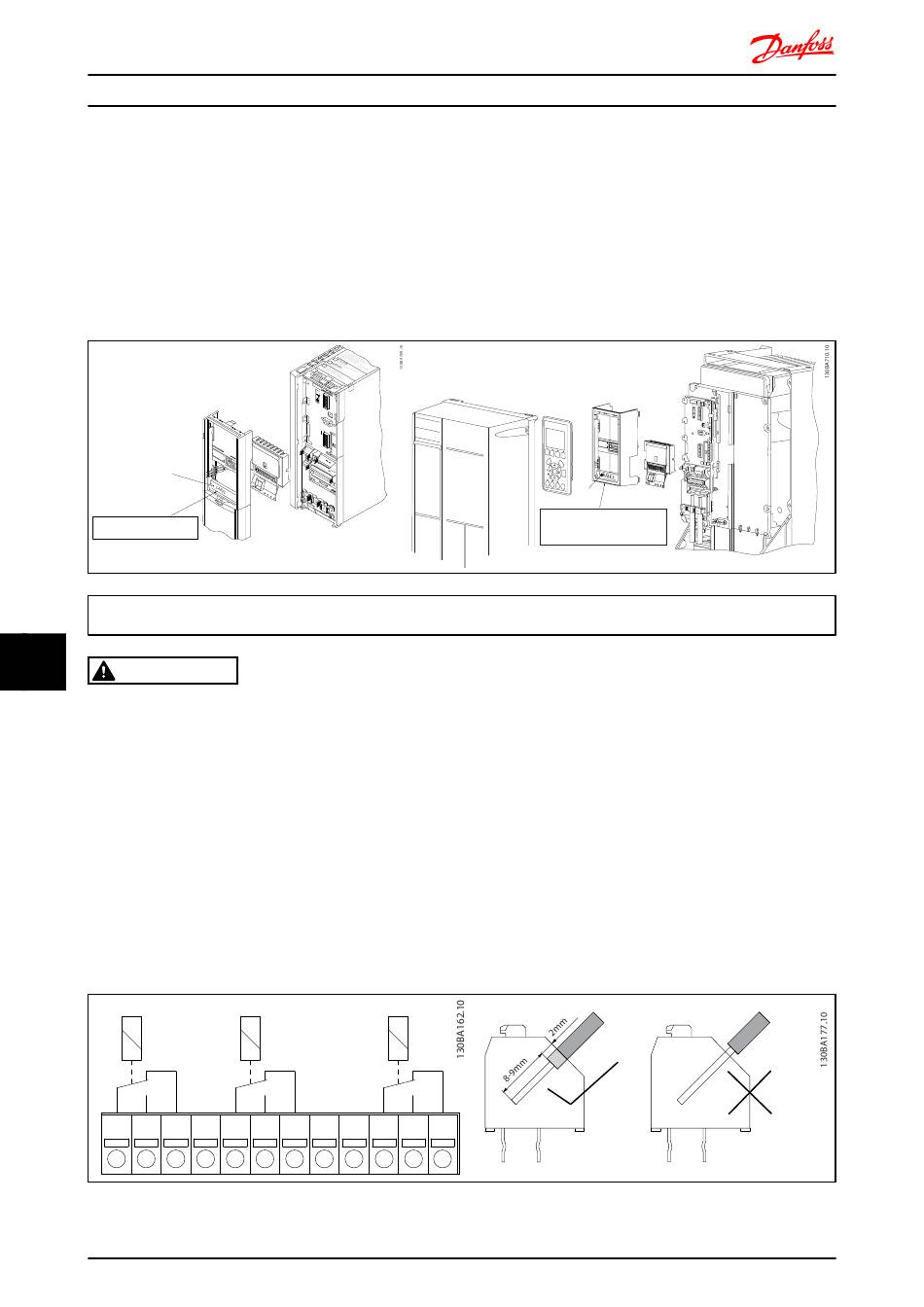

When the relay option kit is ordered separately the kit includes:
•
Relay Module MCB 105
•
Enlarged LCP fixture and enlarged terminal cover
•
Label for covering access to switches S201, S202 and S801
•
Cable strips for fastening cables to relay module
The relay option does not support FC 302 frequency
converters manufactured before week 50/2004.
DISMOUNT RELAY CARD TO ACCESS RS485
TERMINATION (S801) OR CURRENT/VOLTAGE
SWITCHES (S201, S202)
1)
IMPORTANT ! The label MUST be placed on the LCP frame as shown (UL approved).
10 10
WARNING
Warning Dual supply
How to add the MCB 105 option:
•
The power to the frequency converter must be
disconnected.
•
The power to the live part connections on relay
terminals must be disconnected.
•
Remove the LCP, the terminal cover and the LCP
fixture from the frequency converter.
•
Fit the MCB 105 option in slot B.
•
Connect the control cables and fasten the cables
with the enclosed cable strips.
•
Make sure the length of the stripped wire is
correct (see the following drawing).
Relay 7
1 2
242
1
A2-A3-B3
Relay 8
NC NC
3 4 5 6 7 8
MG.33.BD.02 - VLT
FC 300 Design Guide
Min. software version: 2.03 (15-43 Software Version).
•
•
•
•
•
NOTE
Array [6] is relay 7, array [7] is relay 8, and array [8] is relay
9
Relay 9
NC
9 10 11 12
®
is a registered Danfoss trademark
DC-
6
5
2
1
DISMOUNT RELAY CARD TO ACCESS RS485
TERMINATION (S801) OR CURRENT/VOLTAGE
SWITCHES (S201, S202)
A5-B1-B2-B4-C1-C2-C3-C4
Do not mix live parts (high voltage) with control
signals (PELV).
Fit the enlarged LCP fixture and enlarged
terminal cover.
Replace the LCP.
Connect power to the frequency converter.
Select the relay functions in 5-40 Function Relay
[6-8], 5-41 On Delay, Relay [6-8] and 5-42 Off
Delay, Relay [6-8].
DC+
