Options and Accessories

10.3 Encoder Option MCB 102

The encoder module can be used as feedback source for
closed loop Flux control (1-02 Flux Motor Feedback Source)
as well as closed loop speed control (7-00 Speed PID
Feedback Source). Configure encoder option in parameter
group 17-xx
Used for
•
plus
VVC closed loop
•
Flux Vector Speed control
•
Flux Vector Torque control
•
Permanent magnet motor
Supported encoder types:
Incremental encoder: 5 V TTL type, RS422, max. frequency:
410kHz
Incremental encoder: 1Vpp, sine-cosine
Hiperface® Encoder: Absolute and Sine-Cosine (Stegmann/
SICK)

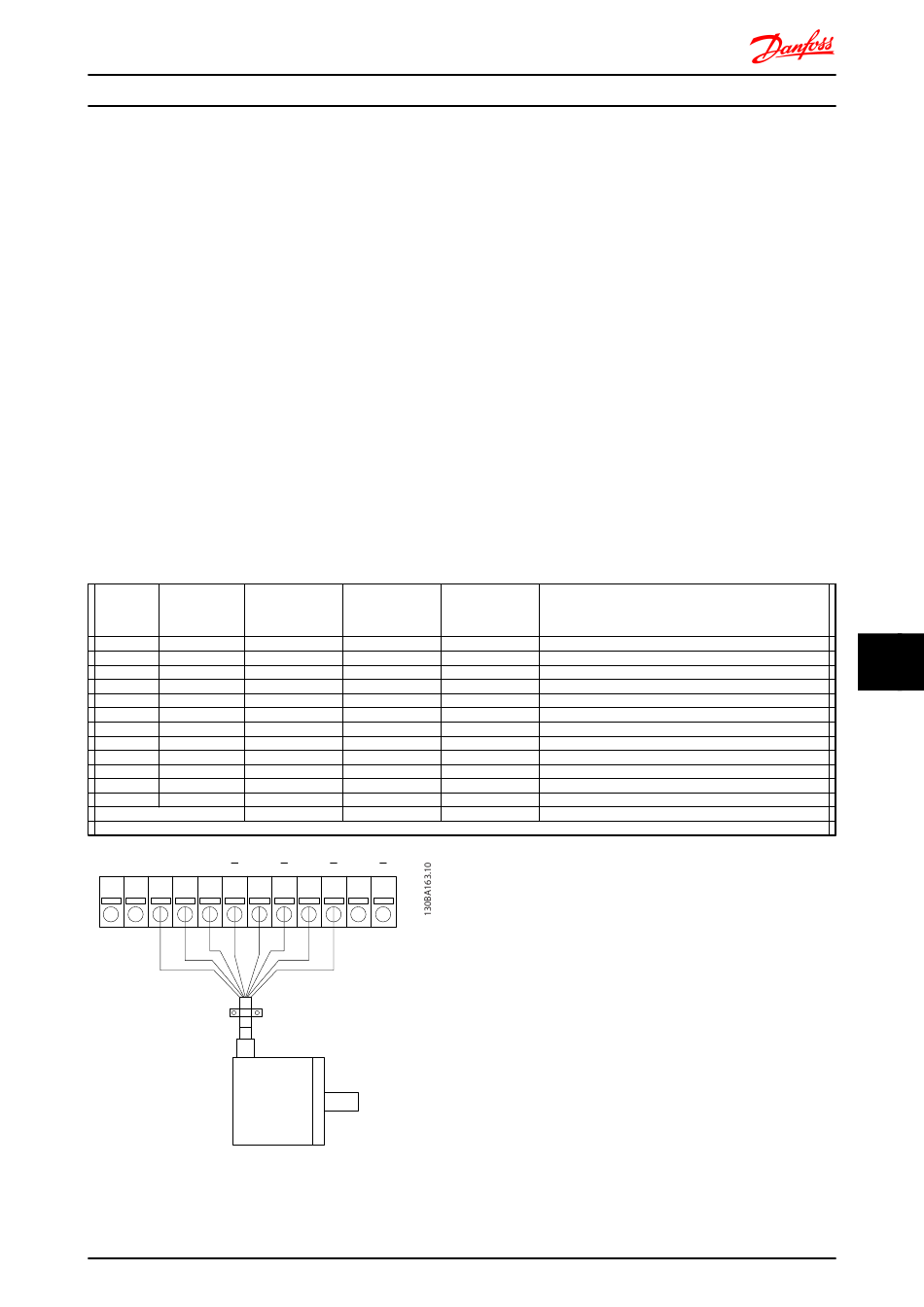

Connector Incremental SinCos Encoder
Designation Encoder (please Hiperface® (please
X31 refer to Graphic refer to Graphic B)
A)
1 NC
2 NC 8 Vcc
3 5 VCC
4 GND
5 A input +COS
6 A inv input REFCOS
7 B input +SIN
8 B inv input REFSIN
9 Z input +Data RS-485
10 Z inv input -Data RS-485
11 NC NC
12 NC NC
Max. 5V on X31.5-12
* Supply for encoder: see data on encoder
24V 8V 5V GND A A B
1 2 3 4 5 6 7
5V incremental encoder
Max. cable length 150 m.
FC 300 Design Guide
EnDat Encoder SSI Encoder
24V*
5 Vcc 5V*
GND GND
+COS
REFCOS
+SIN
REFSIN
Clock out Clock out
Clock out inv. Clock out inv.
Data in Data in
Data in inv. Data in inv.
B Z Z D D
8 9 10 11 12
®
MG.33.BD.02 - VLT is a registered Danfoss trademark
EnDat encoder: Absolute and Sine-Cosine (Heidenhain)
Supports version 2.1
SSI encoder: Absolute
Encoder monitor:
The 4 encoder channels (A, B, Z, and D) are monitored,
open and short circuit can be detected. There is a green
LED for each channel which lights up when the channel is
OK.
NOTE
The LEDs are only visible when removing the LCP. Reaction
in case of an encoder error can be selected in
17-61 Feedback Signal Monitoring: None, Warning or Trip.
When the encoder option kit is ordered separately the kit
includes:
•
Encoder Option MCB 102
•
Enlarged LCP fixture and enlarged terminal cover
The encoder option does not support FC 302 frequency
converters manufactured before week 50/2004.
Min. software version: 2.03 (15-43 Software Version)
Description
24V Output (21-25V, I
max
8V Output (7-12V, I : 200mA)
max
5V Output (5V ± 5%, I
max
GND
A input
A inv input
B input
B inv input
Z input OR +Data RS-485
Z input OR -Data RS-485
Future use
Future use
:125mA)
: 200mA)
239
