Mechanical Installation - ...
Terminal locations - Options Cabinet with circuit breaker/ molded case switch (F3 and F4)

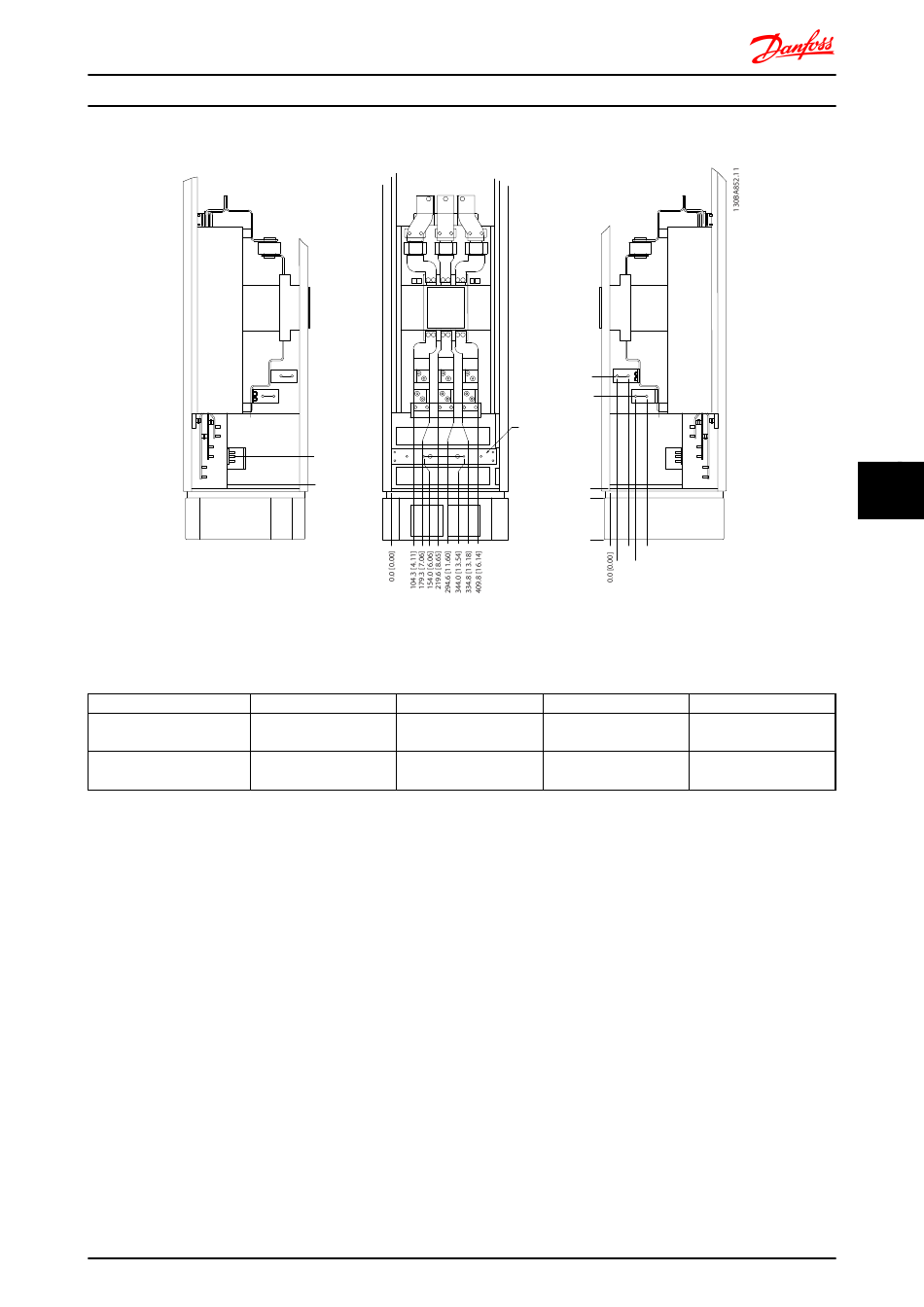

Illustration 7.32 Terminal locations - Options Cabinet with circuit breaker/ molded case switch (Left side, front and right side view). The
gland plate is 42mm below .0 level.
1) Earth ground bar
Power size
450kW (480V), 630-710kW
(690V)
500-800kW (480V),
800-1000kW (690V)
Table 7.2 Dimension for terminal
FC 300 Design Guide
134.6 [5.30]
0.0 [0.00]
2 3
34.9 86.9
46.3 98.3
®
