Electrical Installation
Screening of cables:
Avoid installation with twisted screen ends (pigtails). They
spoil the screening effect at higher frequencies. If it is
necessary to break the screen to install a motor isolator or
motor contactor, the screen must be continued at the
lowest possible HF impedance.
Connect the motor cable screen to both the de-coupling
plate of the frequency converter and to the metal housing
of the motor.
Make the screen connections with the largest possible
surface area (cable clamp). This is done by using the
Term. no.
1)
Protected Earth Connection
In motors without phase insulation paper or other
8 8 insulation reinforcement suitable for operation with
voltage supply (such as a frequency converter), fit a Sine-
wave filter on the output of the frequency converter.
182
FC 300 Design Guide
96 97 98
U V W
U1 V1 W1
W2 U2 V2
U1 V1 W1
MG.33.BD.02 - VLT
supplied installation devices within the frequency
converter.
Cable-length and cross-section:
The frequency converter has been EMC tested with a given
length of cable. Keep the motor cable as short as possible
to reduce the noise level and leakage currents.
Switching frequency:
When frequency converters are used together with Sine-
wave filters to reduce the acoustic noise from a motor, the
switching frequency must be set according to the
instruction in 14-01 Switching Frequency.
99

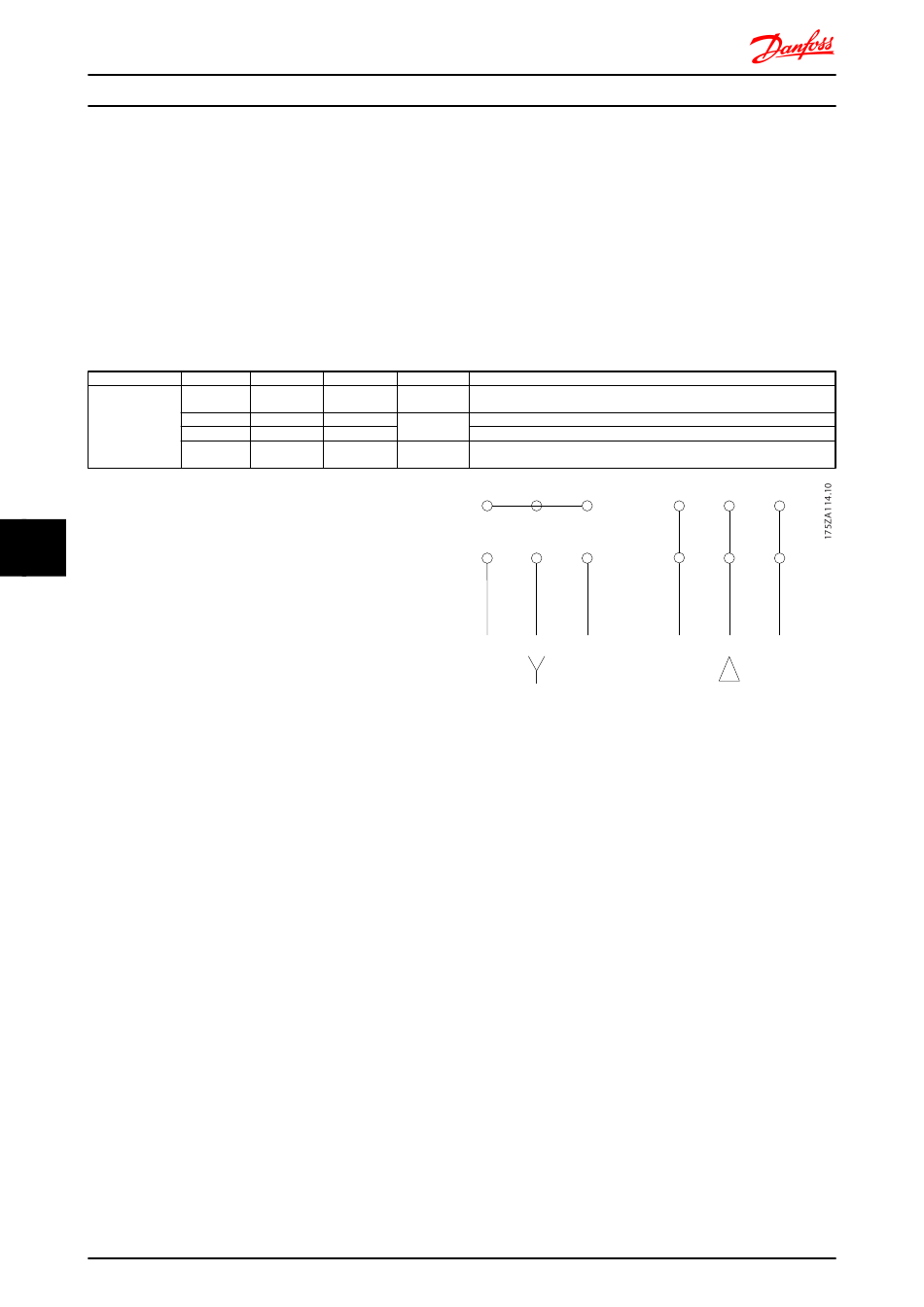

Motor voltage 0-100% of mains voltage.
PE 1)
3 wires out of motor
Delta-connected
1)
PE
6 wires out of motor
Star-connected U2, V2, W2
PE 1)
U2, V2 and W2 to be interconnected separately.
U V W
96 97 98
®
