Danfoss VLT AutomationDrive Design Manual page 144

Mechanical Installation - ...
Terminal locations - Frame size F2 and F4
FASTENER TORQUE: MIO 19 Nm (14 FT -LB) FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98 U/T1 96 V/T2 97 W/T3 98

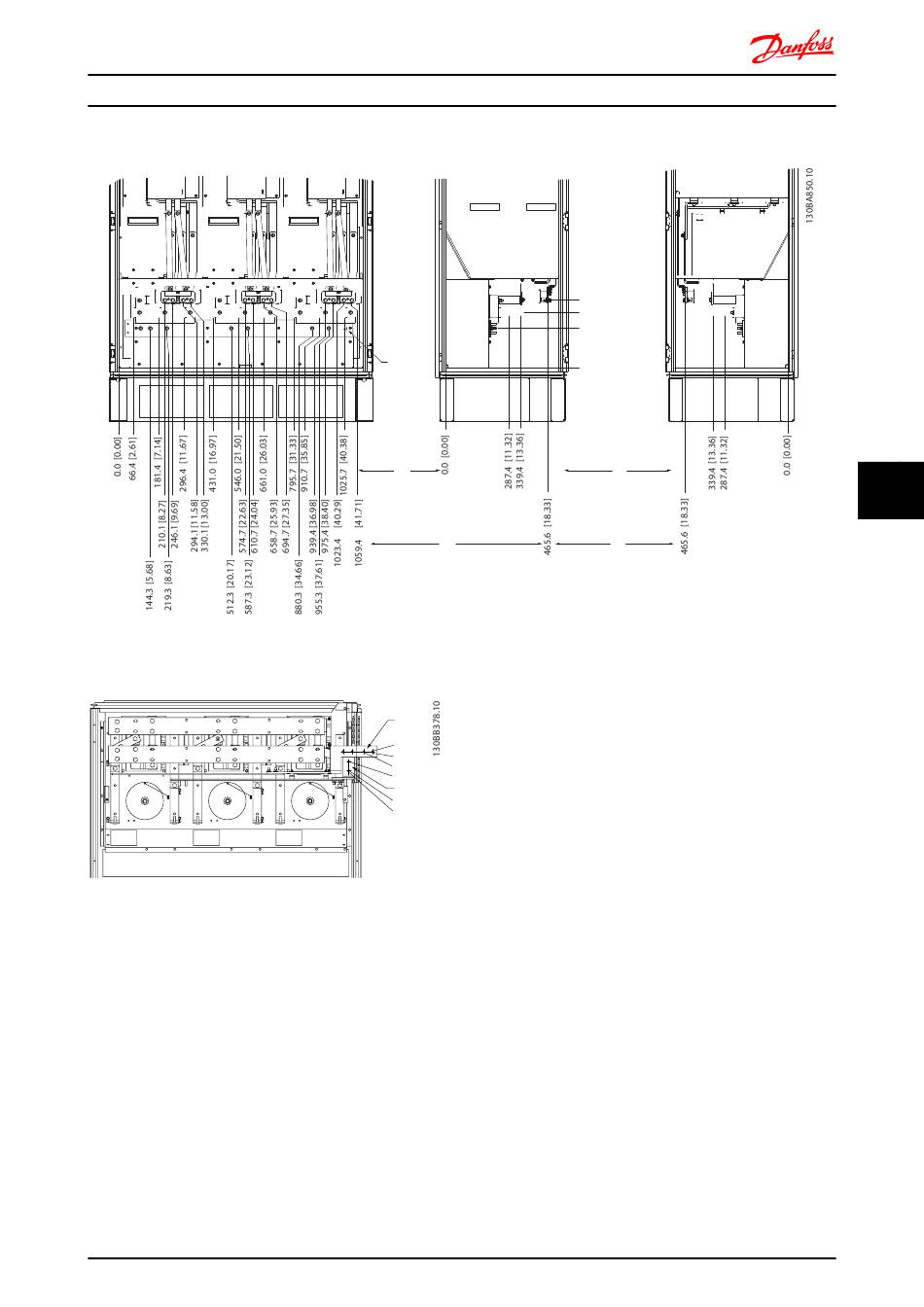

Illustration 7.28 Terminal locations - Inverter Cabinet - F2 and F4 (front, left and right side view). The gland plate is 42mm below .0 level.
1) Earth ground bar
Illustration 7.29 Terminal Locations - Regen Terminals - F2 and
F4
FC 300 Design Guide
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
1
2
3
DC '-'
1739.1
1203.2
1163.2
1694.1
DC '+'
1654.1
1098.1
®
MG.33.BD.02 - VLT is a registered Danfoss trademark
308.3 [12.14]
253.1 [9.96]
180.3 [7.10]
0.0 [0.00]
2
3
7 7
