Electrical Installation

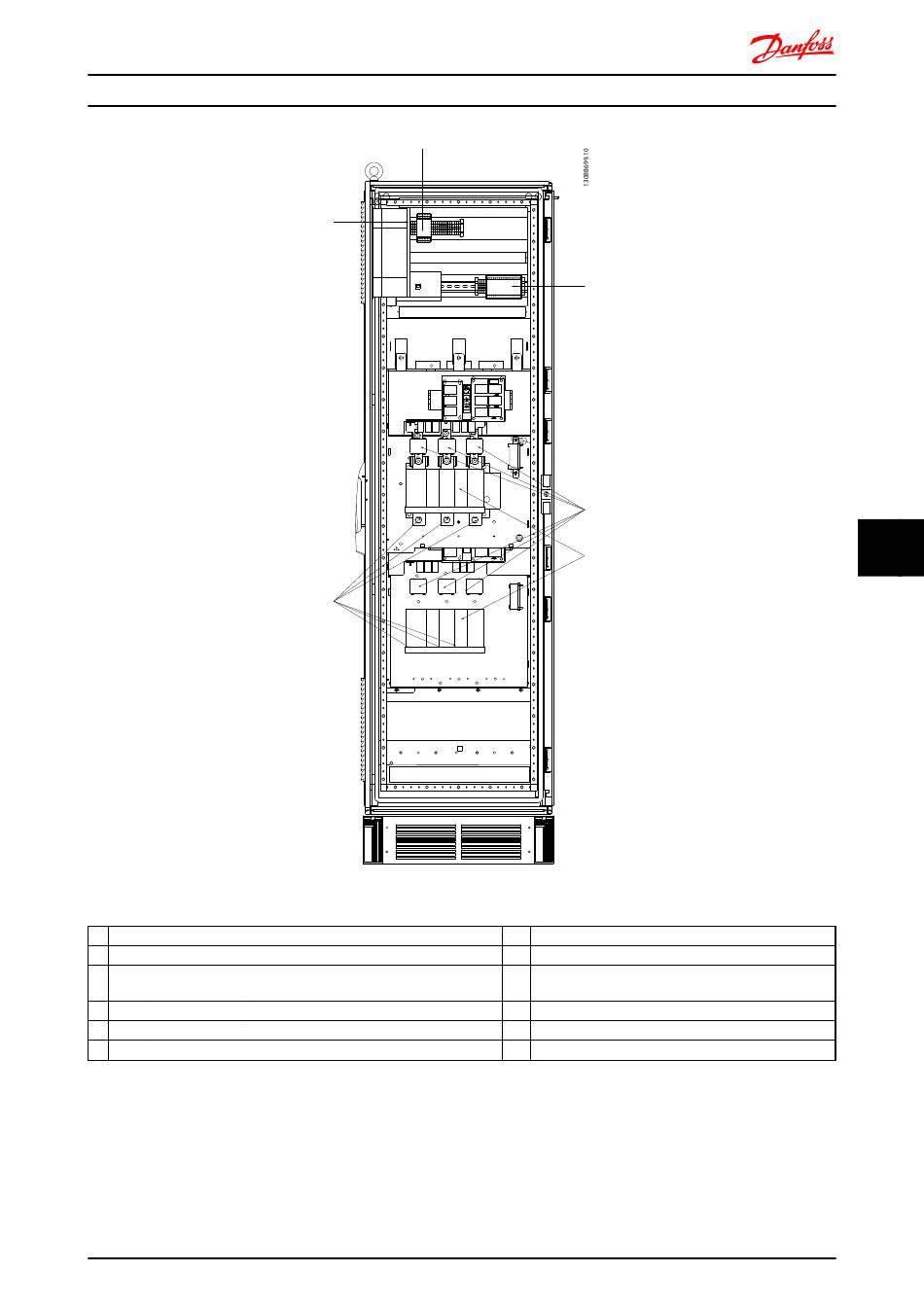

Illustration 8.48 Options Cabinet, frame size F9
1) Pilz Relay Terminal
2) RCD or IRM Terminal
3) Mains/6 phase
R1 S1 T1 R2 S2
91-1 92-1 93-1 91-2 92-2 93-2
L1-1 L2-1 L3-1 L1-2 L2-2 L3-2
FC 300 Design Guide
1
4
CFD30J3
R/L1 91 S/L2 92
3
R/L1 91 S/L2 92
T2
®
MG.33.BD.02 - VLT is a registered Danfoss trademark
2
T/L3 93
5
6
T/L3 93
4) Safety Relay Coil Fuse with Pilz Relay
See fuse tables for part numbers
5) Line Fuses, (6 pieces)
See fuse tables for part numbers
6) 2 x 3-phase manual disconnect
