Options and Accessories

10.8 MCB 113 Extended Relay Card

The MCB 113 adds 7 digital inputs, 2 analogue outputs
and 4 SPDT relays to the standard I/O of the drive for
increased flexibility and to comply with the German
NAMUR NE37 recommendations.
The MCB 113 is a standard C1-option for the Danfoss VLT®
AutomationDrive and is automatically detected after
mounting.
For information on mounting and installation of the
option, please see Mounting of Option Modules in Slot C1
earlier in this chapter
1 2 3 4 1
X45/ X48/

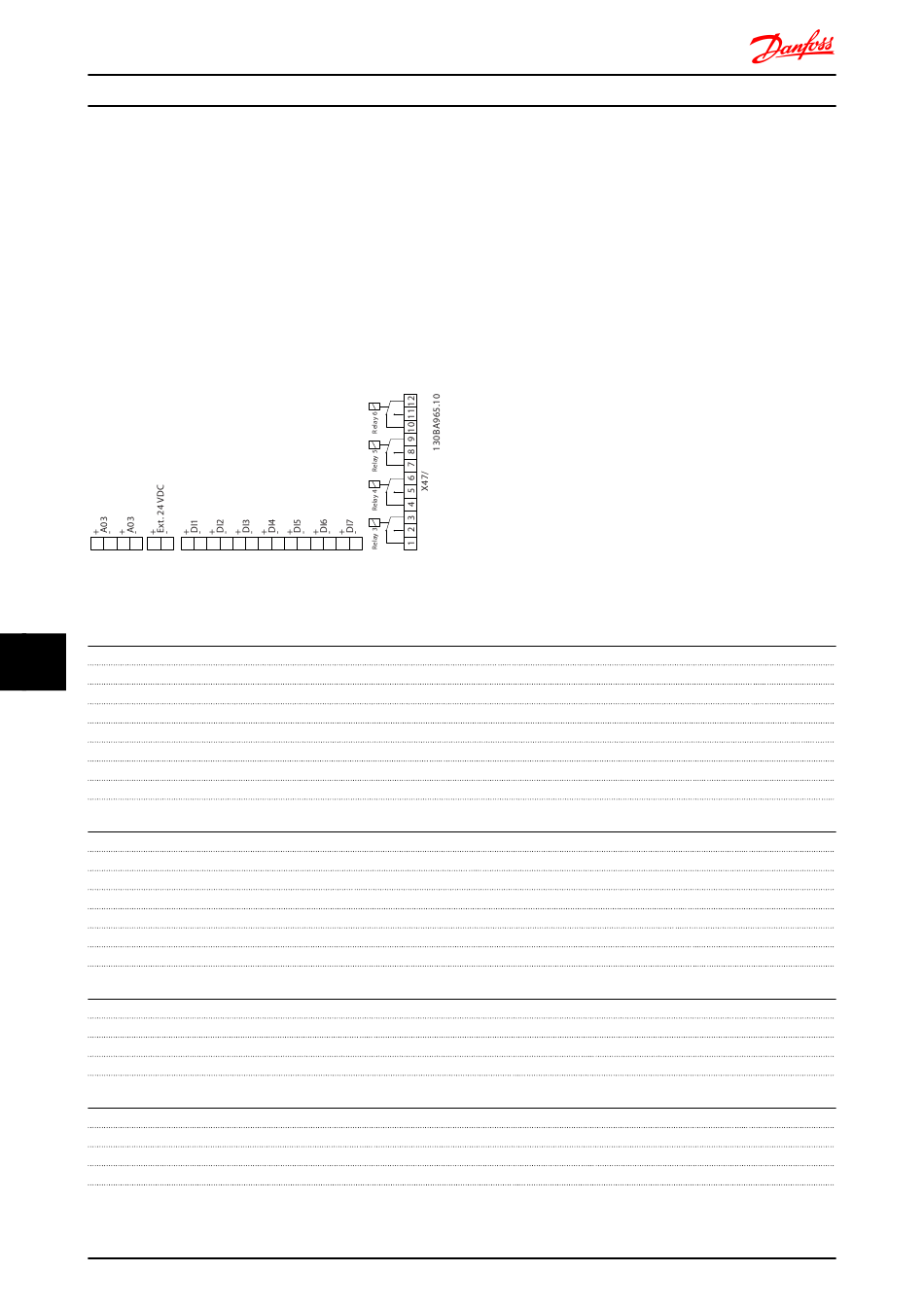

Illustration 10.9 Electrical connections of MCB 113
Relays:
10 10
Numbers
Load at 250V AC/ 30V DC
Load at 250V AC/ 30V DC with cos = 0.4
Over voltage category (contact-earth)
Over voltage category (contact-contact)
Combination of 250V and 24V signals
Maximum thru-put delay
Isolated from ground/ chassis for use on IT mains systems
Digital Inputs:
Numbers
Range
Mode
Input impedance
Low trigger level
High trigger level
Maximum thru-put delay
Analogue Outputs:
Numbers
Range
Resolution
Linearity
Analogue Outputs:
Numbers
Range
Resolution
Linearity
246
2 1 2 3 4 5 6 7 8 9 10 11 12 13 14
X46/
MG.33.BD.02 - VLT
FC 300 Design Guide
MCB 113 can be connected to an external 24V on X58/ in
order to ensure galvanical isolation between the VLT
AutomationDrive and the option card. If galvanical
isolation is not needed, the option card can be supplied
through internal 24V from the drive.
NOTE
It is OK to combine 24V signals with high voltage signals
in the relays as long as there is one unused relay in-
between.
To setup MCB 113, use parameter groups 5-1* (Digital
input), 6-7* (Analog output 3), 6-8* (Analog output 4),
14-8* (Options), 5-4* (Relays) and 16-6* (Inputs and
Outputs).
NOTE
In par. 5-4* Array [2] is relay 3, array [3] is relay 4, array [4]
is relay 5 and array [5] is relay 6
Electrical Data
®
is a registered Danfoss trademark
Possible with one unused relay in-between
®
4 SPDT
8A
3.5A
III
II
10ms
7
0/24V
PNP/ NPN
4kW
6.4V
17V
10ms
2
0/4 -20mA
11bit
<0.2%
2
0/4 -20mA
11bit
<0.2%
