Electrical Installation
1
2
3
4
5

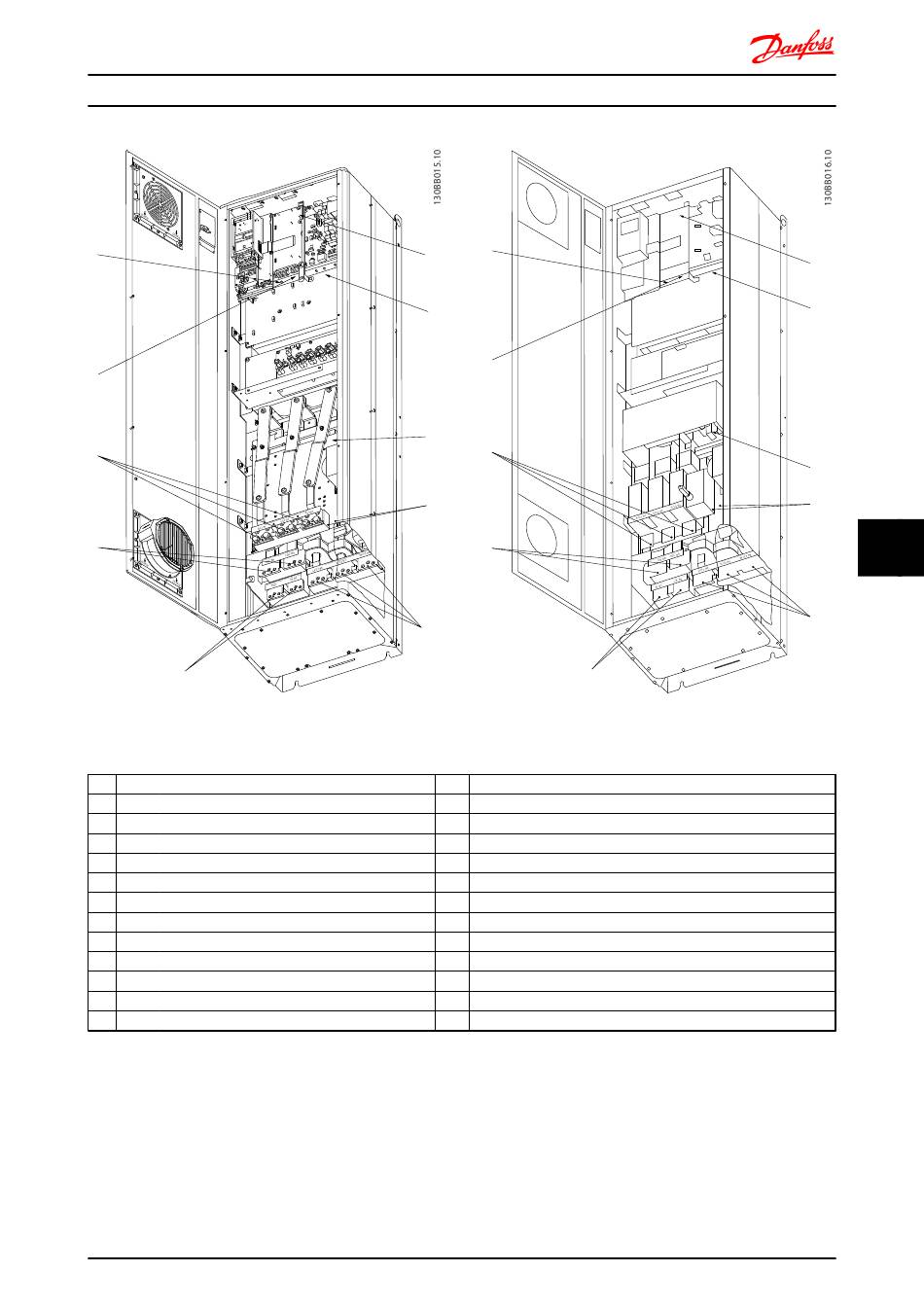

Illustration 8.30 Compact IP21 (NEMA 1) and IP54 (NEMA 12),
frame size D1
1) AUX Relay
01 02 03
04 05 06
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Load sharing
-DC +DC
88 89
FC 300 Design Guide
1
6
7
2
8
3
9
4
10
Illustration 8.31 Compact IP21 (NEMA 1) and IP54 (NEMA 12)
with disconnect, fuse and RFI filter, frame size D2
5) Brake
-R
81
6) SMPS Fuse (see fuse tables for part number)
7) AUX Fan
100
L1
8) Fan Fuse (see fuse tables for part number)
9) Mains ground
10) Motor
U
96
T1
®
MG.33.BD.02 - VLT is a registered Danfoss trademark
5
+R
82
101 102 103
L2 L1 L2
V W
97 98
T2 T3
6
7
8
9
8 8
10
