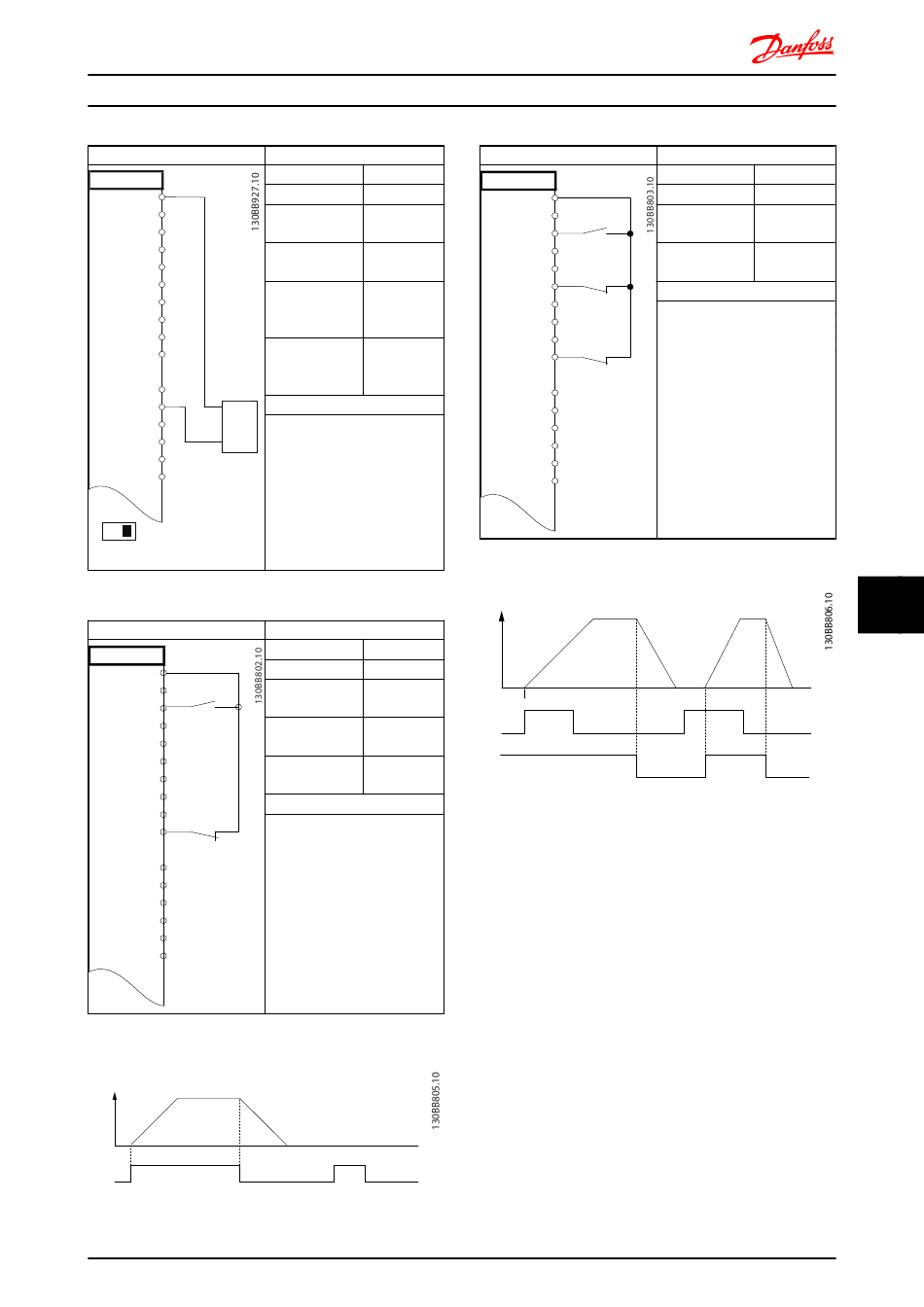

Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 9.4 Analog Speed Reference (Current)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 9.5 Start/Stop Command with Safe Stop
Speed
Start [18]
FC 300 Design Guide
Parameters
Function Setting
6-12 Terminal 53 4mA*
Low Current
6-13 Terminal 53 20mA*
High Current
6-14 Terminal 53 0RPM
Low Ref./Feedb.
Value
6-15 Terminal 53 1500RPM
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [0] No
Digital Input operation
5-19 Terminal 37 [1] Safe Stop
Safe Stop Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
®
MG.33.BD.02 - VLT is a registered Danfoss trademark
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
32
D IN
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 9.6 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Parameters
Function Setting
5-10 Terminal 18 [9] Latched
Digital Input Start
5-12 Terminal 27 [6] Stop
Digital Input Inverse
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
